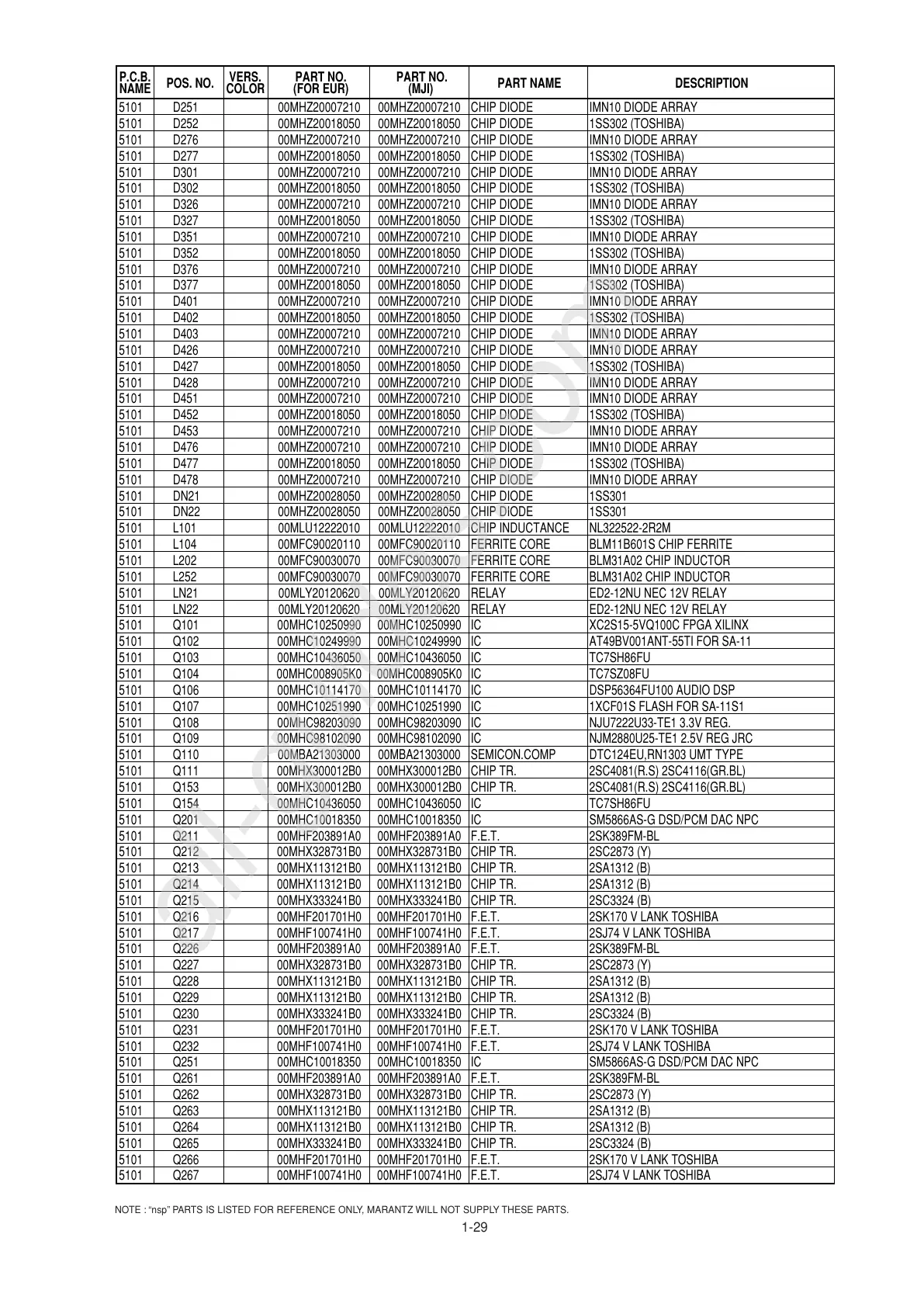

Marantz SA-11S1 - Page 31

1-29
NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
DESCRIPTION
5101 D251 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D252 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D276 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D277 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D301 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D302 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D326 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D327 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D351 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D352 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D376 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D377 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D401 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D402 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D403 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D426 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D427 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D428 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D451 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D452 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D453 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D476 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 D477 00MHZ20018050 00MHZ20018050 CHIP DIODE 1SS302
(
TOSHIBA
)
5101 D478 00MHZ20007210 00MHZ20007210 CHIP DIODE IMN10 DIODE ARRAY
5101 DN21 00MHZ20028050 00MHZ20028050 CHIP DIODE 1SS301
5101 DN22 00MHZ20028050 00MHZ20028050 CHIP DIODE 1SS301
5101 L101 00MLU12222010 00MLU12222010 CHIP INDUCTANCE NL322522-2R2M
5101 L104 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
5101 L202 00MFC90030070 00MFC90030070 FERRITE CORE BLM31A02 CHIP INDUCTOR
5101 L252 00MFC90030070 00MFC90030070 FERRITE CORE BLM31A02 CHIP INDUCTOR
5101 LN21 00MLY20120620 00MLY20120620 RELAY ED2-12NU NEC 12V RELAY
5101 LN22 00MLY20120620 00MLY20120620 RELAY ED2-12NU NEC 12V RELAY
5101 Q101 00MHC10250990 00MHC10250990 IC XC2S15-5VQ100C FPGA XILINX
5101 Q102 00MHC10249990 00MHC10249990 IC AT49BV001ANT-55TI FOR SA-11
5101 Q103 00MHC10436050 00MHC10436050 IC TC7SH86FU
5101 Q104 00MHC008905K0 00MHC008905K0 IC TC7SZ08FU
5101 Q106 00MHC10114170 00MHC10114170 IC DSP56364FU100 AUDIO DSP
5101 Q107 00MHC10251990 00MHC10251990 IC 1XCF01S FLASH FOR SA-11S1
5101 Q108 00MHC98203090 00MHC98203090 IC NJU7222U33-TE1 3.3V REG.
5101 Q109 00MHC98102090 00MHC98102090 IC NJM2880U25-TE1 2.5V REG JRC
5101 Q110 00MBA21303000 00MBA21303000 SEMICON.COMP DTC124EU,RN1303 UMT TYPE
5101 Q111 00MHX300012B0 00MHX300012B0 CHIP TR. 2SC4081
(
R.S
)
2SC4116
(
GR.BL
)
5101 Q153 00MHX300012B0 00MHX300012B0 CHIP TR. 2SC4081
(
R.S
)
2SC4116
(
GR.BL
)
5101 Q154 00MHC10436050 00MHC10436050 IC TC7SH86FU
5101 Q201 00MHC10018350 00MHC10018350 IC SM5866AS-G DSD/PCM DAC NPC
5101 Q211 00MHF203891A0 00MHF203891A0 F.E.T. 2SK389FM-BL
5101 Q212 00MHX328731B0 00MHX328731B0 CHIP TR. 2SC2873
(
Y
)
5101 Q213 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q214 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q215 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q216 00MHF201701H0 00MHF201701H0 F.E.T. 2SK170 V LANK TOSHIBA
5101 Q217 00MHF100741H0 00MHF100741H0 F.E.T. 2SJ74 V LANK TOSHIBA
5101 Q226 00MHF203891A0 00MHF203891A0 F.E.T. 2SK389FM-BL
5101 Q227 00MHX328731B0 00MHX328731B0 CHIP TR. 2SC2873
(
Y
)
5101 Q228 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q229 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q230 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q231 00MHF201701H0 00MHF201701H0 F.E.T. 2SK170 V LANK TOSHIBA
5101 Q232 00MHF100741H0 00MHF100741H0 F.E.T. 2SJ74 V LANK TOSHIBA
5101 Q251 00MHC10018350 00MHC10018350 IC SM5866AS-G DSD/PCM DAC NPC
5101 Q261 00MHF203891A0 00MHF203891A0 F.E.T. 2SK389FM-BL
5101 Q262 00MHX328731B0 00MHX328731B0 CHIP TR. 2SC2873
(
Y
)
5101 Q263 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q264 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q265 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q266 00MHF201701H0 00MHF201701H0 F.E.T. 2SK170 V LANK TOSHIBA
5101 Q267 00MHF100741H0 00MHF100741H0 F.E.T. 2SJ74 V LANK TOSHIBA
P.C.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
PART NAME
