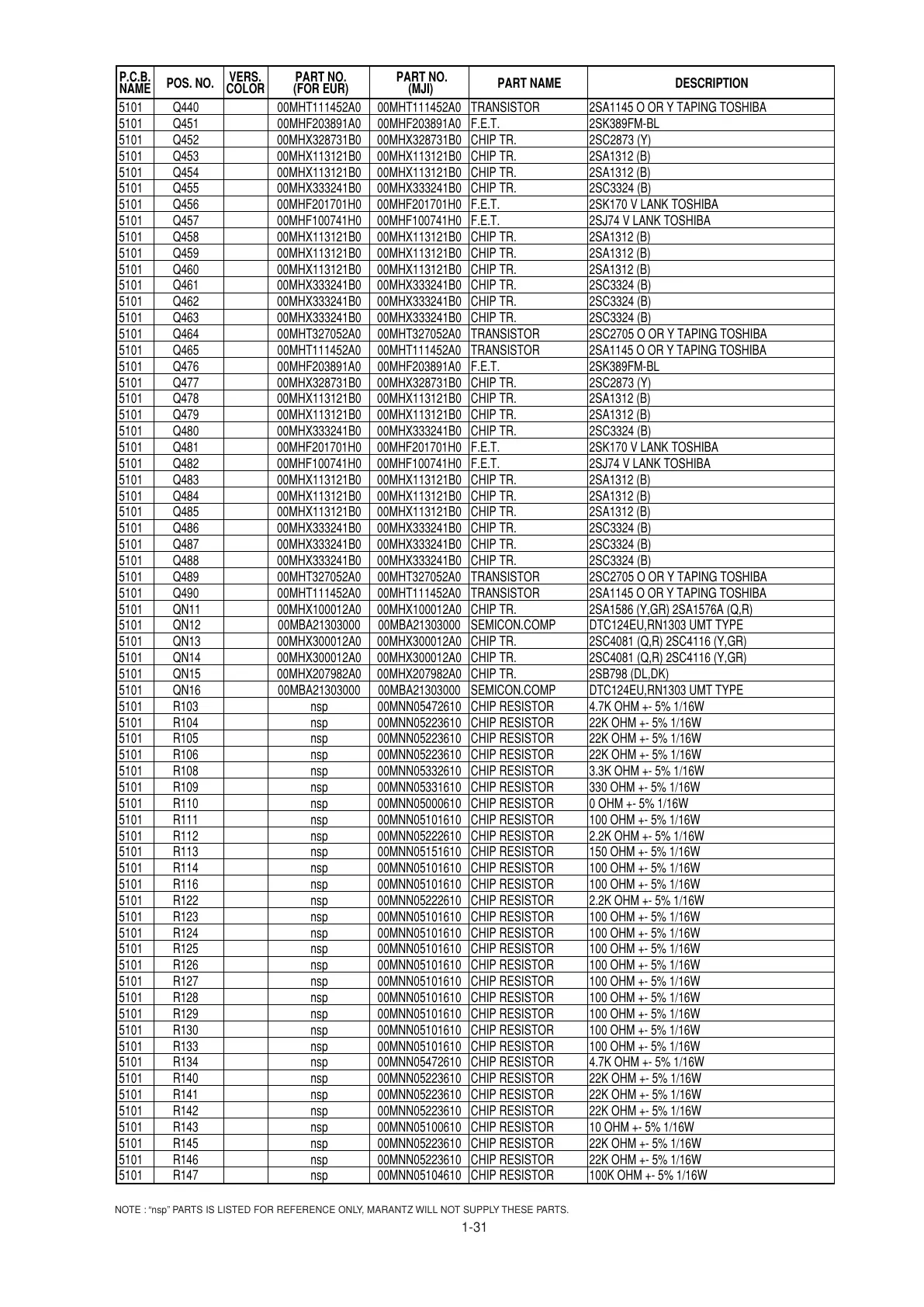

Marantz SA-11S1 - Page 33

1-31
NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
DESCRIPTION
5101 Q440 00MHT111452A0 00MHT111452A0 TRANSISTOR 2SA1145 O OR Y TAPING TOSHIBA
5101 Q451 00MHF203891A0 00MHF203891A0 F.E.T. 2SK389FM-BL
5101 Q452 00MHX328731B0 00MHX328731B0 CHIP TR. 2SC2873
(
Y
)
5101 Q453 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q454 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q455 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q456 00MHF201701H0 00MHF201701H0 F.E.T. 2SK170 V LANK TOSHIBA
5101 Q457 00MHF100741H0 00MHF100741H0 F.E.T. 2SJ74 V LANK TOSHIBA
5101 Q458 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q459 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q460 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q461 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q462 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q463 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q464 00MHT327052A0 00MHT327052A0 TRANSISTOR 2SC2705 O OR Y TAPING TOSHIBA
5101 Q465 00MHT111452A0 00MHT111452A0 TRANSISTOR 2SA1145 O OR Y TAPING TOSHIBA
5101 Q476 00MHF203891A0 00MHF203891A0 F.E.T. 2SK389FM-BL
5101 Q477 00MHX328731B0 00MHX328731B0 CHIP TR. 2SC2873
(
Y
)
5101 Q478 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q479 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q480 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q481 00MHF201701H0 00MHF201701H0 F.E.T. 2SK170 V LANK TOSHIBA
5101 Q482 00MHF100741H0 00MHF100741H0 F.E.T. 2SJ74 V LANK TOSHIBA
5101 Q483 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q484 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q485 00MHX113121B0 00MHX113121B0 CHIP TR. 2SA1312
(
B
)
5101 Q486 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q487 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q488 00MHX333241B0 00MHX333241B0 CHIP TR. 2SC3324
(
B
)
5101 Q489 00MHT327052A0 00MHT327052A0 TRANSISTOR 2SC2705 O OR Y TAPING TOSHIBA
5101 Q490 00MHT111452A0 00MHT111452A0 TRANSISTOR 2SA1145 O OR Y TAPING TOSHIBA
5101 QN11 00MHX100012A0 00MHX100012A0 CHIP TR. 2SA1586
(
Y,GR
)
2SA1576A
(
Q,R
)
5101 QN12 00MBA21303000 00MBA21303000 SEMICON.COMP DTC124EU,RN1303 UMT TYPE
5101 QN13 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5101 QN14 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5101 QN15 00MHX207982A0 00MHX207982A0 CHIP TR. 2SB798
(
DL,DK
)
5101 QN16 00MBA21303000 00MBA21303000 SEMICON.COMP DTC124EU,RN1303 UMT TYPE
5101 R103 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 R104 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R105 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R106 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R108 ns
p
00MNN05332610 CHIP RESISTOR 3.3K OHM +- 5% 1/16W
5101 R109 ns
p
00MNN05331610 CHIP RESISTOR 330 OHM +- 5% 1/16W
5101 R110 ns
p
00MNN05000610 CHIP RESISTOR 0 OHM +- 5% 1/16W
5101 R111 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R112 ns
p
00MNN05222610 CHIP RESISTOR 2.2K OHM +- 5% 1/16W
5101 R113 ns
p
00MNN05151610 CHIP RESISTOR 150 OHM +- 5% 1/16W
5101 R114 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R116 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R122 ns
p
00MNN05222610 CHIP RESISTOR 2.2K OHM +- 5% 1/16W
5101 R123 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R124 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R125 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R126 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R127 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R128 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R129 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R130 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R133 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R134 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 R140 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R141 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R142 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R143 ns
p
00MNN05100610 CHIP RESISTOR 10 OHM +- 5% 1/16W
5101 R145 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R146 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R147 ns
p
00MNN05104610 CHIP RESISTOR 100K OHM +- 5% 1/16W
P.C.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
PART NAME
