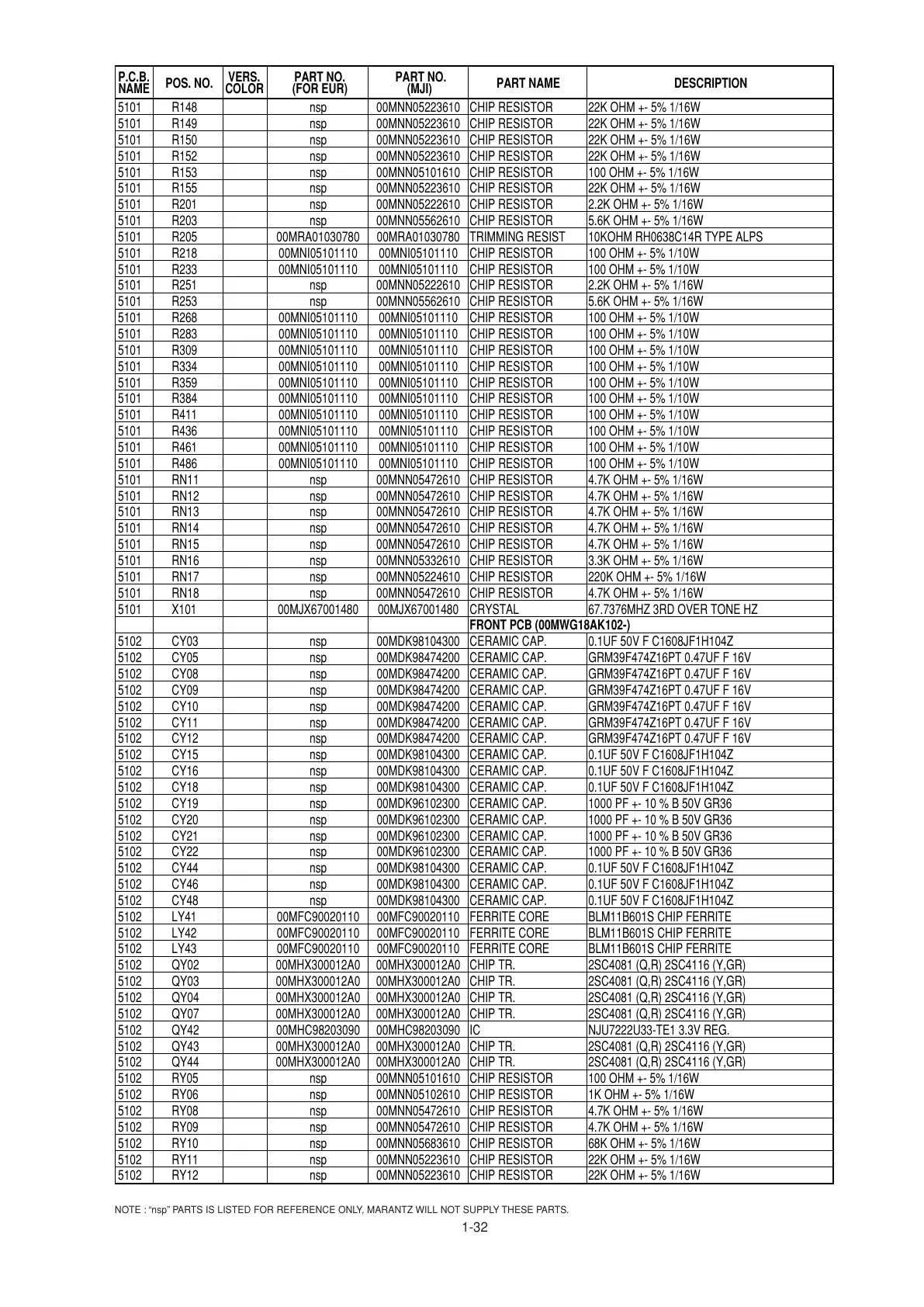

Marantz SA-11S1 - Page 34

1-32
NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
DESCRIPTION
5101 R148 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R149 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R150 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R152 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R153 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5101 R155 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5101 R201 ns
p
00MNN05222610 CHIP RESISTOR 2.2K OHM +- 5% 1/16W
5101 R203 ns
p
00MNN05562610 CHIP RESISTOR 5.6K OHM +- 5% 1/16W
5101 R205 00MRA01030780 00MRA01030780 TRIMMING RESIST 10KOHM RH0638C14R TYPE ALPS
5101 R218 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R233 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R251 ns
p
00MNN05222610 CHIP RESISTOR 2.2K OHM +- 5% 1/16W
5101 R253 ns
p
00MNN05562610 CHIP RESISTOR 5.6K OHM +- 5% 1/16W
5101 R268 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R283 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R309 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R334 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R359 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R384 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R411 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R436 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R461 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 R486 00MNI05101110 00MNI05101110 CHIP RESISTOR 100 OHM +- 5% 1/10W
5101 RN11 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 RN12 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 RN13 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 RN14 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 RN15 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 RN16 ns
p
00MNN05332610 CHIP RESISTOR 3.3K OHM +- 5% 1/16W
5101 RN17 ns
p
00MNN05224610 CHIP RESISTOR 220K OHM +- 5% 1/16W
5101 RN18 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5101 X101 00MJX67001480 00MJX67001480 CRYSTAL 67.7376MHZ 3RD OVER TONE HZ
FRONT PCB (00MWG18AK102-)
5102 CY03 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5102 CY05 ns
p
00MDK98474200 CERAMIC CAP. GRM39F474Z16PT 0.47UF F 16V
5102 CY08 ns
p
00MDK98474200 CERAMIC CAP. GRM39F474Z16PT 0.47UF F 16V
5102 CY09 ns
p
00MDK98474200 CERAMIC CAP. GRM39F474Z16PT 0.47UF F 16V
5102 CY10 ns
p
00MDK98474200 CERAMIC CAP. GRM39F474Z16PT 0.47UF F 16V
5102 CY11 ns
p
00MDK98474200 CERAMIC CAP. GRM39F474Z16PT 0.47UF F 16V
5102 CY12 ns
p
00MDK98474200 CERAMIC CAP. GRM39F474Z16PT 0.47UF F 16V
5102 CY15 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5102 CY16 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5102 CY18 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5102 CY19 ns
p
00MDK96102300 CERAMIC CAP. 1000 PF +- 10 % B 50V GR36
5102 CY20 ns
p
00MDK96102300 CERAMIC CAP. 1000 PF +- 10 % B 50V GR36
5102 CY21 ns
p
00MDK96102300 CERAMIC CAP. 1000 PF +- 10 % B 50V GR36
5102 CY22 ns
p
00MDK96102300 CERAMIC CAP. 1000 PF +- 10 % B 50V GR36
5102 CY44 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5102 CY46 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5102 CY48 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5102 LY41 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
5102 LY42 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
5102 LY43 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE
5102 QY02 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5102 QY03 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5102 QY04 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5102 QY07 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5102 QY42 00MHC98203090 00MHC98203090 IC NJU7222U33-TE1 3.3V REG.
5102 QY43 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5102 QY44 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5102 RY05 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5102 RY06 ns
p
00MNN05102610 CHIP RESISTOR 1K OHM +- 5% 1/16W
5102 RY08 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5102 RY09 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5102 RY10 ns
p
00MNN05683610 CHIP RESISTOR 68K OHM +- 5% 1/16W
5102 RY11 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5102 RY12 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
