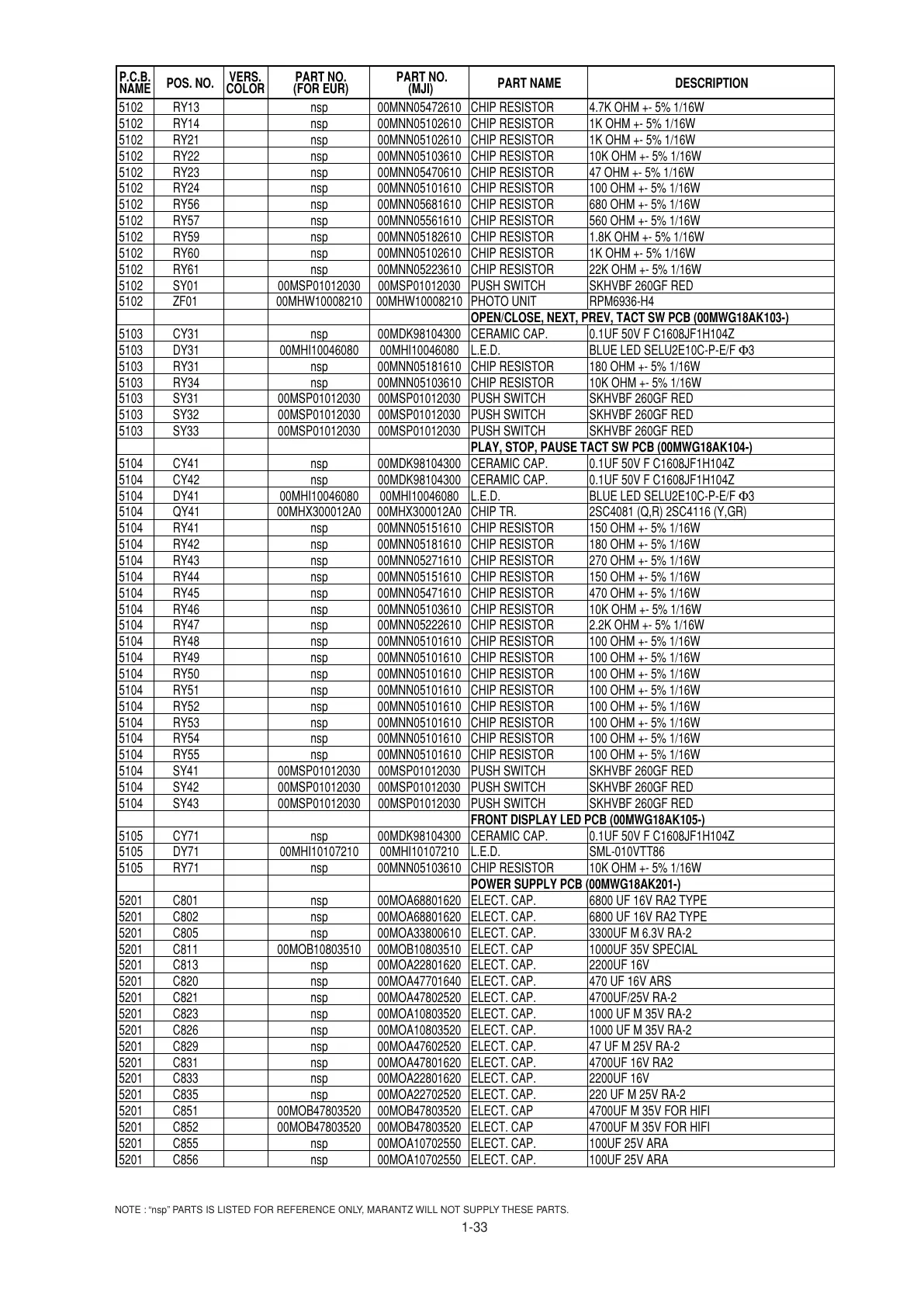

1-33
NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
DESCRIPTION
5102 RY13 ns
p
00MNN05472610 CHIP RESISTOR 4.7K OHM +- 5% 1/16W
5102 RY14 ns
p
00MNN05102610 CHIP RESISTOR 1K OHM +- 5% 1/16W
5102 RY21 ns
p
00MNN05102610 CHIP RESISTOR 1K OHM +- 5% 1/16W
5102 RY22 ns
p
00MNN05103610 CHIP RESISTOR 10K OHM +- 5% 1/16W
5102 RY23 ns
p
00MNN05470610 CHIP RESISTOR 47 OHM +- 5% 1/16W
5102 RY24 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5102 RY56 ns
p
00MNN05681610 CHIP RESISTOR 680 OHM +- 5% 1/16W
5102 RY57 ns
p
00MNN05561610 CHIP RESISTOR 560 OHM +- 5% 1/16W
5102 RY59 ns
p
00MNN05182610 CHIP RESISTOR 1.8K OHM +- 5% 1/16W
5102 RY60 ns
p
00MNN05102610 CHIP RESISTOR 1K OHM +- 5% 1/16W
5102 RY61 ns
p
00MNN05223610 CHIP RESISTOR 22K OHM +- 5% 1/16W
5102 SY01 00MSP01012030 00MSP01012030 PUSH SWITCH SKHVBF 260GF RED
5102 ZF01 00MHW10008210 00MHW10008210 PHOTO UNIT RPM6936-H4
OPEN/CLOSE, NEXT, PREV, TACT SW PCB (00MWG18AK103-)
5103 CY31 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5103 DY31 00MHI10046080 00MHI10046080 L.E.D.
BLUE LED SELU2E10C-P-E/F
Φ 3
5103 RY31 ns
p
00MNN05181610 CHIP RESISTOR 180 OHM +- 5% 1/16W
5103 RY34 ns
p
00MNN05103610 CHIP RESISTOR 10K OHM +- 5% 1/16W
5103 SY31 00MSP01012030 00MSP01012030 PUSH SWITCH SKHVBF 260GF RED
5103 SY32 00MSP01012030 00MSP01012030 PUSH SWITCH SKHVBF 260GF RED
5103 SY33 00MSP01012030 00MSP01012030 PUSH SWITCH SKHVBF 260GF RED
PLAY, STOP, PAUSE TACT SW PCB (00MWG18AK104-)
5104 CY41 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5104 CY42 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5104 DY41 00MHI10046080 00MHI10046080 L.E.D.
BLUE LED SELU2E10C-P-E/F
Φ 3
5104 QY41 00MHX300012A0 00MHX300012A0 CHIP TR. 2SC4081
(
Q,R
)
2SC4116
(
Y,GR
)
5104 RY41 ns
p
00MNN05151610 CHIP RESISTOR 150 OHM +- 5% 1/16W
5104 RY42 ns
p
00MNN05181610 CHIP RESISTOR 180 OHM +- 5% 1/16W
5104 RY43 ns
p
00MNN05271610 CHIP RESISTOR 270 OHM +- 5% 1/16W
5104 RY44 ns
p
00MNN05151610 CHIP RESISTOR 150 OHM +- 5% 1/16W
5104 RY45 ns
p
00MNN05471610 CHIP RESISTOR 470 OHM +- 5% 1/16W
5104 RY46 ns
p
00MNN05103610 CHIP RESISTOR 10K OHM +- 5% 1/16W
5104 RY47 ns
p
00MNN05222610 CHIP RESISTOR 2.2K OHM +- 5% 1/16W
5104 RY48 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 RY49 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 RY50 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 RY51 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 RY52 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 RY53 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 RY54 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 RY55 ns
p
00MNN05101610 CHIP RESISTOR 100 OHM +- 5% 1/16W
5104 SY41 00MSP01012030 00MSP01012030 PUSH SWITCH SKHVBF 260GF RED
5104 SY42 00MSP01012030 00MSP01012030 PUSH SWITCH SKHVBF 260GF RED
5104 SY43 00MSP01012030 00MSP01012030 PUSH SWITCH SKHVBF 260GF RED
FRONT DISPLAY LED PCB (00MWG18AK105-)
5105 CY71 ns
p
00MDK98104300 CERAMIC CAP. 0.1UF 50V F C1608JF1H104Z
5105 DY71 00MHI10107210 00MHI10107210 L.E.D. SML-010VTT86
5105 RY71 ns
p
00MNN05103610 CHIP RESISTOR 10K OHM +- 5% 1/16W
POWER SUPPLY PCB (00MWG18AK201-)
5201 C801 ns
p
00MOA68801620 ELECT. CAP. 6800 UF 16V RA2 TYPE
5201 C802 ns
p
00MOA68801620 ELECT. CAP. 6800 UF 16V RA2 TYPE
5201 C805 ns
p
00MOA33800610 ELECT. CAP. 3300UF M 6.3V RA-2
5201 C811 00MOB10803510 00MOB10803510 ELECT. CAP 1000UF 35V SPECIAL
5201 C813 ns
p
00MOA22801620 ELECT. CAP. 2200UF 16V
5201 C820 ns
p
00MOA47701640 ELECT. CAP. 470 UF 16V ARS
5201 C821 ns
p
00MOA47802520 ELECT. CAP. 4700UF/25V RA-2
5201 C823 ns
p
00MOA10803520 ELECT. CAP. 1000 UF M 35V RA-2
5201 C826 ns
p
00MOA10803520 ELECT. CAP. 1000 UF M 35V RA-2
5201 C829 ns
p
00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2
5201 C831 ns
p
00MOA47801620 ELECT. CAP. 4700UF 16V RA2
5201 C833 ns
p
00MOA22801620 ELECT. CAP. 2200UF 16V
5201 C835 ns
p
00MOA22702520 ELECT. CAP. 220 UF M 25V RA-2
5201 C851 00MOB47803520 00MOB47803520 ELECT. CAP 4700UF M 35V FOR HIFI
5201 C852 00MOB47803520 00MOB47803520 ELECT. CAP 4700UF M 35V FOR HIFI
5201 C855 ns
p
00MOA10702550 ELECT. CAP. 100UF 25V ARA
5201 C856 ns
p
00MOA10702550 ELECT. CAP. 100UF 25V ARA
P.C.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
PART NAME
