Marantz SA17S1 - Taking the Disc out of Emergency

3
3. TAKING THE DISC OUT OF EMERGENCY
1. Remove 8 screws on the top cover and remove the top cover.
2. Remove 6 screws on the side panel and remove the side panel.
3. Remove Power SW. Link.

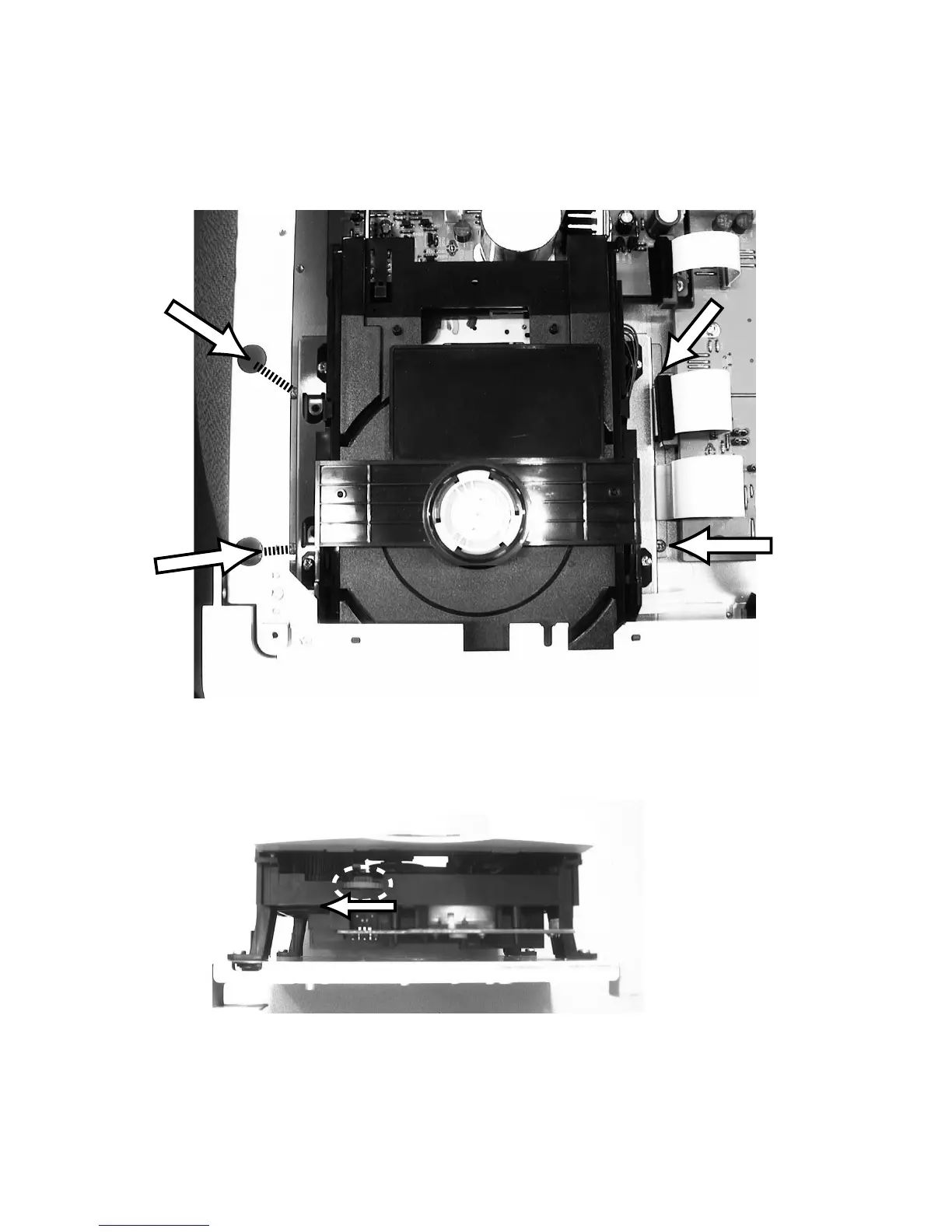

4. Remove 4 screws pointed with the arrows.
5. Disconnect all the wires at the right.
6. Remove the Mecha. component.
7. Turn the gear to the direction shown with your fi nger and disc tray will opened.
