4. CAUTION Optical pick up and Servo Board

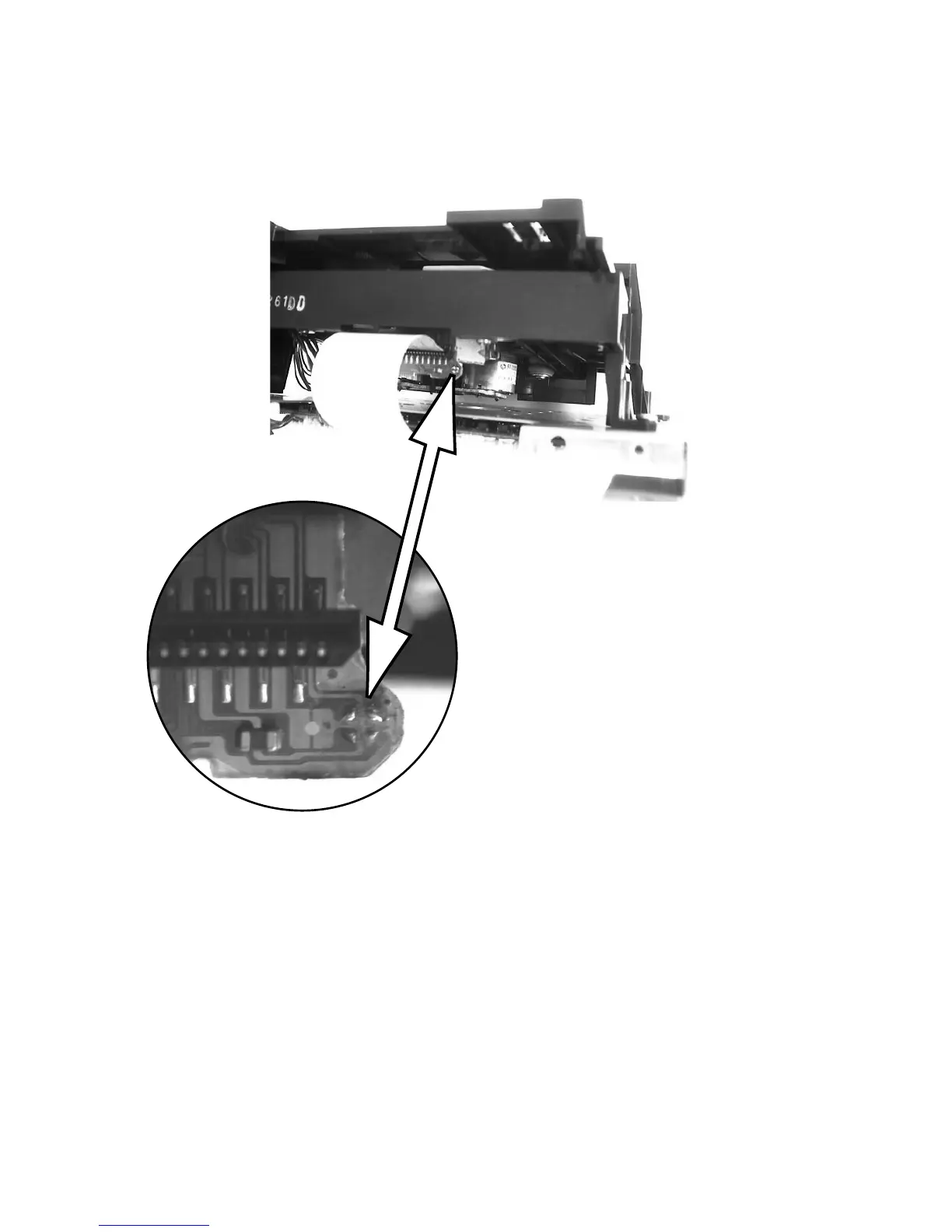

When removing the fl at wire between Optical pick up and Servo Board (PV16),
Solder the four lands pointed by arrows to short the circuit.
Otherwise the LASER DIODE may be damaged by static electricity.
