CONNECTING REMOTE CONTROL JACKS

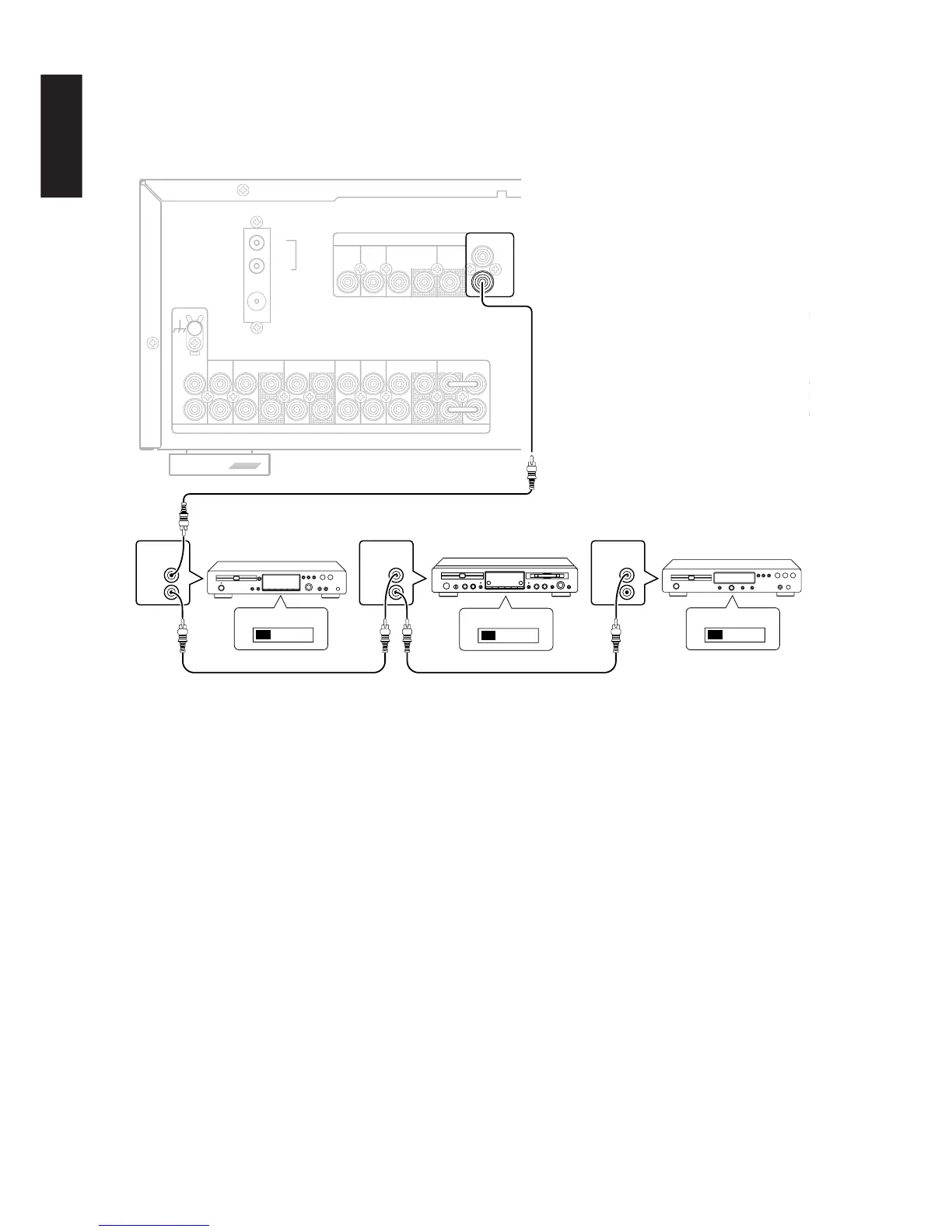

You can control other Marantz products through this unit with the remote control unit by connecting REMOTE CONTROL terminals on each unit.
The signal transmitted from the remote control unit is received by the remote sensor on this unit then the signal is sent to the connected device through
this terminal.
Therefore you need to aim the remote signal only to this unit.
Set the REMOTE CONTROL switch on the units other than this unit to EXT. (EXTERNAL) for this feature.
