HDMIPWB(CUP12207)、INPUTPWB(CUP12208)、
MAINPWB(CUP12206) を修理する場合、必要に応じて以
下のサービス用延長治具をご使用下さい。発注は SPC にご連
絡ください。
注意）
サービス用延長治具を間違った接続をすると故障する場合が
あります。
998619000470S:
extensionwireforSR6004/5004HDMIPWB:2 本
998619000480S:
extensionwireforSR6004/5004HDMIPWB:1 本
7. JIG FOR SERVICING s
When you repair the printing board, you can use the following
JIG (Extension cable kit). Please order to Marantz Official
Service. Distributor in your region if necessary.
Note:
When the connection which is wrong in the JIG (Exten-
sion cable kit) is done it becomes cause of damage.
998619000470S :
extension wire for SR6004/5004 HDMI PWB : 2 Set
998619000480S :
extension wire for SR6004/5004 INPUT PWB : 1 Set

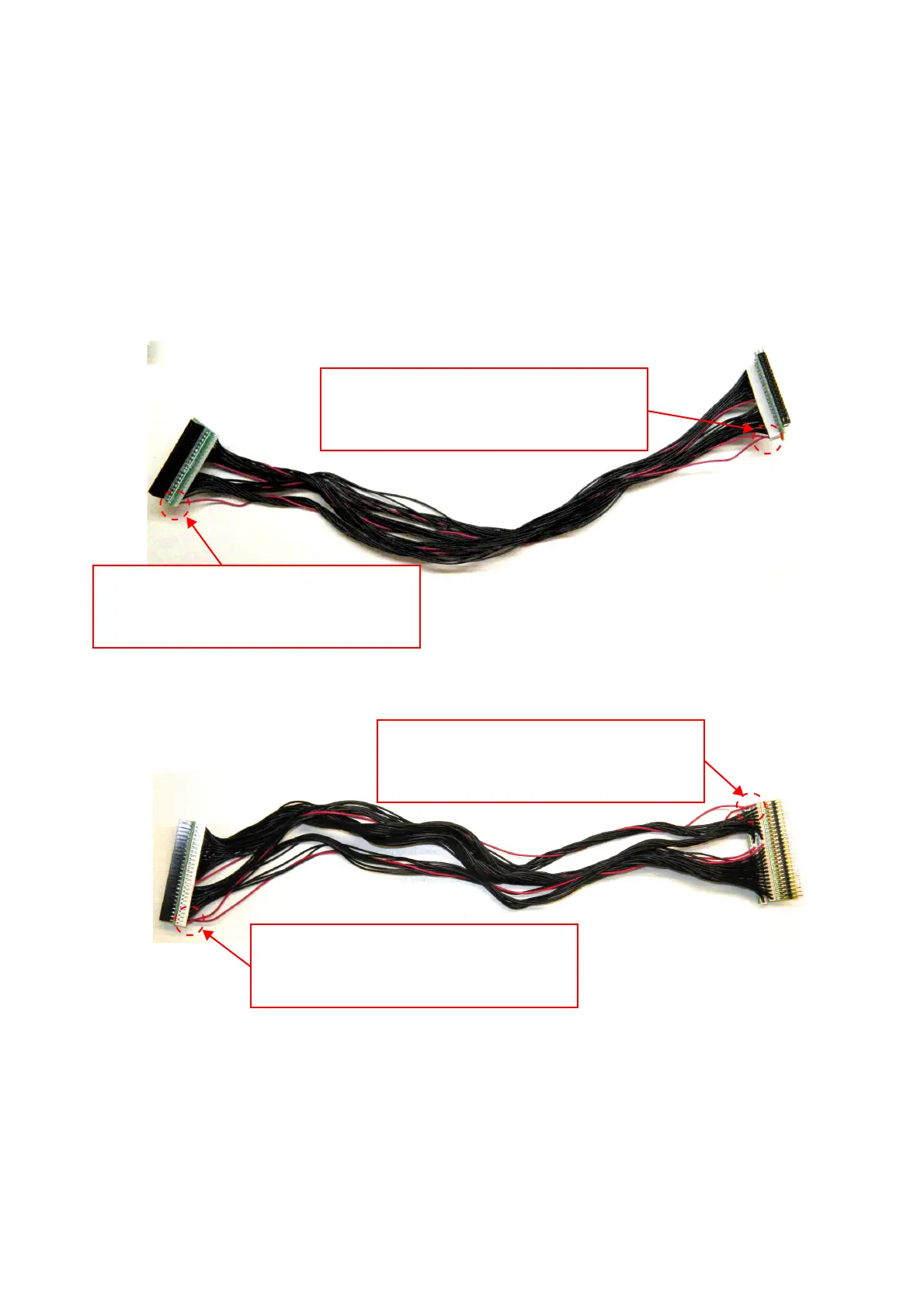

998619000470S : extension wire for SR6004/5004 HDMI PWB : 2 Set
Connector : 40pins female
A side near the red wire connector is "The first pin."
40 ピンメス
赤いワイヤーが 1 番ピン側
Connector : 40pins male
A side near the red wire connector is "The first pin."
40 ピンオス
赤いワイヤーが 1 番ピン側
Connector : 50pins female
A side near the red wire connector is "The first pin."
50 ピンメス
赤いワイヤーが 1 番ピン側
Connector : 50pins male
A side near the red wire connector is "The first pin."
50 ピンオス
赤いワイヤーが 1 番ピン側
998619000480S : extension wire for SR6004/5004 INPUT PWB : 1 Set

Marantz SR5004 Specifications

General

Channels	7.1
HDMI Outputs	1
Video Upscaling	Yes, up to 1080p
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
HDMI Switching	Yes
3D Technology	Yes
Frequency Response	10 Hz - 100 kHz
USB Port	No
Dolby Technologies	Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio, DTS Neo:6
Amplifier Output Details	90 watts per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Tuning Range	AM/FM
Video Upconversion	Yes
