Marantz SR5004 Service Manual

1
1. TECHNICAL SPECIFICATIONS
FM TUNER SECTION
Frequency Range .....................................87.5 - 108.0 MHz
Usable Sensitivity................................ IHF 1.8 μV/16.4 dBf
Signal to Noise Ratio ....................... Mono/Stereo 75/70 dB
Distortion......................................... Mono/Stereo 0.2/0.3 %
AM TUNER SECTION
Frequency Range ............................... 520 - 1710 kHz [ /U ]
........................................................531 - 1602 kHz [/N, /K ]
Signal to Noise Ratio ..................................................50 dB
Usable Sensitivity........................................ Loop 400μV/m
Distortion...................................... 400Hz, 30 % Mod. 0.5 %
AUDIO SECTION
Power Output (8Ω/20Hz-20kHz/THD=0.08%)
Front L&R...................................................100 W / Ch [ /N ]
..................................................... 90 W / Ch [ /U, /K ]
Center ........................................................100 W / Ch [ /N ]
..................................................... 90 W / Ch [ /U, /K ]
Surround L&R ............................................100 W / Ch [ /N ]
..................................................... 90 W / Ch [ /U, /K ]
Surround Back L&R ...................................100 W / Ch [ /N ]
..................................................... 90 W / Ch [ /U, /K ]
Power Output (6Ω/20Hz-20kHz/THD=0.08%) [ /U, /N ]
Power Output (6ΩJEITA) [ /K ]
Front L&R...................................................120 W / Ch [ /N ]
.........................................................115 W / Ch [ /U ]
.........................................................145 W / Ch [ /K ]
Center ........................................................120 W / Ch [ /N ]
.........................................................115 W / Ch [ /U ]
.........................................................145 W / Ch [ /K ]
Surround L&R ............................................120 W / Ch [ /N ]
.........................................................115 W / Ch [ /U ]
.........................................................145 W / Ch [ /K ]
Surround Back L&R ...................................120 W / Ch [ /N ]
.........................................................115 W / Ch [ /U ]
.........................................................145 W / Ch [ /K ]
Input Sensitivity/Impedance ...................180 mV/ 47 Kohms
Signal to Noise Ratio(Analog Input / Pure Direct).....105 dB
Frequency Response
(Analog Input / Pure Direct) ....... 8 Hz - 100 kHz ( ± 3 dB)
(Digital Input / 96 kHz PCM) ........ 8 Hz - 45 kHz ( ± 3 dB)
VIDEO
Television Format ..............................................NTSC [ /U ]
..............................................................NTSC/PAL [ /N, /K ]
Input Level/Impedance................................1 Vp-p/75 ohms
Output Level/Impedance.............................1 Vp-p/75 ohms
Video Frequency Response.............. 5 Hz to 8 MHz (-1 dB)
Video Frequency (Component)....... 5 Hz to 80 MHz (-1 dB)
S/N..............................................................................60 dB
HDMI
Input / Output jacks.......................... 19-pin HDMI terminals
(HDMI V.1.3 with Deep
Color, Dolby True HD,
DTS-HD Master Audio,
SACD, DVD-Audio)
GENERAL
Power Requirement ........................... AC 220 V 50 Hz [ /K ]
......................................................AC 230 V 50/60 Hz [ /N ]
...........................................................AC 120 V 60 Hz [ /U ]
Power Consumption...................................................650 W
Standby Power Consumption ......................(Normal) 0.7 W
................................................................. (Economy) 0.4 W
Weight...................................................................... 13.2 kg
Specifications subject to change without prior notice.
ACCESSORIES
Remote controller (RC008SR) ........................................... 1
AAA-size batteries ............................................................. 2
AC power cable.................................................................. 1
AM loop antenna................................................................ 1
FM antenna........................................................................ 1
Microphone ........................................................................ 1

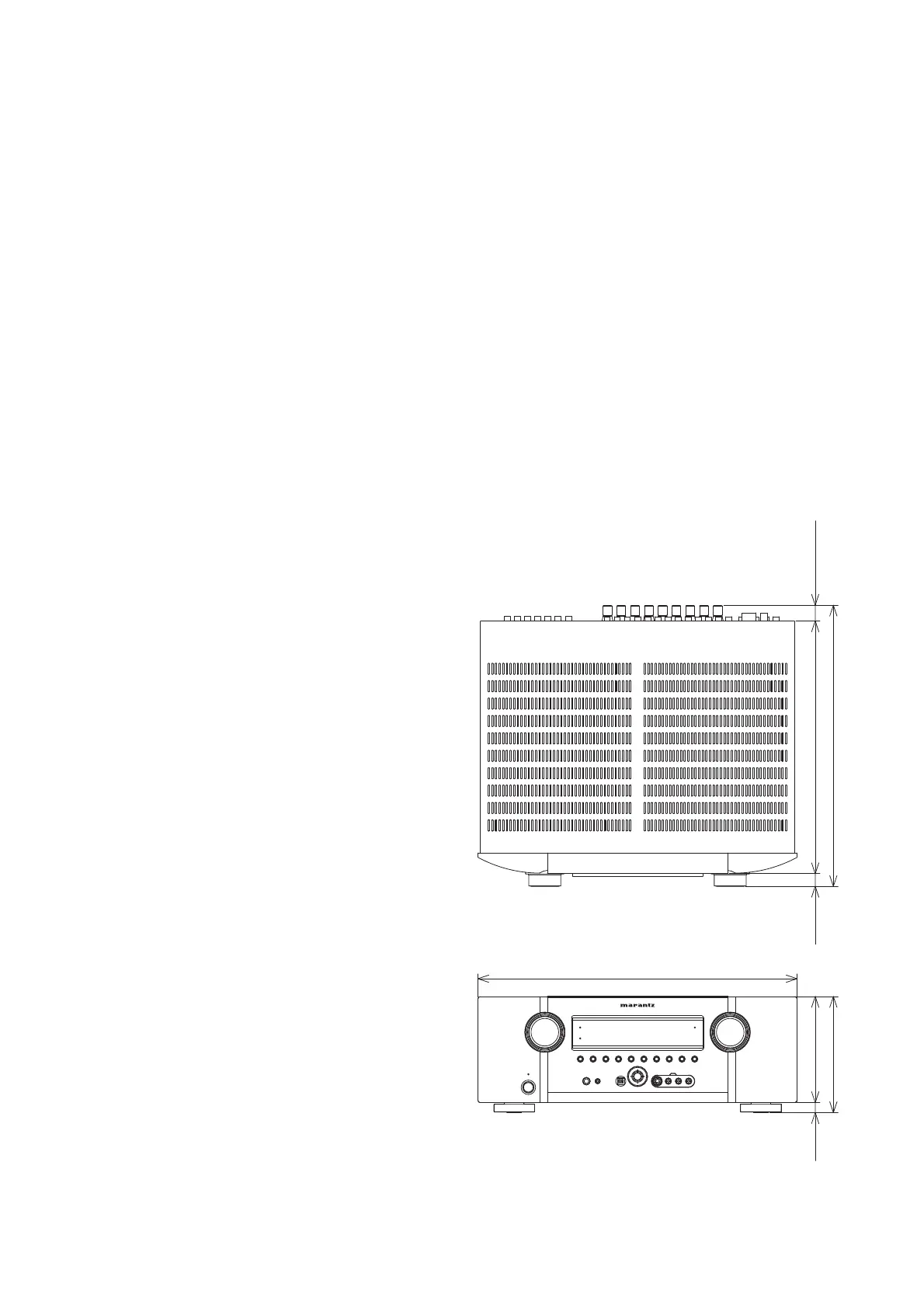

DIMENSION
348.5 (13-11/16)
17.5
(11/16)
22.5 (15/16)
389 (15-3/8)
440 (17-3/8)
161 (6-3/8)
14.5
(5/8)
146.5 (5-3/4)

Marantz SR5004 Specifications

General

Channels	7.1
HDMI Outputs	1
Video Upscaling	Yes, up to 1080p
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
HDMI Switching	Yes
3D Technology	Yes
Frequency Response	10 Hz - 100 kHz
USB Port	No
Dolby Technologies	Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio, DTS Neo:6
Amplifier Output Details	90 watts per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Tuning Range	AM/FM
Video Upconversion	Yes
