Applied configuration and connection
n

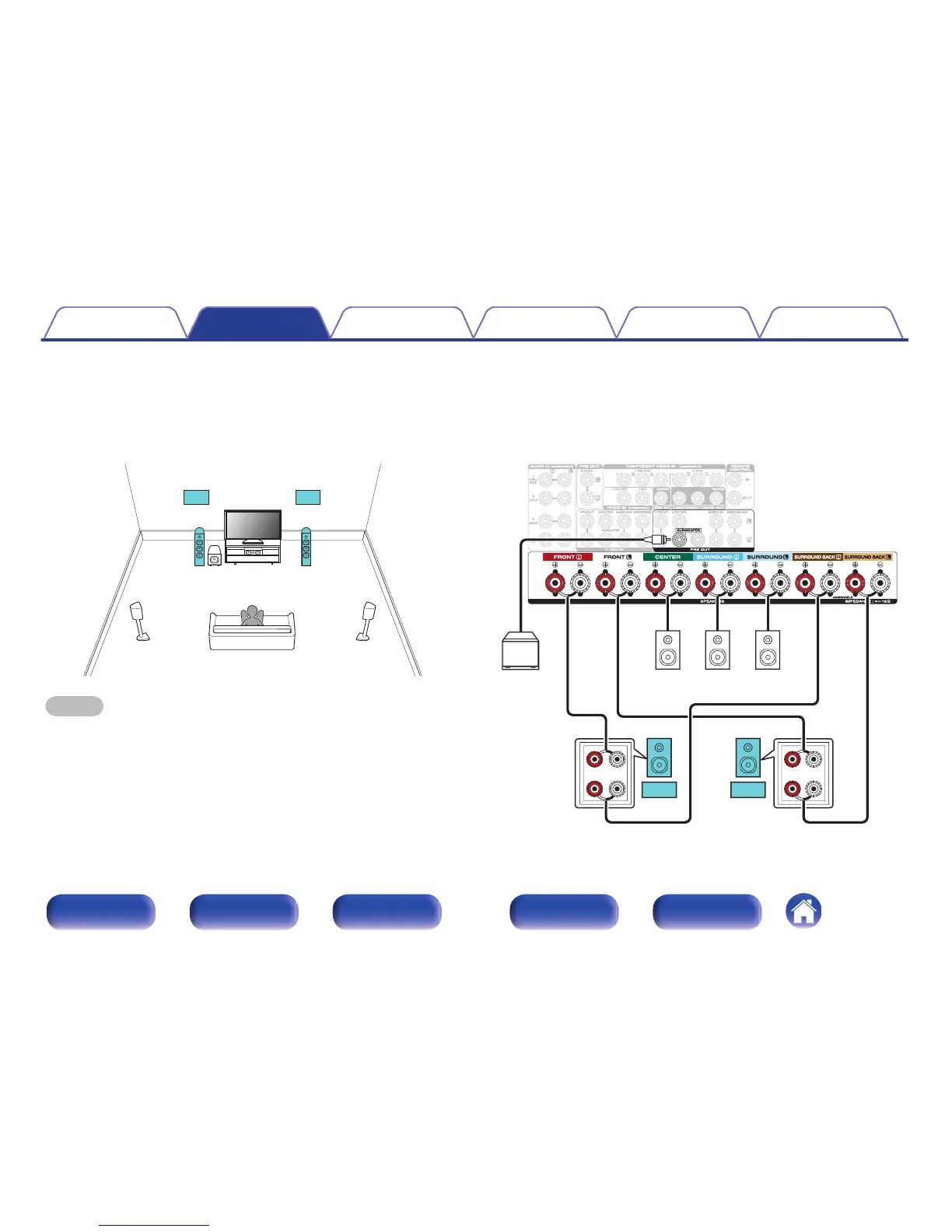

5.1-channel (bi-amp connection of front speaker)
This is a method of connecting separate amplifiers to the tweeter terminals and woofer terminals of bi-amp compatible speakers. This connection
enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a
higher sound quality.
.
FL
(Bi-Amp)
FR
(Bi-Amp)
SW C
SL
SR
NOTE
When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speaker’s woofer and tweeter terminals.
.
wqwq
(R) (L)
FLFR
CSRSL
SW
