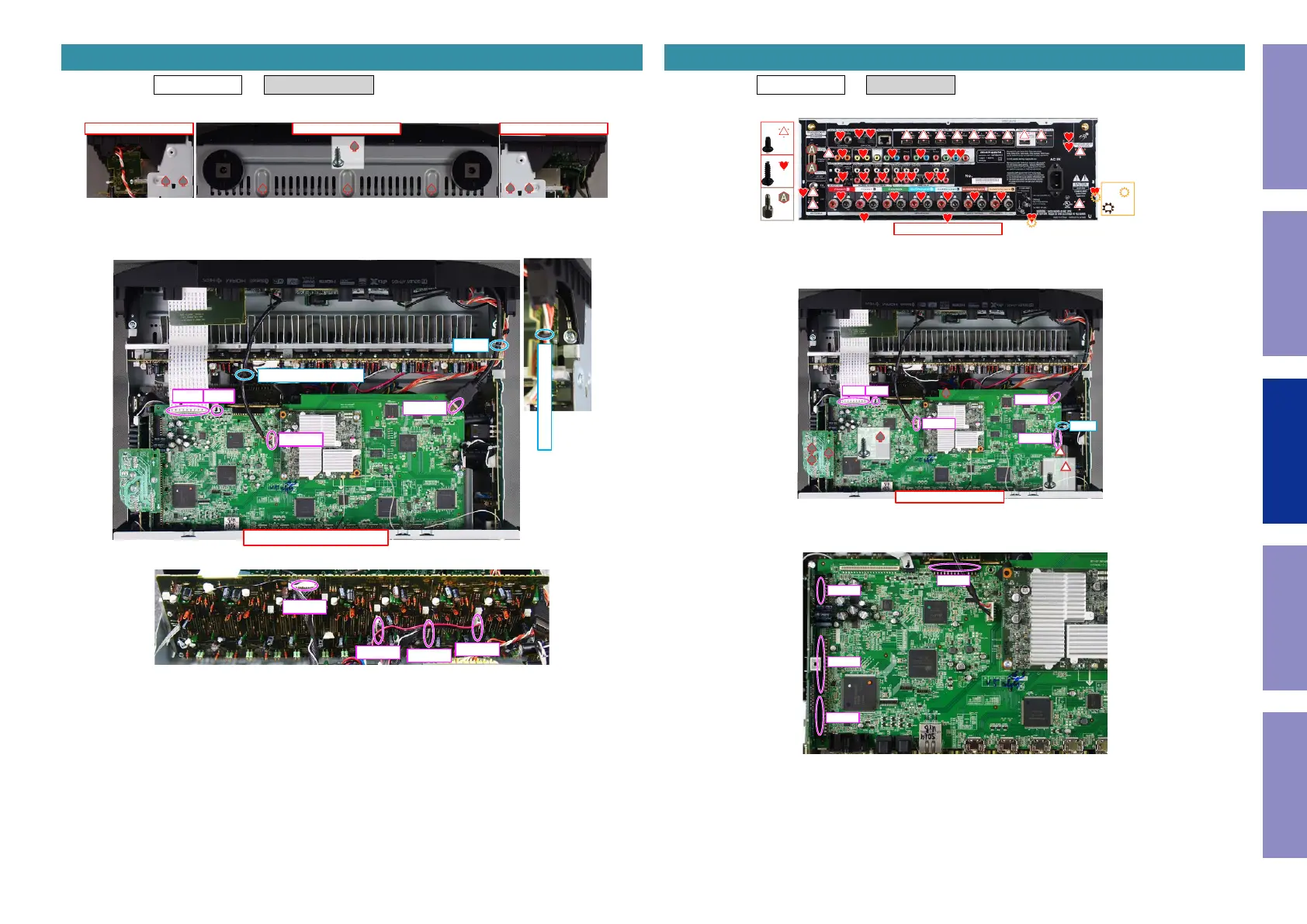

Proceeding : TOP COVER → RADIATOR ASSY
(1) Removethescrews.
(2) Cutthewireclamps,thenremovetheCORDHOLDERsandconnectors.RemovetheFFC.
(3) Removetheconnector.
2. RADIATOR ASSY
View from the bottom
↓Shooting direction: C↓
↓Shooting direction: D↓
x7
↑Shooting direction: A↑
N1008
CORD HOLDER
FFC
N1000
CORD HOLDER
CUT
FFC
CP402
CP403
CP405
CP401
Proceeding : TOP COVER → DIGITAL PCB
(1) Removethescrews.
(2) Removethescrews.Cutthewireclamp,thenremovetheCORDHOLDERandconnector.
RemovetheFFC.
(3) Removetheconnector.
3. DIGITAL PCB
↑Shooting direction: A↑
x30
x2
x14
x2
↑Shooting direction: A↑
x4
x1
N1008
FFC
N1000
FFC
N1033
CUT
N1014
N1016
N1020
N1039
