Marantz SR5014 - Video Pcb

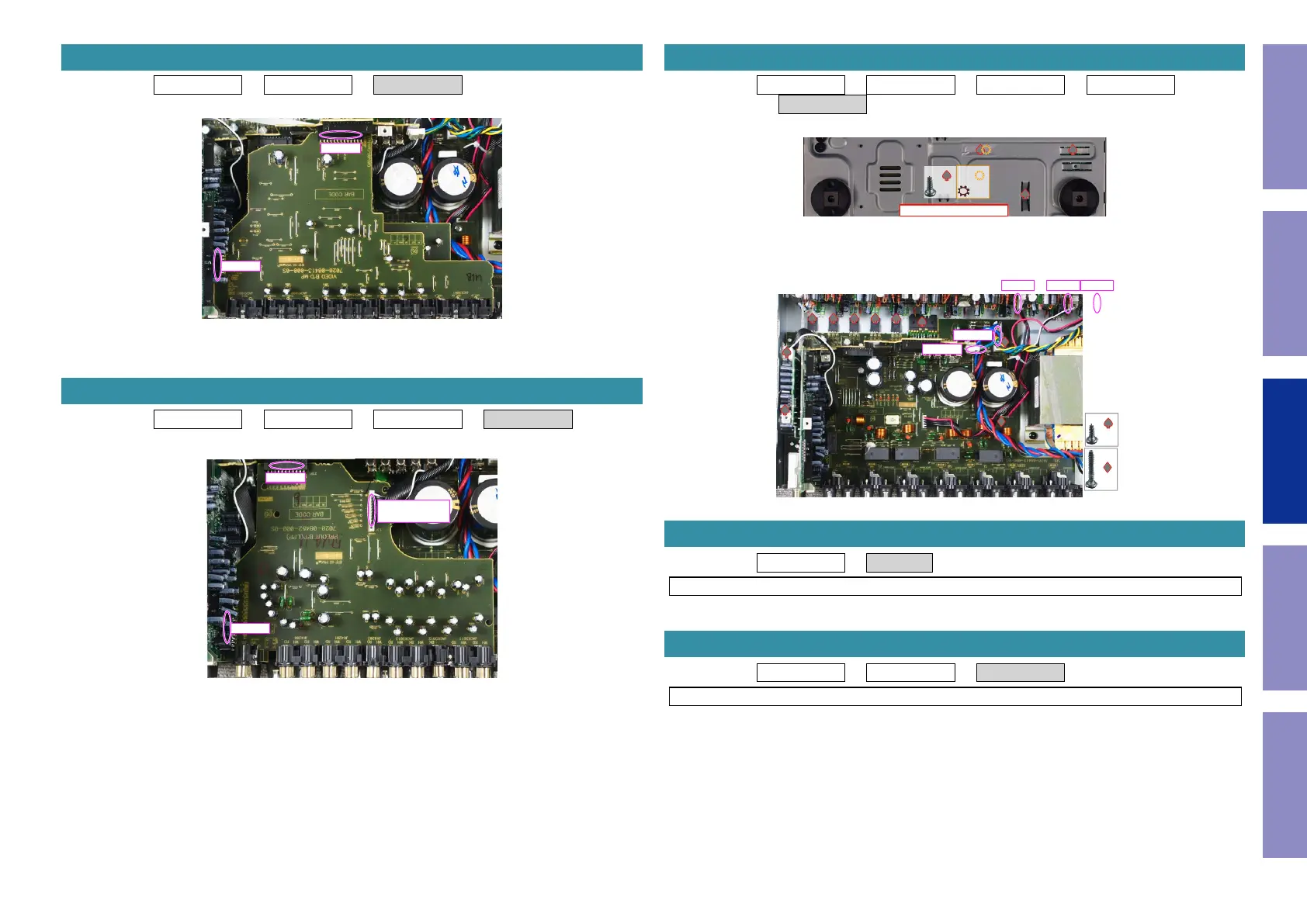

Proceeding : TOP COVER → DIGITAL PCB → VIDEO PCB
(1) Removetheconnector.
Proceeding : TOP COVER → DIGITAL PCB → VIDEO PCB → PREOUT PCB
(1) Removetheconnector.
4. VIDEO PCB
CN5003
CN5000
5. PREOUT PCB
CN5601
CN4704
CN600
from AMP PCB
Proceeding : TOP COVER → DIGITAL PCB → VIDEO PCB → PREOUT PCB
→ PREOUT PCB
(1) Removethescrews.
(2) Removethescrews.Removetheconnector.
Proceeding : TOP COVER → SMPS PCB
See"EXPLODEDVIEW"forinstructionsonremovingtheSMPSPCB.
Proceeding : TOP COVER → DIGITAL PCB → TRANS
See"EXPLODEDVIEW"forinstructionsonremovingthetransformer(TRANS).
6. MAIN PCB
View from the bottom
x3 x1
x8
x2
CP4001
CP5003
CP403 CP405CP402
7. SMPS PCB
8. TRANS
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
74
