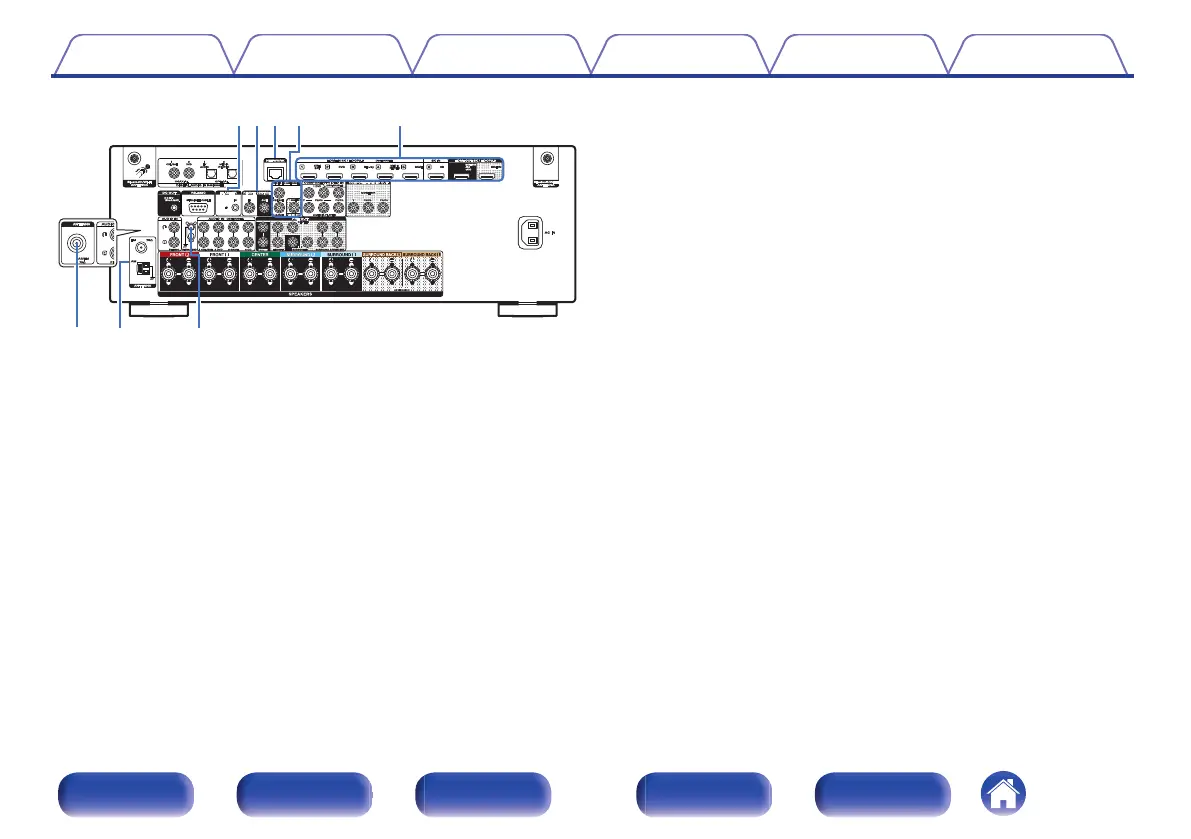

E
FLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
F
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 69)
G
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 67)
H
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 56)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 58)
I
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC (Enhanced
Audio Return Channel)” (v p. 54)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 55)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 58)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 59)
0
“Connecting a player device compatible with the 8K” (v p. 60)
J
DAB/FM antenna terminal (ANTENNA) (for FM/DAB model only)
Used to connect a DAB/FM antenna. (v p. 66)
K
FM/AM antenna terminals (ANTENNA) (for FM/AM model only)
Used to connect FM antennas and AM loop antennas. (v p. 64)
L
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 62)
