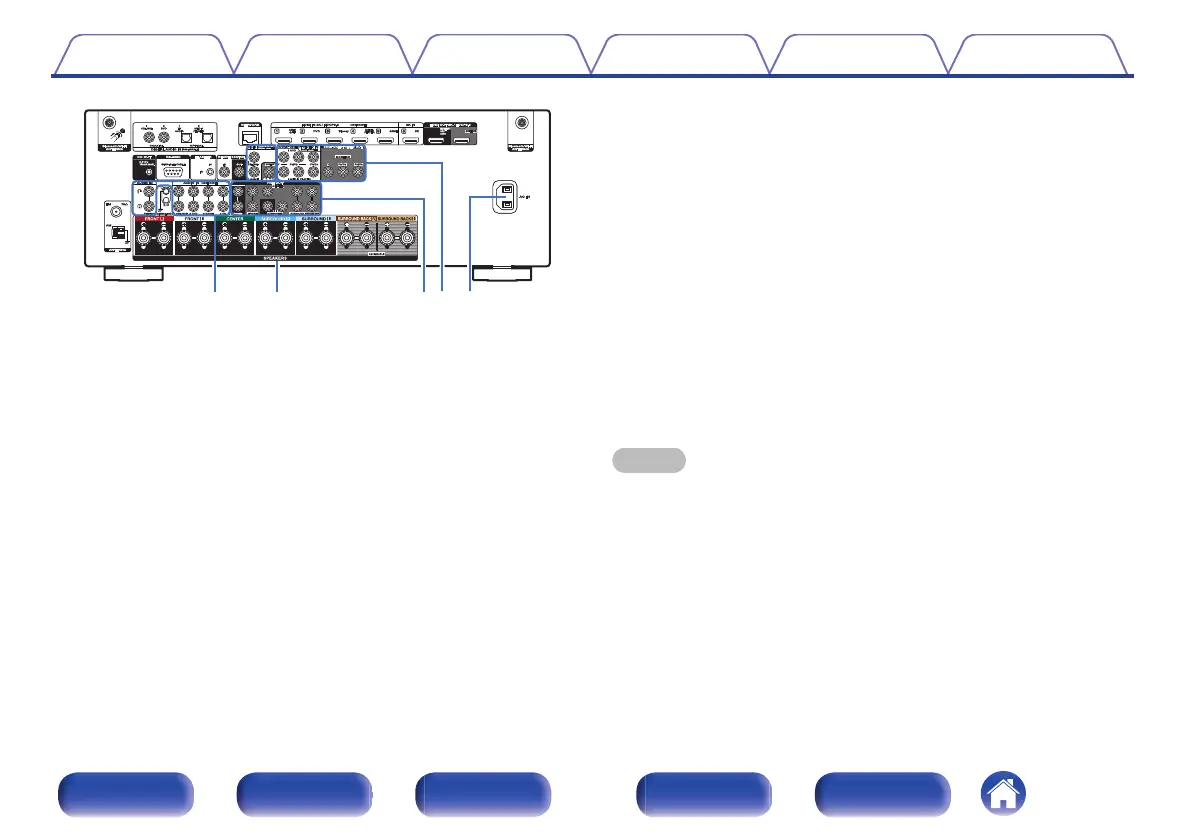

Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 58)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 59)
0
“Connecting a turntable” (v p. 62)
N
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 37)
O
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power
amplifier.
0
“Connecting the subwoofer” (v p. 38)
0
“Connection 2 : Connection using an external amplifier
(ZONE2)” (v p. 167)
P
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 56)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 59)
Q
AC inlet (AC IN)
Used to connect the power cord. (v p. 71)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
