A
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v p. 58)
A

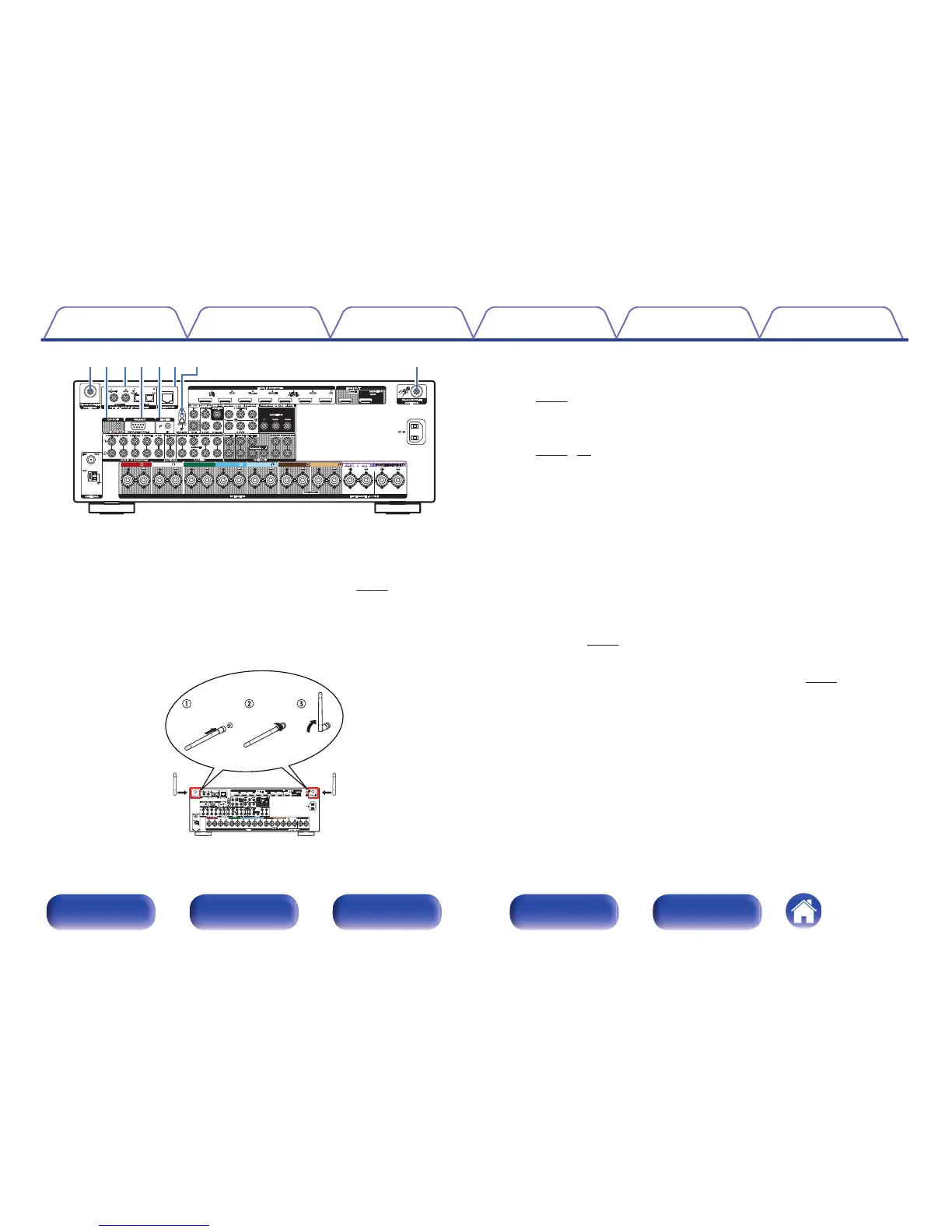

Place the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
B
Turn clockwise until the antennas is fully connected.
C
Rotate the antenna upwards for best reception.
.
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT
B
DC OUT jack
Used to connect devices equipped with the trigger function.
(v p. 60)
C
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
(v p. 45, 49)
D
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
E
FLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
F
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v
p. 57)
G
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 51)
