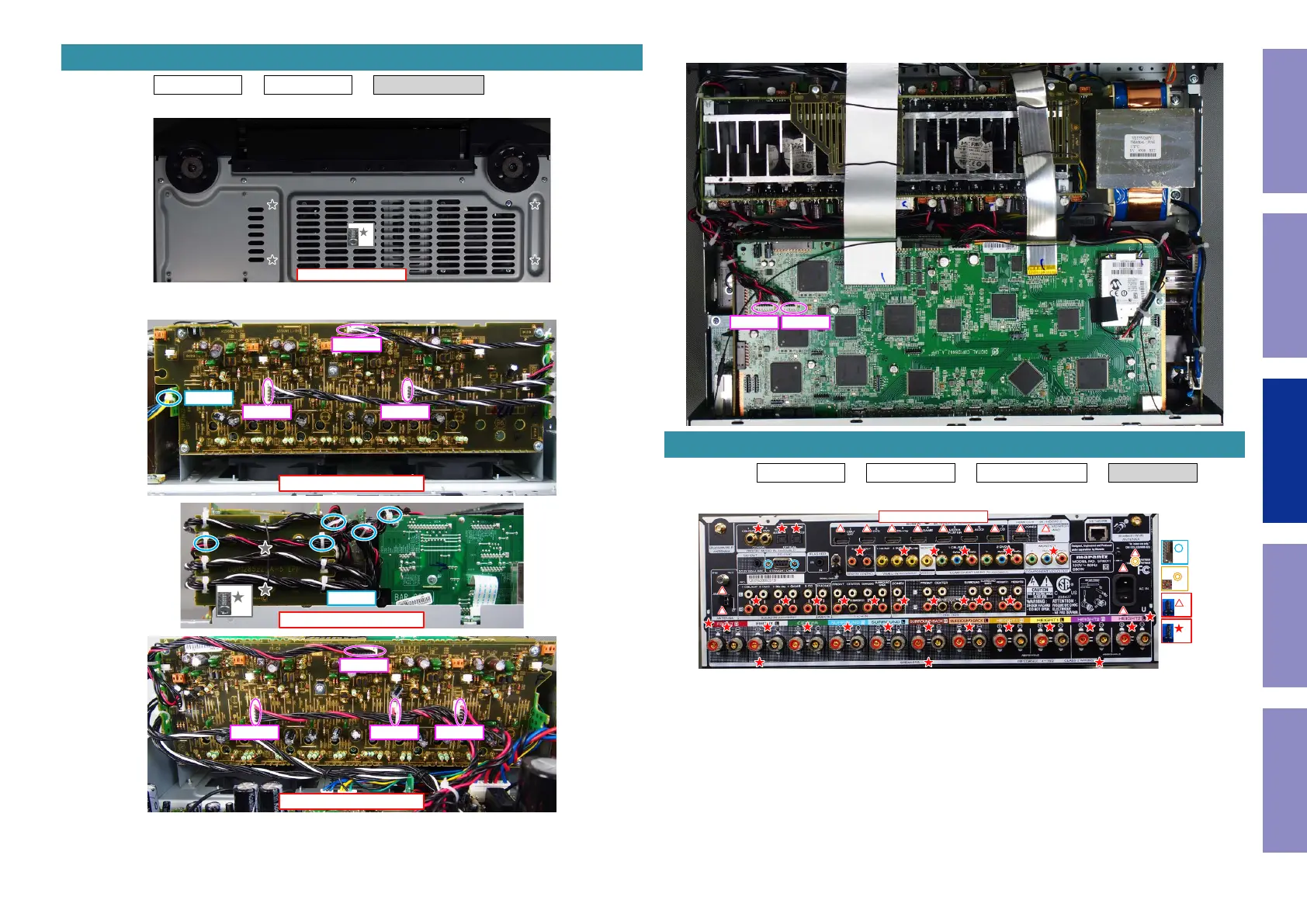

Marantz SR6011 - Radiator Assy; Rear Panel

Proceeding : TOP COVER → FRONT ASSY → RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws. Cut the wire clamp, then remove the connector.
2. RADIATOR ASSY
View from the bottom
x4
↑Shooting direction: B↑
↑Shooting direction: D↑
↑Shooting direction: A↑
x2
CN462
CN708 CN707
CN701 CN702CN703
CN461
CUT x5
CUT x1
(3) Remove the connector.
Proceeding : TOP COVER → FRONT ASSY → RADIATOR ASSY → REAR PANEL
(1) Remove the screws.
CN781CN704
3. REAR PANEL
↓Shooting direction: A↓
x35
x14
x2
x1
