2. Global Description
2-1. Overview
A Host controller can control or watch out the product as a Slave very easily via the communication cable.

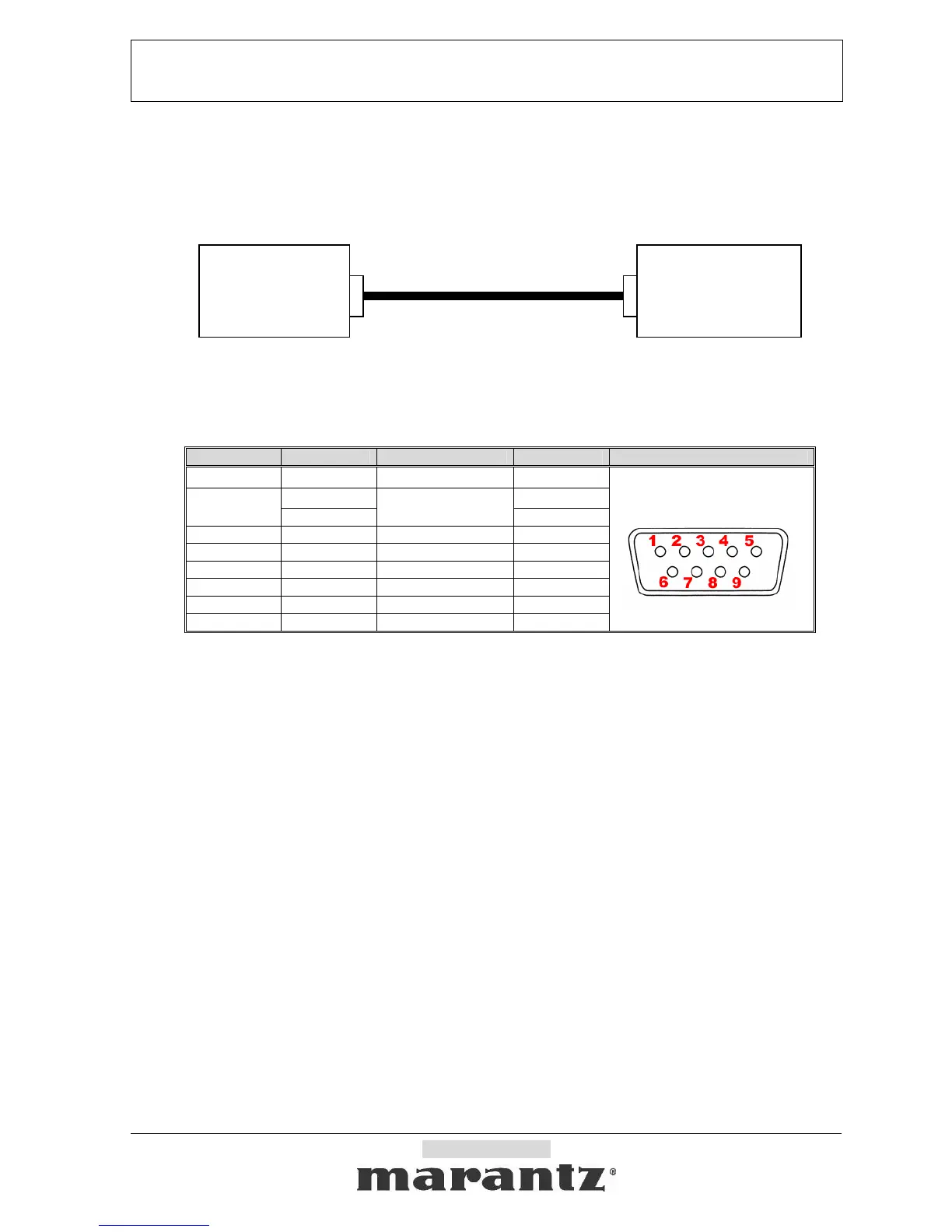

2-2. Block Diagram
* The product connector is using D-SUB 9pin male.
* RS232C cable must use D-SUB 9pin female to connect the products.
2-3. Interface connection specification of the product
uP Interface Signal name Connection device D-Sub Pin Connecter
- N.C. - 1
TxD (output) 2
UART
RxD (input)
RS232C
Level shift driver
3
- N.C. - 4
-
GND GND 5
- N.C. - 6
- N.C. - 7
- N.C. - 8
- N.C. - 9
<The product connector>
RS232C D-SUB (9pin,Male)
2-4. Assumptions and Dependencies
HOST
(Controller)
SLAVE
(The product)
Connector
D-SUB (9pin, male)
RS232C cable (Straight)
To Next Page
