Information

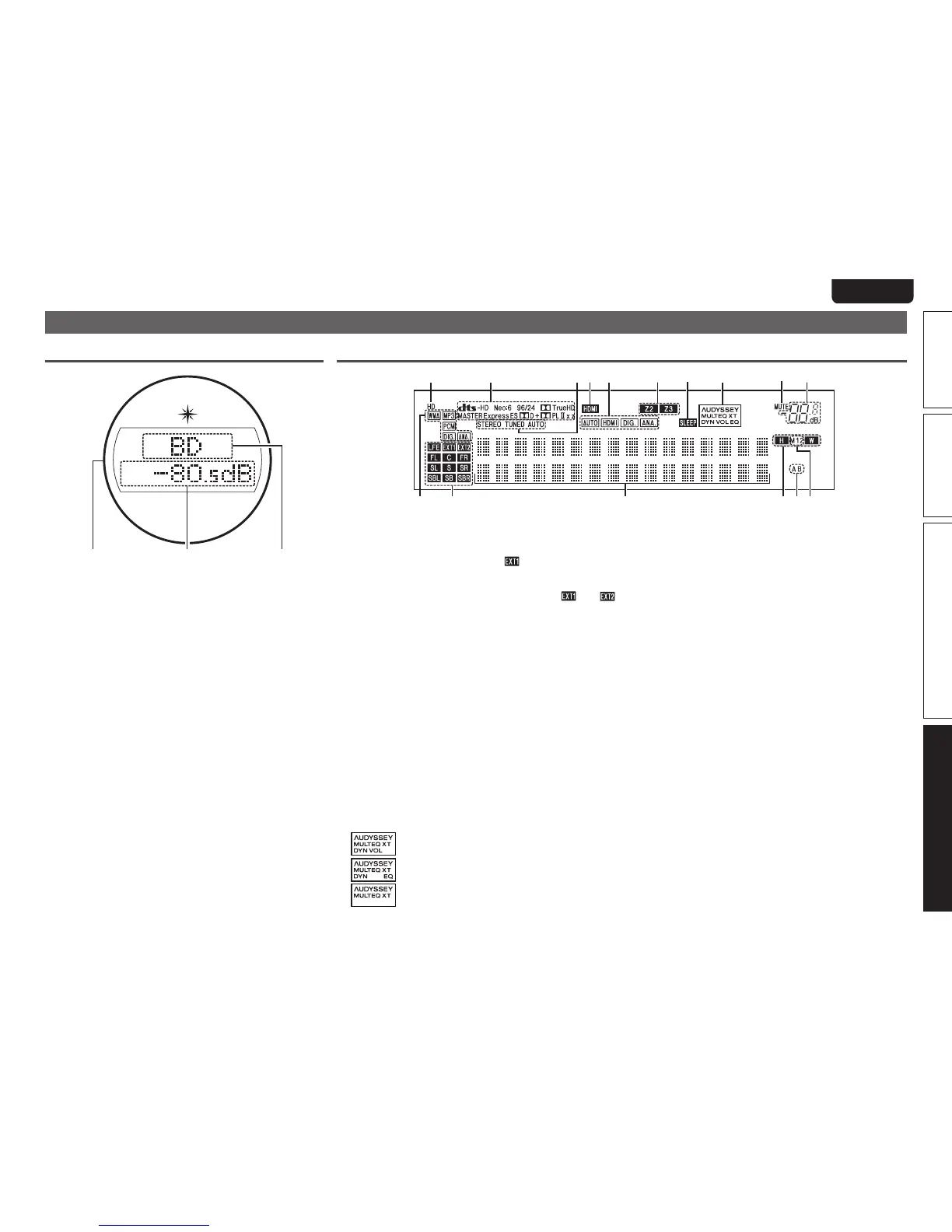

Sub Display
uiQ2
Q4
Q5Q6 oQ0Q1Q3
wq e r t y
q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
When playing HD Audio sources, the indicator lights when a
signal from an extension channel (a channel other than the front,
center, surround, surround back or LFE channel) is input.
If there are two or more extension channels, the and
indicators light.
e Information display
The input source name, surround mode, setting values and other
information are displayed here.
r Front height/front wide channel indicators
When audio is output from the front height channels, the “H”
indicator lights. When audio is output from the front wide channels,
the “W” indicator lights.
t Front speaker indicator
This lights according to the setting of the front A and B speakers.
y Monitor output indicator
These light according to the HDMI monitor output setting.
u Master volume indicator
i MUTE indicator
This lights when the mute mode is select (vpage27).
o AUDYSSEY indicators
Lighting is as follows, depending on the setting of “Dynamic EQ
®
”
(vpage76) and “Dynamic Volume
®
” (vpage77).
When “Dynamic EQ” and “Dynamic Volume” are
“ON”.
When “Dynamic EQ” is “ON” and “Dynamic
Volume” is “OFF”.
When “Dynamic EQ” and “Dynamic Volume” are
“OFF”.
Q0 Sleep timer indicator
This lights when the sleep mode is selected (vpage58).
Q1 Multi-zone indicators
This lights up when ZONE2, ZONE3 (separate room) power is
turned on (vpage64).
Q2 Input mode indicators
Set the audio input modes for the different input sources (vpage73).
Q3 HDMI indicator
This lights when playing using HDMI connections.
Q4 Tuner reception mode indicators
These light according to the reception conditions when the input
source is set to “HD Radio”.
STEREO : In the FM mode, this light when receiving stereo
broadcasts.
TUNED : Lights when the broadcast is properly tuned in.
AUTO : This light when in the auto tuning mode.
Q5 Decoder indicators
These light when the respective decoders are operating.
Q6 HD indicator
This light during HD Radio reception.
Display
Main Display
wq e
q Light illumination
When the power to this device is switched on, the surrounding
area is lit blue. The settings can be changed so the light does not
switch on (vpage91 “Switches light illumination on/off”).
w Master volume indicator
e Input source indicator
The currently selected input source name is displayed.
If the input source name has been changed using “Input Setup” –
“Rename” (vpage73) in the menu, the input source name after
the change is displayed.
