Marantz SR7005 - Connect

51
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
When 5.1ch installed
FL FR
SW
C
SL
SR
z1
z2
Listening
position
z1 22˚ – 30˚ z2 120˚
When Front A/B speakers installed
FR(A) FR(B)
SW
FL(B) FL(A)
Listening position
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker FHL Front height speaker (L)
SW Subwoofer FHR Front height speaker (R)
SL Surround speaker (L) FWL Front wide speaker (L)
SR Surround speaker (R) FWR Front wide speaker (R)
SB Surround back speaker
Connect
• For the method of connecting the 7.1-channel system with surround back speakers, see page 5.
• For the method of connecting the TV, see page 6.

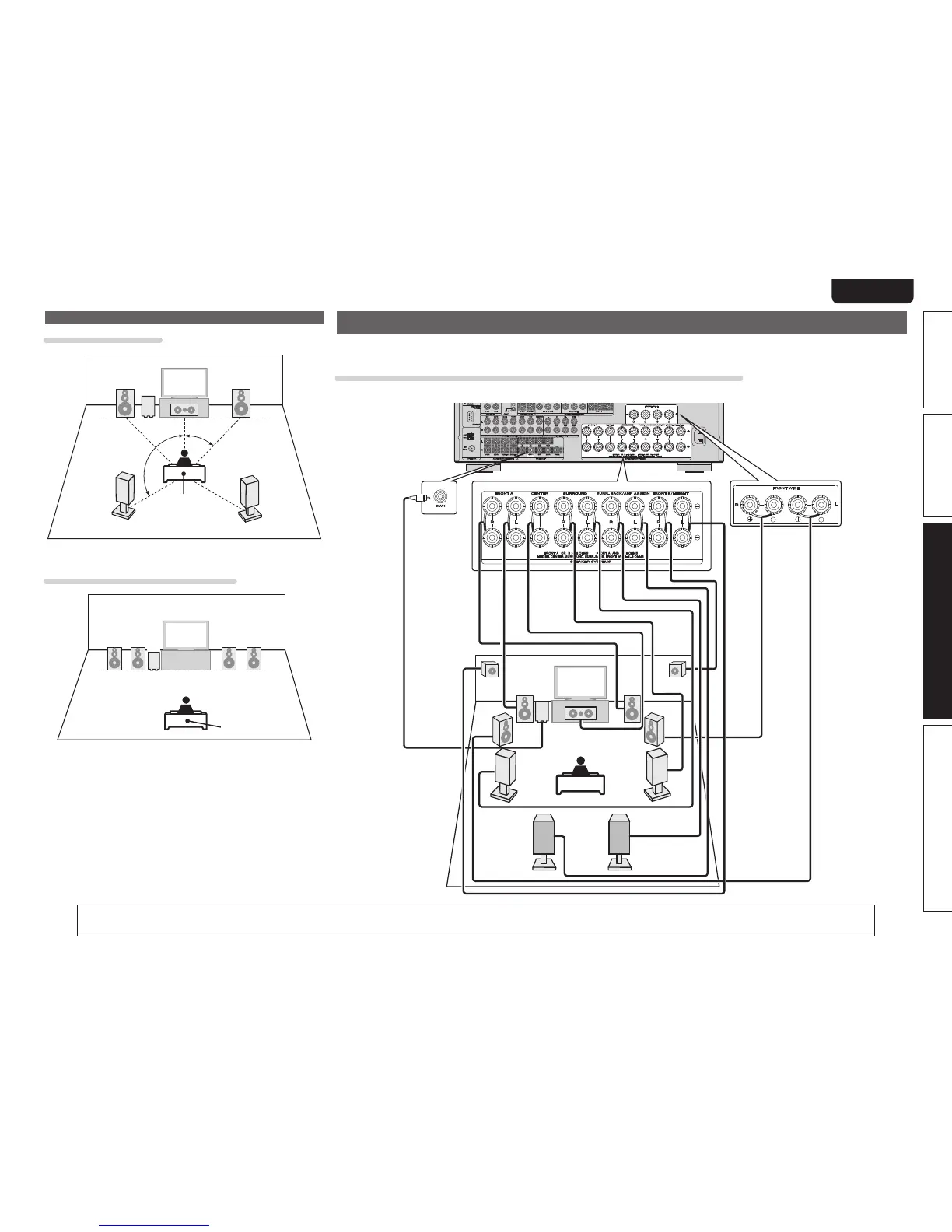

7.1-channel (Surround back / Front height / Front wide speaker) connection
For 7.1-channel (Surround back / Front height / Front wide speaker) playback, set “Set up “Amp Assign”” (vpage54) to “Normal”.
FL FR
C
SBL SBR
SL
SR
SW
FWRFWL
FHRFHL
For speaker impedance and speaker cable connections, see page 5.
Install
