JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1 Sets
8U-110136S : EXTENSION UNIT KIT : 1 Sets
Insulation sheet (Not supplied) : 3 sheets
Ground lead (Not supplied) : 3 pcs
-Procedures-

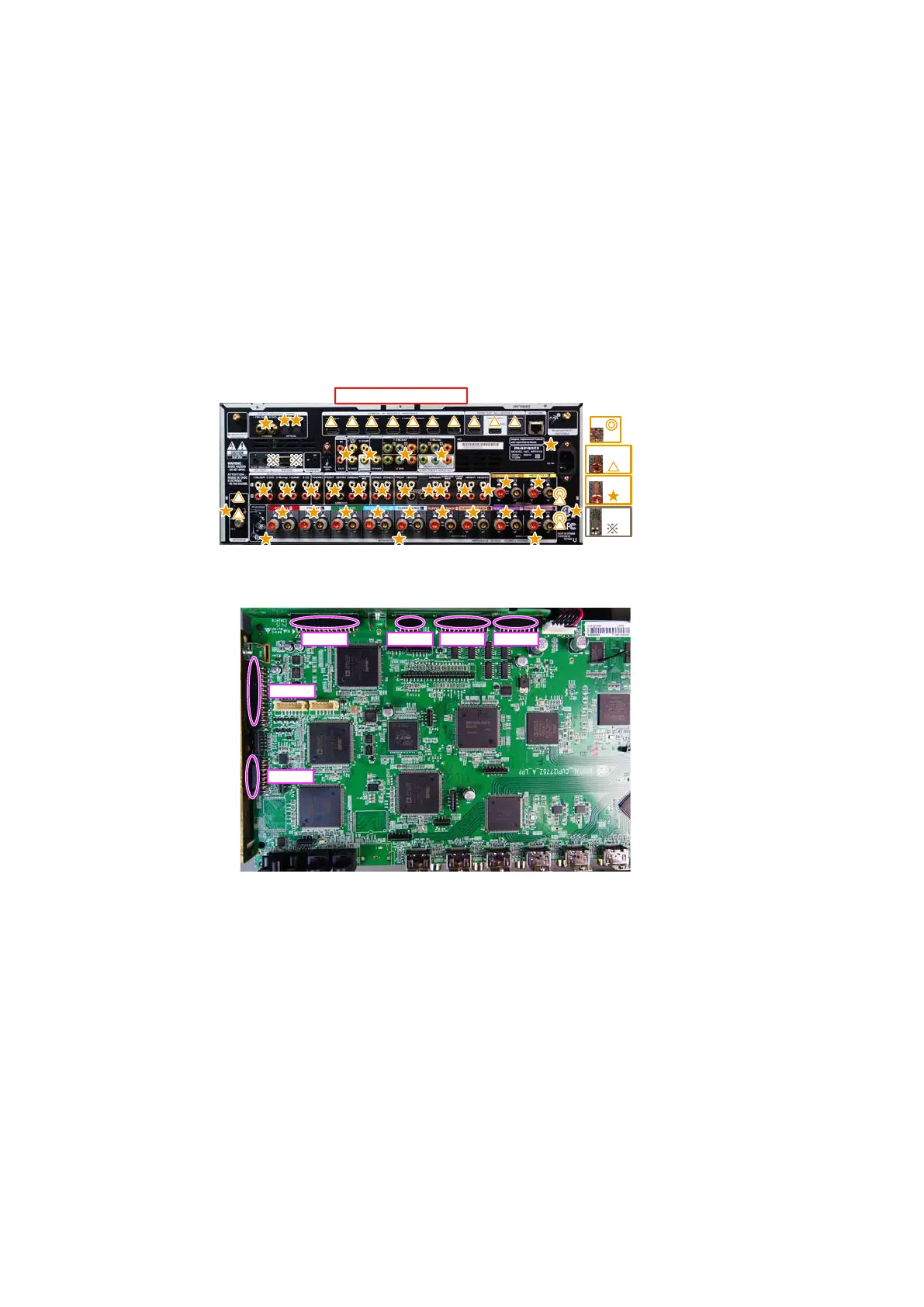

(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x2
x14
x35
x2
BN24A BN26A BN25A BN21A
BN23A
BN27A
76
