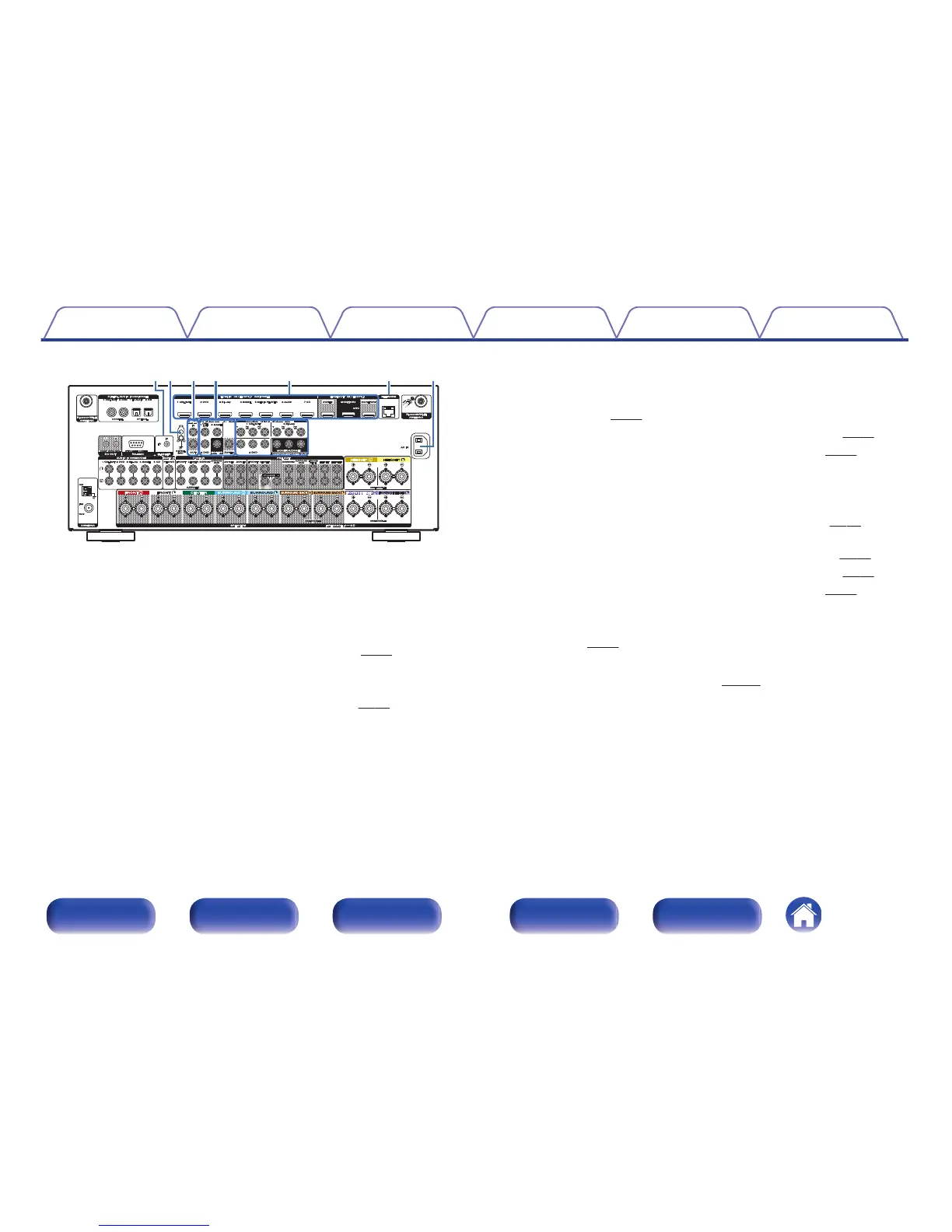

E
FLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
F
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v
p. 91)
G
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v
p. 99)
H
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 86)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 88)
0
“Connecting a DVD player or Blu-ray Disc player” (v
p. 89)
I
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v
p. 84)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 85)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 88)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 89)
J
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v
p. 97)
K
AC inlet (AC IN)
Used to connect the power cord. (v p. 101)
