Marantz ST6000 Service Manual

1
2
FM Section
Frequency Range ...... 87.50MHz-108.00MHz(50kHz steps)
87.50MHz-108.00MHz(50kHz steps)
76.00MHz-90.00MHz(50kHz steps)
Usable Sensitivity (IHF)................................... Mono : 10dBf
Frequency Response .......................................20Hz~15kHz
+0.5 ~ -3.0dB
T.H.D (at 65dBf, 1KHz) .................................... Mono : 0.1%
Stereo : 0.2%
Signal-to-Noise Ratio (at 65dBf, 1kHz) ............ Mono : 70dB
Stereo : 65dB
AM Suppression Ratio ................................................. 60dB
Stereo Separation (1kHz) ............................................ 40dB
General
Power Requirements ........................AC 230V ,50Hz ( /N1 )
AC 120V ,60Hz ( /U1 )
AC 100V ,50Hz/60Hz ( /F1 )
Power Consumption........................................................ 8W
Dimensions (WxHxD) .................................. 440x96x311mm
Weight (net)................................................................. 3.8Kg
MW Section
Frequency Range ................. 522kHz-1622kHz (9kHz step)
520kHz-1710kHz (10kHz step)
Usable Sensitivity (S/N 20dB) ................................... 55dBm
Image Response Ratio ................................................ 35dB
T.H.D (400Hz) .............................................................. 0.8%
Signal-to-Noise Ratio ............................... 40dB (at 85dB/m)
LW Section (/N1 only)
Frequency Range ................... 146kHz-290kHz (1kHz step)
Usable Sensitivity (S/N 20dB) ................................... 60dBm
T.H.D (400Hz) .............................................................. 1.0%
Signal-to-Noise Ratio ............................... 40dB (at 85dB/m)
Standard Accessories
Audio signal connection cord ............................................. 1
Remote control connection cord ........................................ 1
FM Antenna........................................................................ 1
AM Loop Antenna .............................................................. 1
User Guide ......................................................................... 1
Remocon Unit ( /U1 , /F1 ) (RC6000ST) ............................ 1
75-300ohm adaptor ( /U1 , /F1 ) ........................................ 1
1. TECHNICAL SPECIFICATION

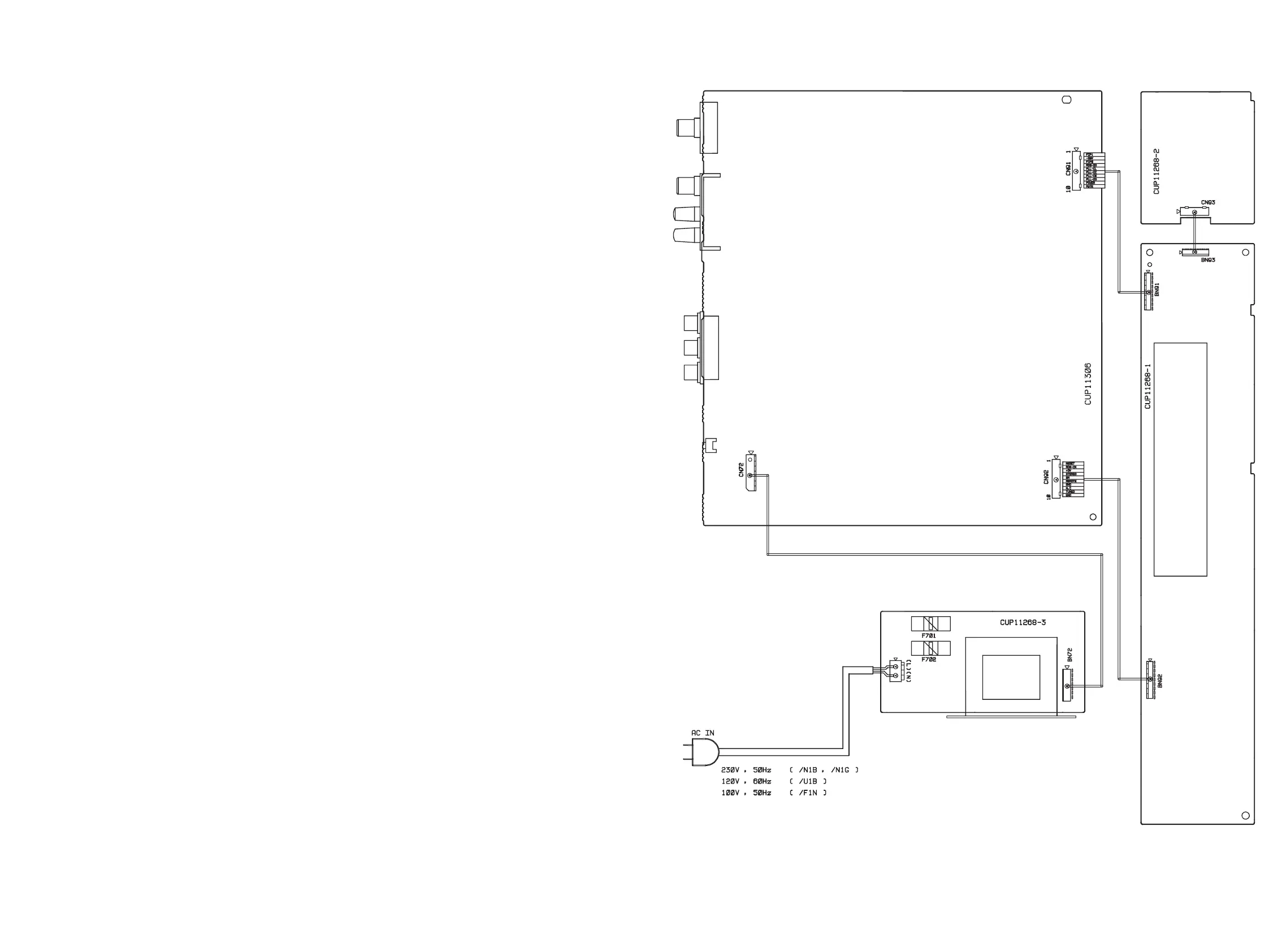

2.WIRING DIAGRAM

Marantz ST6000 Specifications

General

Brand	Marantz
Model	ST6000
Category	Tuner
Language	English
