Specications
Audio performance n
Signal format : NTSC
Applicable discs /memory cards : (1) BD-Video discs :
12 cm 1 side 1 layer, 12 cm 1 side 2 layers
(2) DVD-Video / DVD-Audio discs :
12 cm 1 side 1 layer, 12 cm 1 side 2 layers /
12 cm 2 sides 2 layers (1 side 1 layer)
8 cm 1 side 1 layer, 8 cm 1 side 2 layers /
8 cm 2 sides 2 layers (1 side 1 layer)
(3) Super Audio CDs :
12 cm 1 layer / 12 cm 2 layer / 12 cm Hybrid
(4) Compact Discs (CD-DA) :
12 cm / 8 cm discs
(5) Memory cards :
SD Memory Card / SDHC Memory Card / miniSD Card /
microSD Card
S-Video output : Y output level : 1Vp-p (75 /ohms)
C output level : 0.286 Vp-p
Output terminal : S-Video, 1 set
Video output : Output level : 1Vp-p (75 /ohms)
Output terminal : Pin-jack, 1 set
Component video output : Y output level : 1Vp-p (75 /ohms)
Pb/Cb output level / Pr/Cr output level : 0.648 Vp-p (75 /ohms)
Output terminal : Pin-jack, 1 set
HDMI output : Output terminal : 19-pin HDMI terminals, 2 sets
HDMI ver. 1.3a
(Deep Colour, Dolby Digital Plus, Dolby TrueHD, DTS-HD)
Analog audio output : Output level : 2 Vrms (10 k/kohms)
2 channels output terminal : XLR terminal, 1 set
7.1 channels output terminal : Pin-jack, 1 set
Audio output characteristics : (1) Frequency response
q BD (Multi linear PCM)
w DVD (Multi linear PCM)
e Super Audio CD
r CD
: 2Hz ~ 22kHz (48kHz sampling)
: 2Hz ~ 44kHz (96kHz sampling)
: 2Hz ~ 88kHz (192kHz sampling)
: 2Hz ~ 22kHz (48kHz sampling)
: 2Hz ~ 44kHz (96kHz sampling)
: 2Hz ~ 88kHz (192kHz sampling)
: 2Hz ~ 100kHz
: 2Hz ~ 20kHz
(2) S/N ratio : 125dB
(3) Total harmonic distortion : 1kHz 0.0008%
(4) Dynamic range : 112dB
Digital audio output :
Optical digital output: Optical connector, 1 set
Coaxial digital output: Pin jack, 1 set
General n
Power supply : AC 120 V, 60 Hz
Power consumption :
(vpage 32 “Power Saving”)
88 W
When in Power Saving Standby : 0.3 W•
When in Normal Standby : 0.8 W•
When in HDMI Control Mode :•
4 ~ 15 W (Changes according to connection status, etc.)
When in Quick Start Mode :•
15 ~ 30 W (Changes according to connection status, etc.)
n Remote control unit
Remote control type : Infrared pulse
Batteries : AAA/R03 Type (three batteries)
n Dimensions (Unit: mm (inch))
n Weight : 19.2kg
z
For purposes of improvement, specications and design are subject to change without notice.
Specications
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

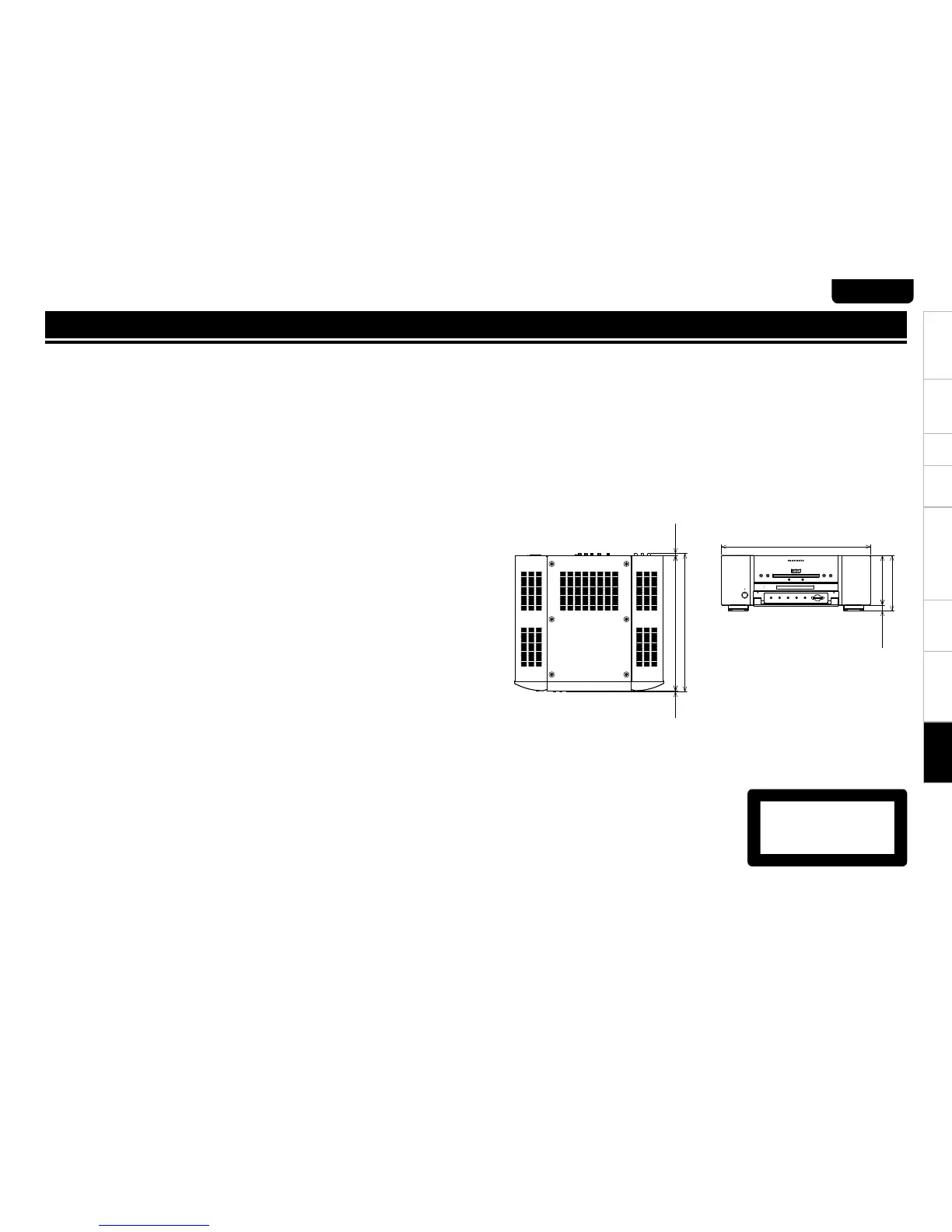

17 (11/16)
146.5 (5-13/16)
163.5 (6-7/16)
440 (17-3/8)
3 (1/8)
409 (16-1/8)
7 (5/16)399 (15-3/4)
