2 MAINTENANCE
PROCEDURES - TIMER ADJUSTMENT
Determine the cycle time of your machine from the CHARTS section in this manual
under TIMER SETTINGS. To set a timer, move the appropriate binary switches to the
ON position. The timer switch settings are cumulative (all switches in the ON position
add up to the total number of seconds for the timer setting).
Ex. : Switch 1 ( 1 sec) = OFF
Switch 2 ( 2 sec) = OFF
Switch 3 ( 4 sec) = ON 4 sec
Switch 4 ( 8 sec) = ON 8 sec
Switch 5 ( 16 sec) = ON 16 sec
Switch 6 ( 32 sec) = OFF
Switch 7 ( 64 sec) = OFF
Switch 8 (128 sec) = OFF
Switch 9 (256 sec) = OFF
Switch 10 (512 sec) = OFF
Timer Setting = 28 sec

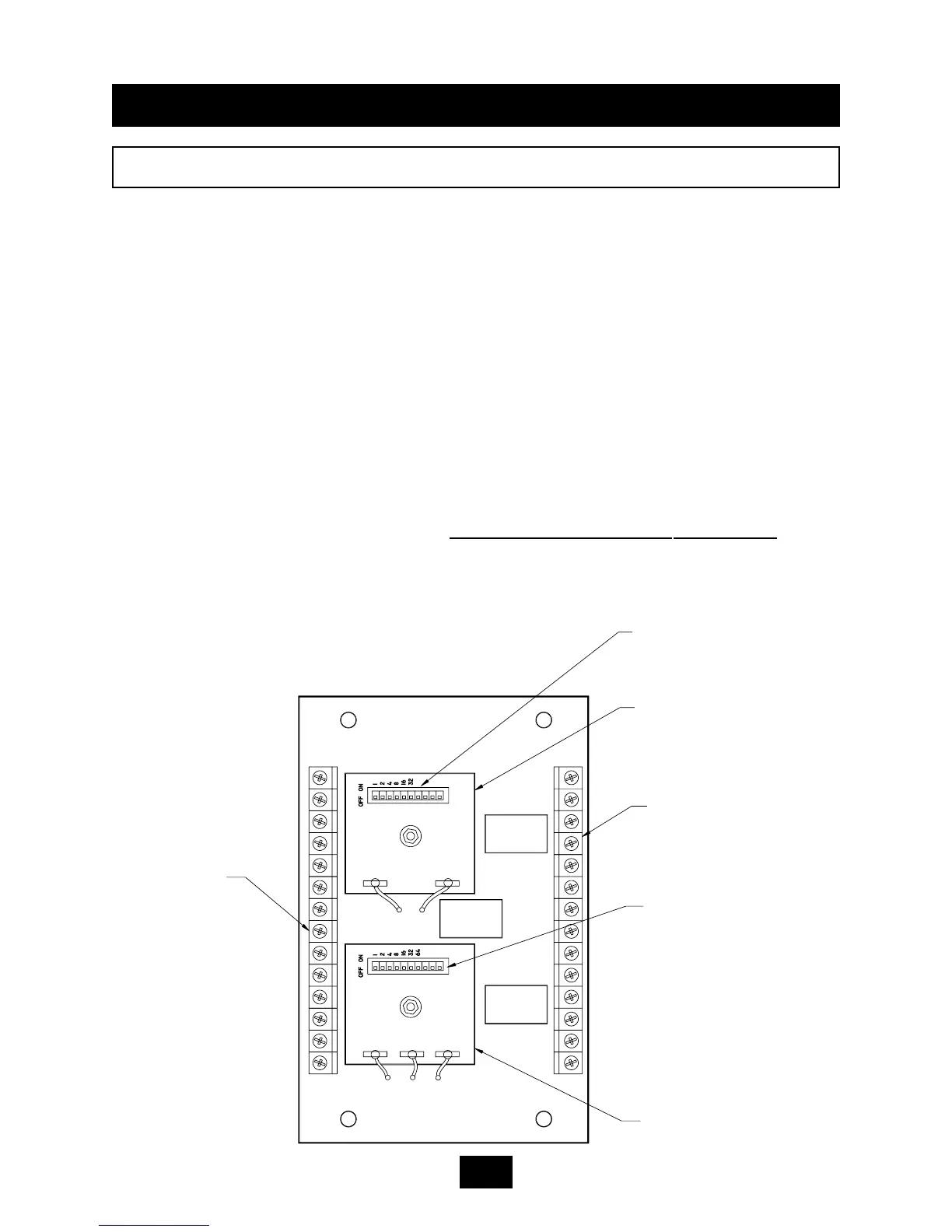

T1
TIMER
T2
TIMER
BINARY SWITCHES FOR
SETTING TIMER
PRINTED CIRCUIT BOARD
(LOCATED IN PANEL BOX)
BINARY SWITCHES FOR
SETTING TIMER
TERMINAL
STRIP
TERMINAL
STRIP
R2
R3
R1
2-11
