8

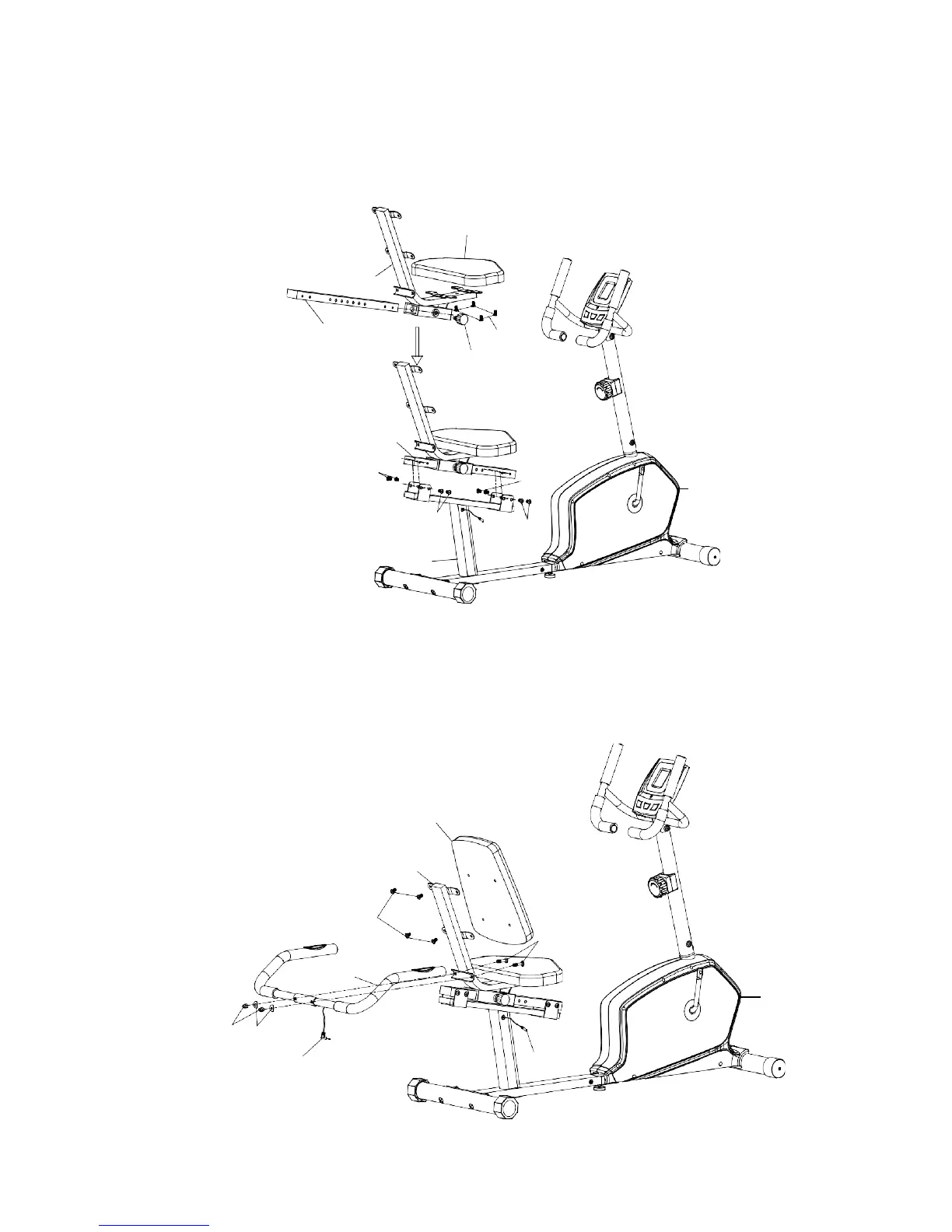

STEP 4
Insert the sliding tube (41) into seat support bracket (43). Line up the holes and secure sliding tube
(41) with quick release knob (42).
Attach seat cushion (45) to the seat support bracket (43). Secure using four allen screws (21).
Attach the sliding tube (41) to the support tube (40). Secure using eight allen screws (21).
45
43
41
21
42
41
21
21
1
21
21
40
STEP 5
Attach back cushion (44) to the seat support bracket (43). Secure using four allen screws (21).
Attach rear handlebar (13) to the seat support bracket (43). Secure using two carriage bolts (28),
two curved washers (5) and two domed nuts (29).
Connect rear extension hand pulse wire (49) to the hand pulse wire (82).
Tip: Avoid pinching the pulse Wires
44
43
21
28
29
5
13
1
82
49
