STEP 3

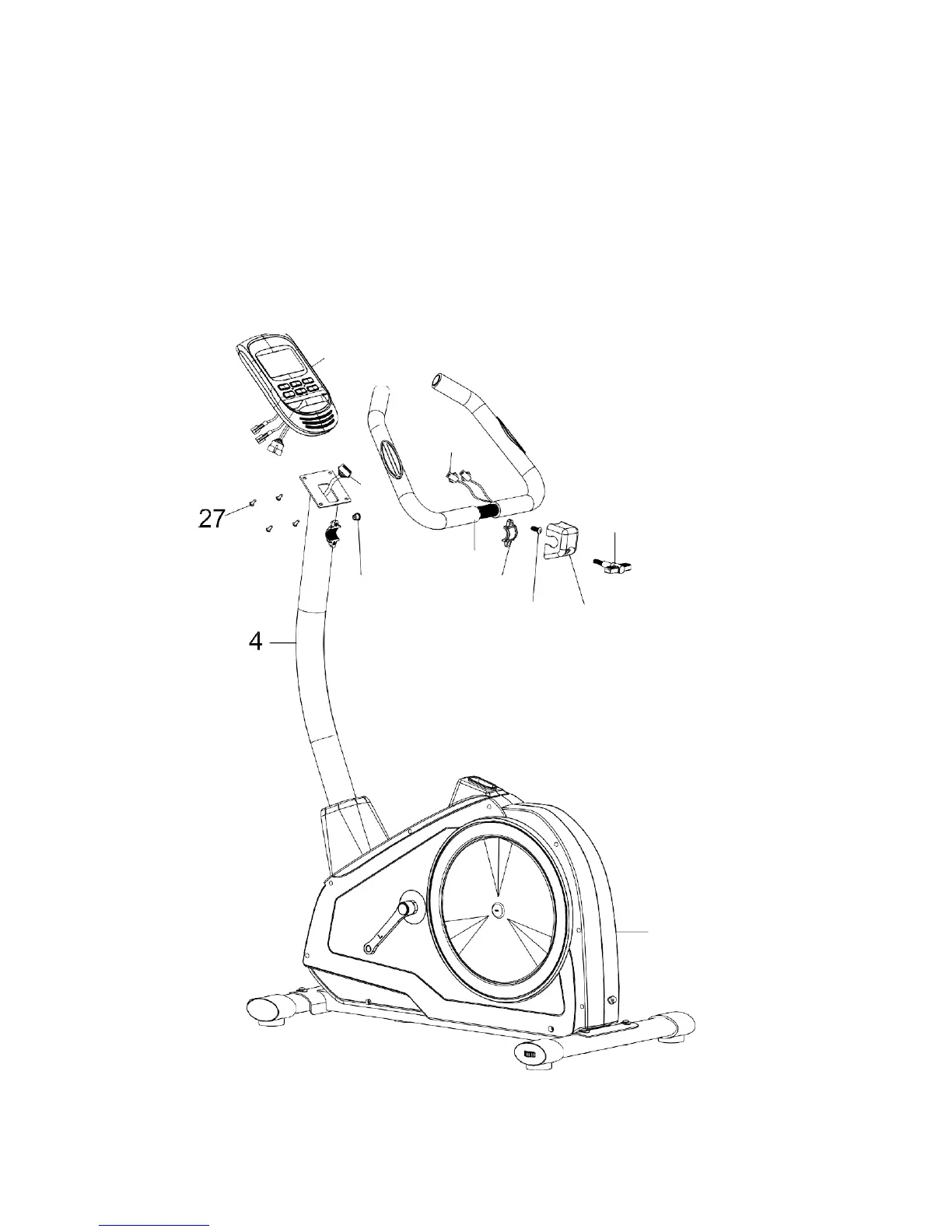

Attach the handlebar (5) to the front support (4) and fasten with one clamp (25), one allen
bolt (22), one clamp cover (37) and one T type knob (21).
Connect the upper sensor wire (33) to the sensor wire on the back of the meter (6).
Insert the hand pulse wire (20) through grommet (32) on front support (4) and pull it out of
front support (4), Insert the hand pulse wire (20) to the pulse hole on the back of meter (6).
Attach the meter (6) to the front support (4) and fasten with four screws (27) which are
pre-assemble on the meter (6).
6
20
33
21
5
32 25
22
37
1
