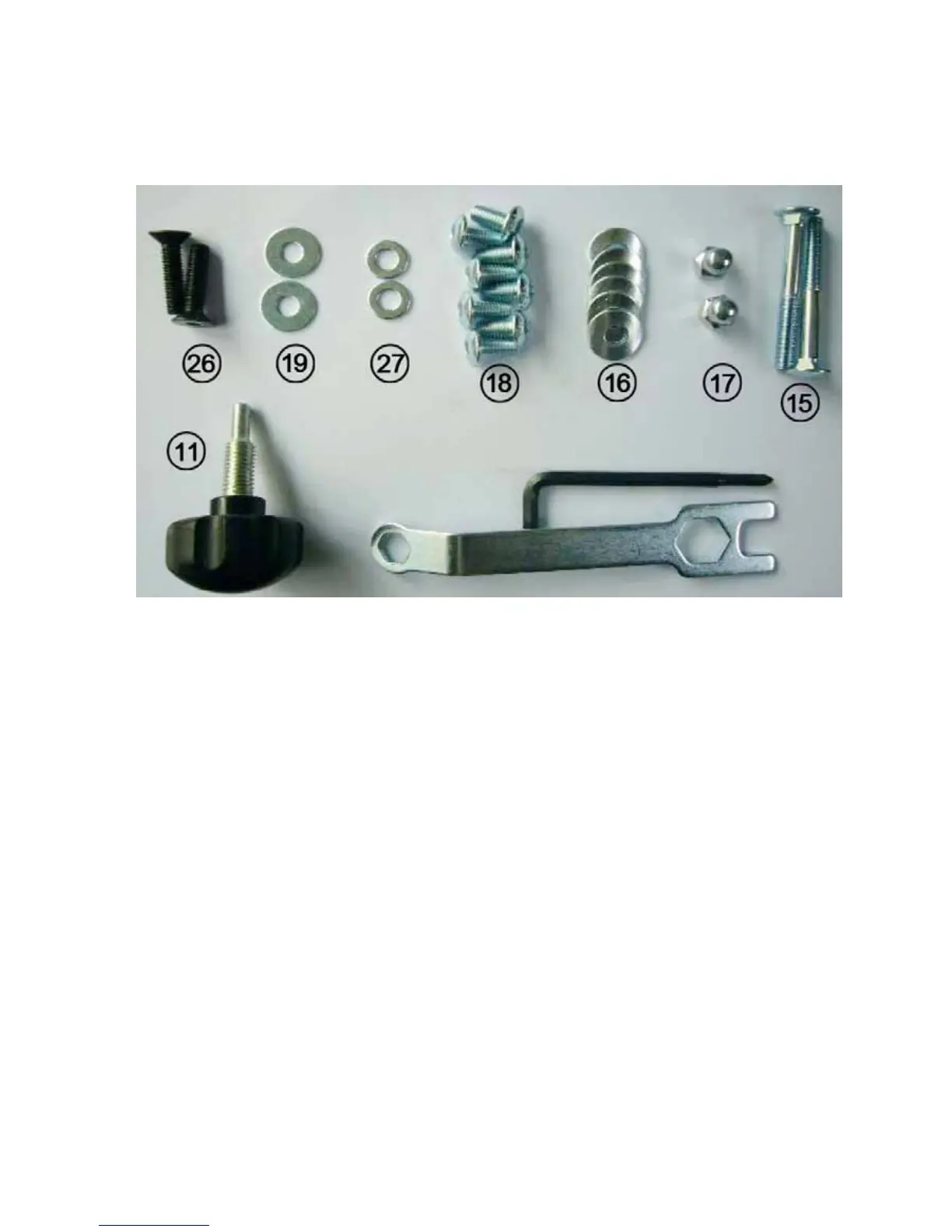

HARDWARE PARTS LIST
PART NO. DESCRIPTION Q’TY
11 Knob
1
15 Carriage Bolt M8*L65mm
2
16 Curve WasherΦ22
6
17 Domed Nut M8
2
18 Allen Bolt M8*15mm
8
19 Flat Washer Φ25
2
26 Screw for Handlebar
2
27 Flat Washer Φ17
2
Allen Key L6 1
Allen Wrench S13-15-19 1
Above described parts are all the parts you need to assemble this machine. Before
you start to assemble, please check the hardware packing to make sure they are
included.
