ASSEMBLY INSTRUCTION

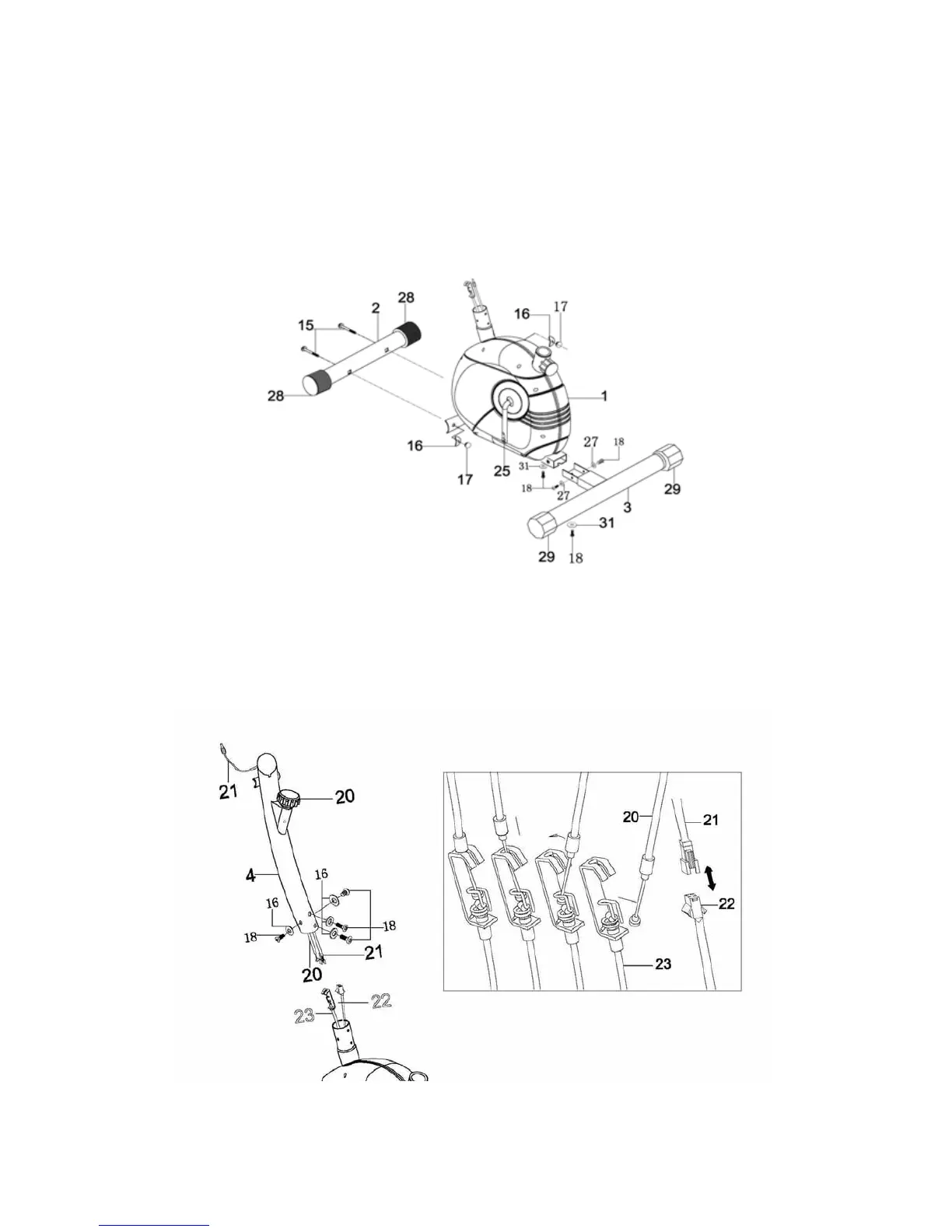

STEP 1
(a) Attach the front stabilizer (2) to the main frame (1), and tighten using 2 carriage bolts
(15), curve washer (16) and domed nut (17).
(b) Then, attach the rear stabilizer (3) to the main frame (1), using 2 allen bolts (18), and flat
washer (19) for the bottom of rear stabilizer, then tighten 2 sets of allen bolt (18), and flat
washer (27) for each side of the rear stabilizer.
STEP 2
Take the front post (4) and connect the middle computer wire (21) with lower computer wire
(22). Release the tension knob (20) on the front post (4) then connect with the lower tension
cable (23). Please see page 7 for a detailed description of the assembly. Insert the front
post (4) into the main frame (1) and tighten using 4 allen bolt (18) and curve washer (16).
6
