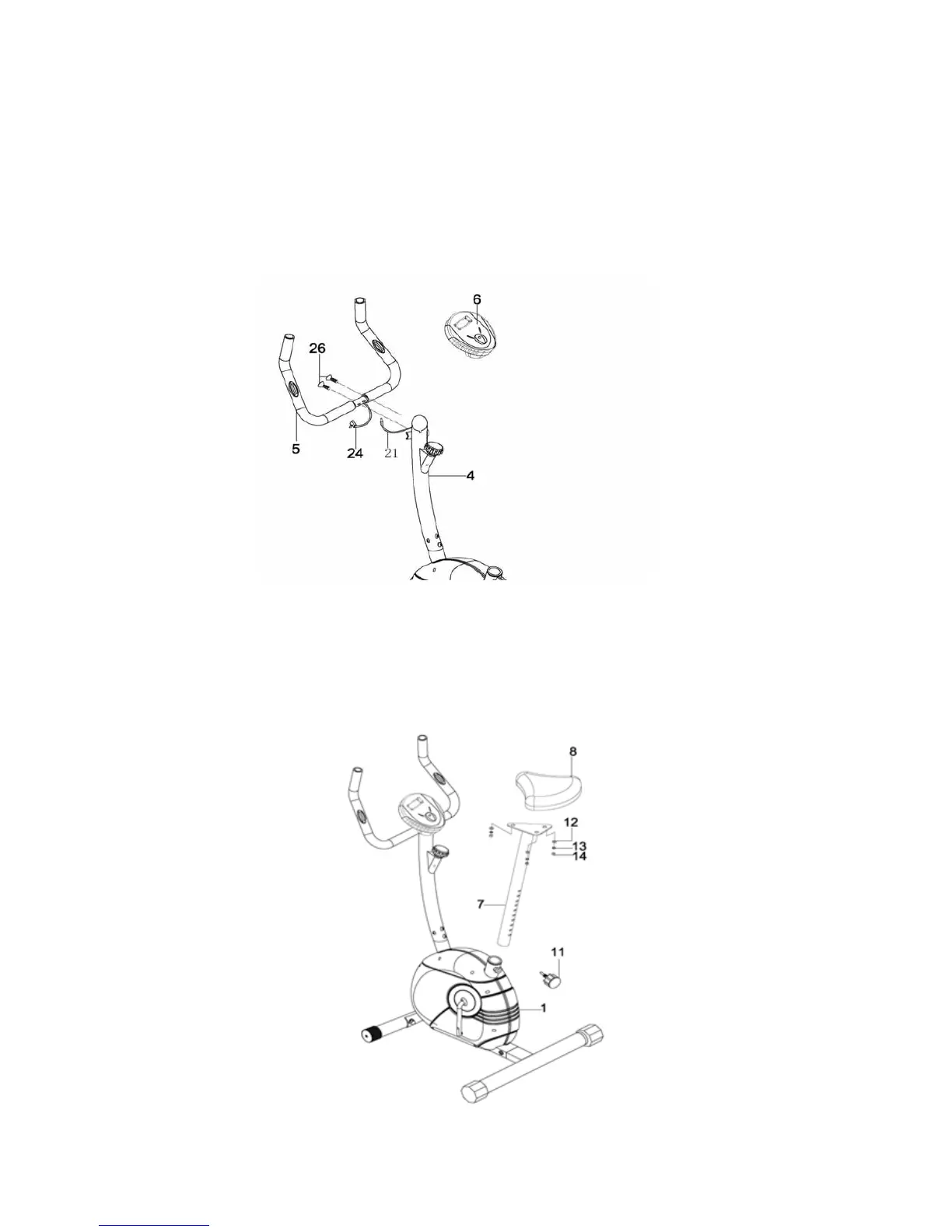

STEP 3
Assemble the computer with the computer holder (6) onto the top of front post (4). Plug the
computer sensor wire (21) into the rear of the computer marked “sensor input”.
Assemble the handlebar (5) to the front post (4) and tighten using 2 screws (26). Plug hand
pulse wire (24) into the rear of the computer marked “pulse input”.
STEP 4
Assemble the seat (8) to the seat post (7), and tighten using 3 flat washers (12), spring
washers (13) and nylon nuts (14), then insert the seat post (7) into the main frame (1). Line
up the holes and secure the seat in position with the knob (11). The correct height for the
seat can be adjusted after the bike is fully assembled.
8
