MAREDO ST Series - Page 6

6

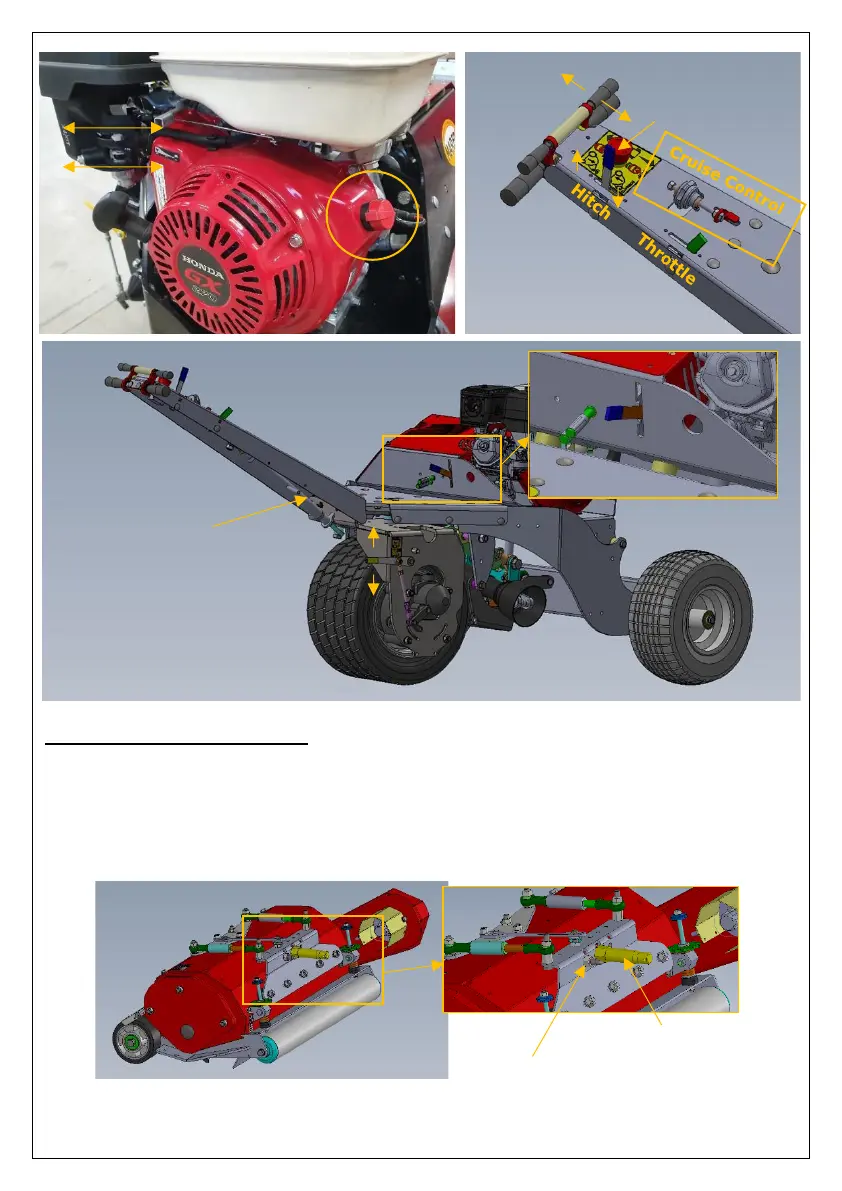

Figure 1: Engine and controls
5.2 ST head connection
5.2.1 After unpacking MAREDO ST heads (see Separate MAREDO ST
unpacking manual) they are placed on a MAREDO ST Trolley. Position the
MAREDO STrac 700 with the rear of the machine about 1 m/ 3’ in front of
the ST head which needs to be connected. The front of the ST head can
be recognized by the central connection pin which is located on the front.
Central connection pin
Anti-rotation bolt
Figure 2: ST head connection.
ON/OFF switch
Choke
ON OFF
ON OFF
Fuel valve
Forward < - > Reverse
+
-
Emergency stop
Handbrake
On
Off
PTO lever
-PTO always OFF
-PTO auto engage
-PTO always ON
Steering boom
height adjuster
