NOTE: Never connect the PTO to the ST head with the engine
running. The engine must be switched off during connection and
dis-connection of ST heads.
5.2.6 Close the rear ‘door’ bracket and re-insert the locking pin. Lock this
pin in place with the secure pin. Check all connections and then start the
engine and lift the ST head by moving the hitch control lever on the
steering boom backwards. The ST head is now connected to the STrac
700.
6.0 Adjustments
Several adjustments can be made on the STrac 700. The most important
adjustments are described under this chapter.

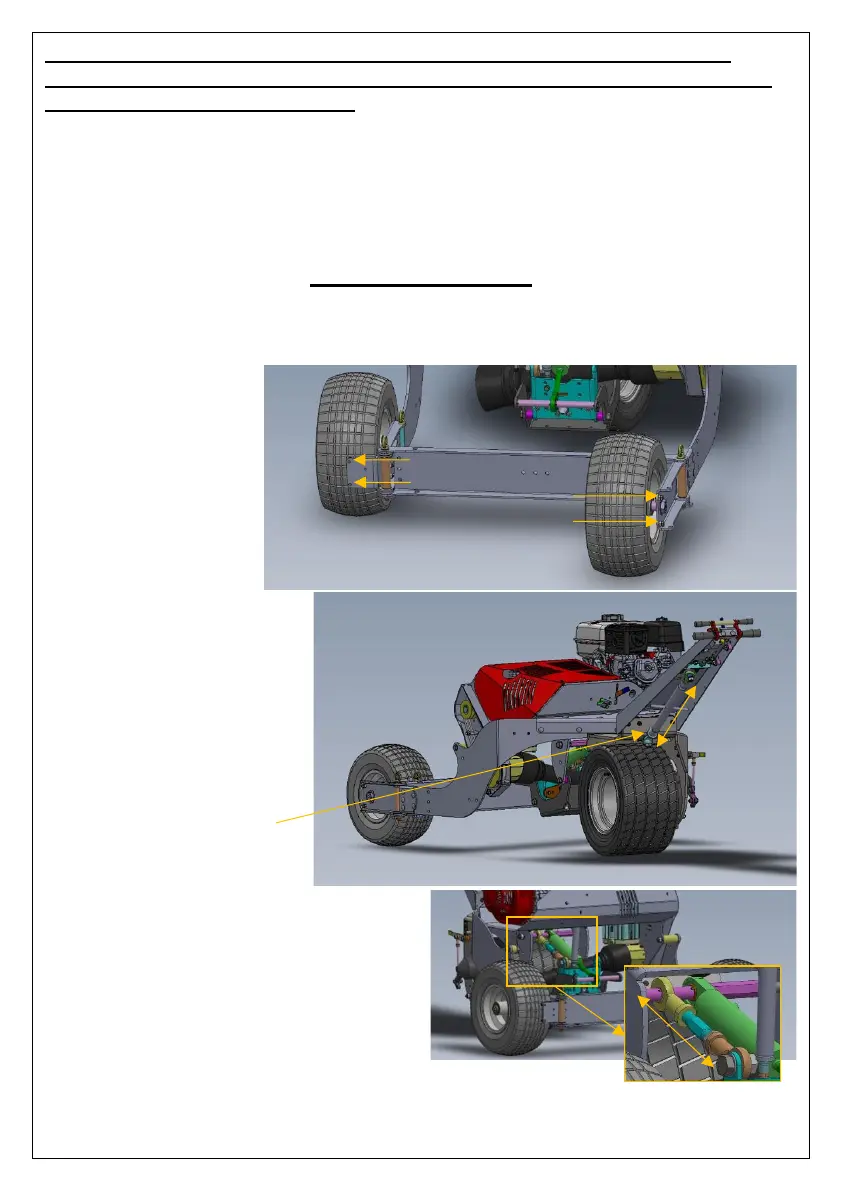

6.1 Rear wheel
adjustments:
The adjustable end
stop bolts can be
adjusted to make the
square wheel pins fit
without slack.
6.2 Steering boom
adjustments:
The height of the
handlebar can be adjusted
underneath the handlebar.
The push rod can be
shortened or extended by
turning it.
Once set at the correct
height, lock in position with
the locking nut.
6.3 Top link
adjustments:
Standard the hitch of the STrac 700 is
adjusted correct. If needed the top link
of the hitch can be adjusted to create
another pitch. Loosen the locking nut
and turn on the top link. Next tighten
the nut again.
