5.2.2 Place the rear wheels in the position beside the STrac 700 as shown
in the image below. To do this the square pin needs to be pulled out. Next
the wheels can be put in the position besides the machine and re-locked
in place by the square pin see figure 3 below.
5.2.3 Remove the round pin which locks the rear ‘door’ bracket in place.
Either the left or right pin can be removed. Next the rear ‘door’ bracket
can pivot open giving all access to the hydraulic hitch. See figure 4.
Square pin for locking wheel
Round pin for rear ‘door’ bracket

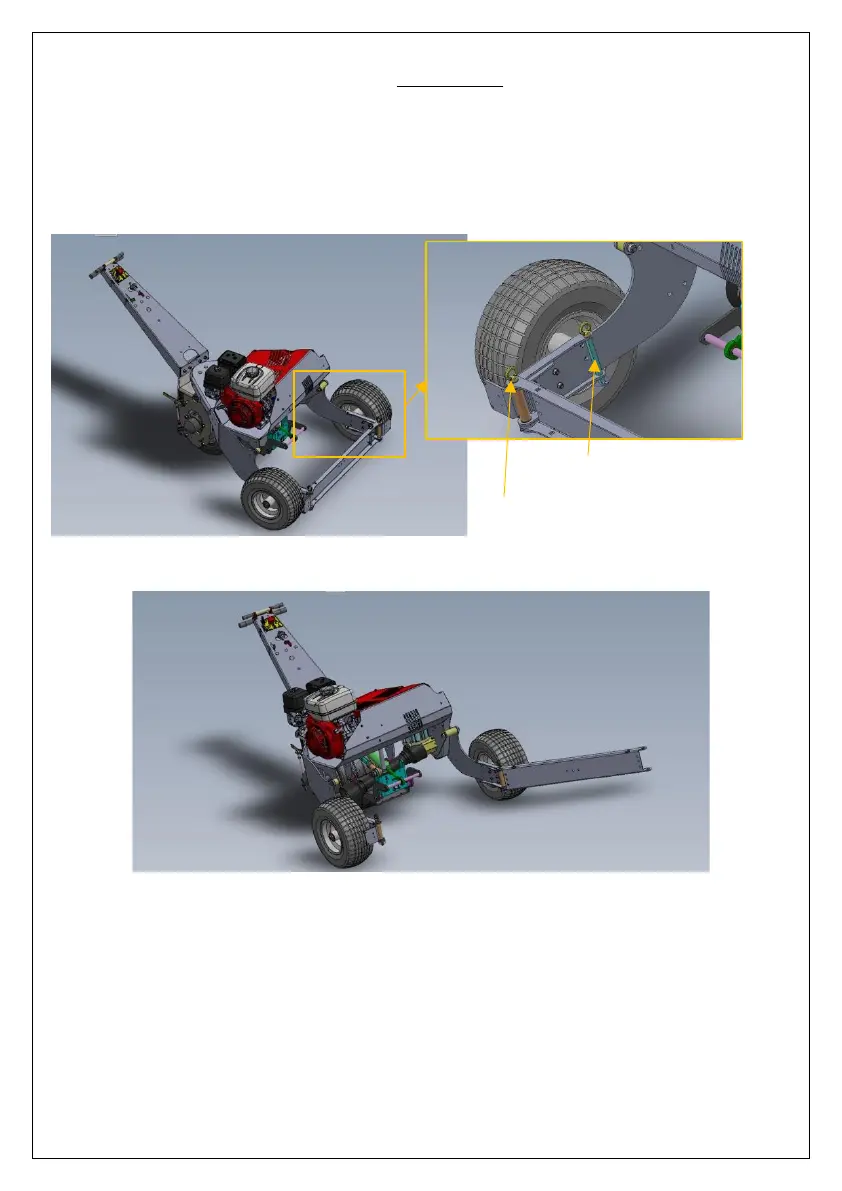

Figure 3: Rear wheel and rear ‘door’ bracket locking pins.
Figure 4: Rear ‘door’ bracket in open position
5.2.4 Push the hitch control lever on the steering boom forward till it
clicks in float position. This makes that the hydraulic hitch can be moved
up and down by hand. Roll the ST head on the MAREDO ST trolley
forwards towards the STrac 700. Slide the central pin of the ST head into
the hole of the hydraulic hitch of the STrac. When the pin is inserted all
the way, it can be locked in place with an R-pin.
5.2.5 Connect the PTO to the ST head. Make sure to have the push pin of
the PTO facing down to be able to reach it and push it in.
