Heating
element

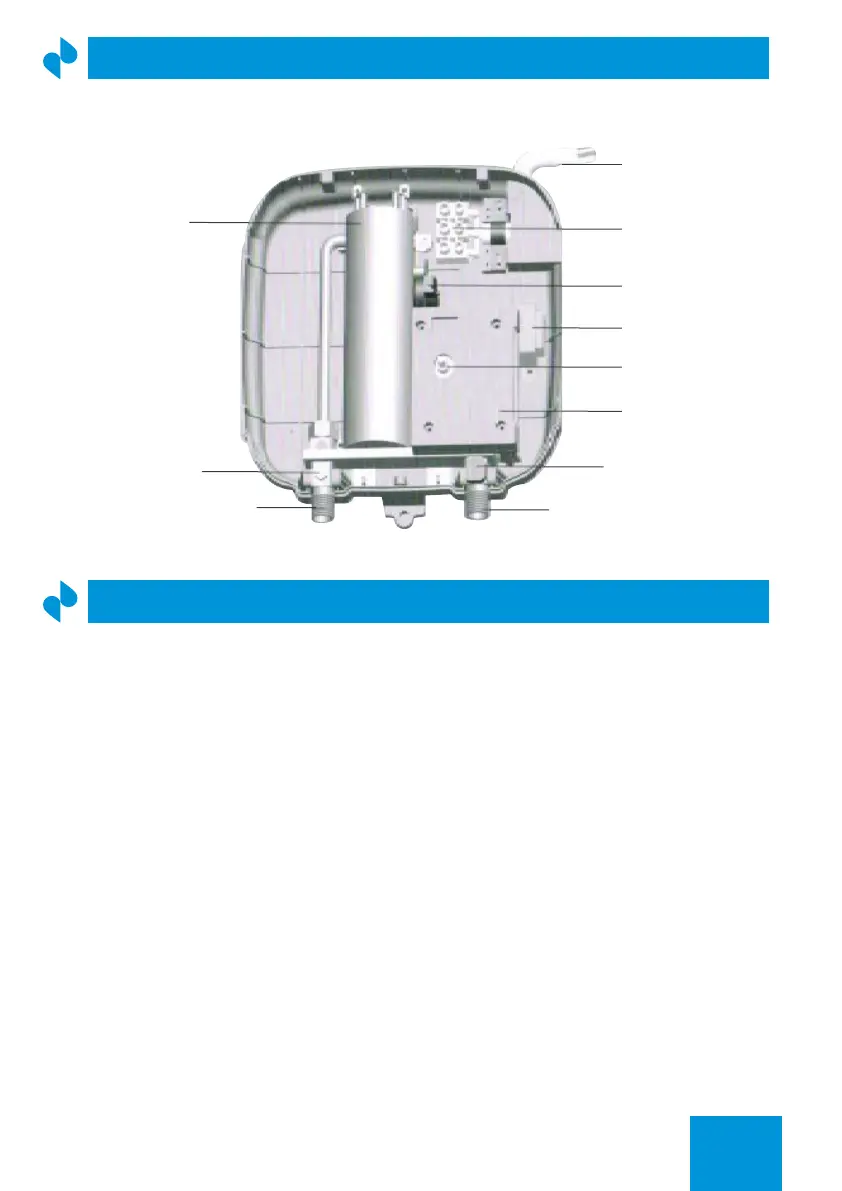

PRODUCT INNER STRUCTURE
07
Power cord
Terminal blocks
Thermostat
Transformer
Switch
PCB protector
cover
Flow sensor
Inlet
Outlet
Outlet temp.
sensor
INSTALLATION GUIDELINE
The installation must be in compliance wilh the National Electrical Code, your local
electrical and plumbing codes.
1. Make sure the appliance is intact, and lhe ttings are secure.
2. Please make sure the main power supply, water pressure, grounding condition,
eleclrical breaker and wire reach the standard of installation requirement.
3. The appliance must be connected to a properly grounded dedicated circuit of
proper voltage rating. Ground must be brought to the ·grounding bar' at the circuit
breaker panel.
4. This appliance MUST be permanently connected to the xed circuit breaker. If you
don't use the heater. please switch o the circuit breaker.
5. DO NOT inslall this appliance near tinder or a strong magnetic eld. The unit must
only be mounted in a VERTICAL position near the water ttings. Please electrify try
the machine after getting through wateiway.
