08
INSTALLATION METHOD
Fixed installation on the wall
Locate an appropriate place on a section or wall as above mentioned.

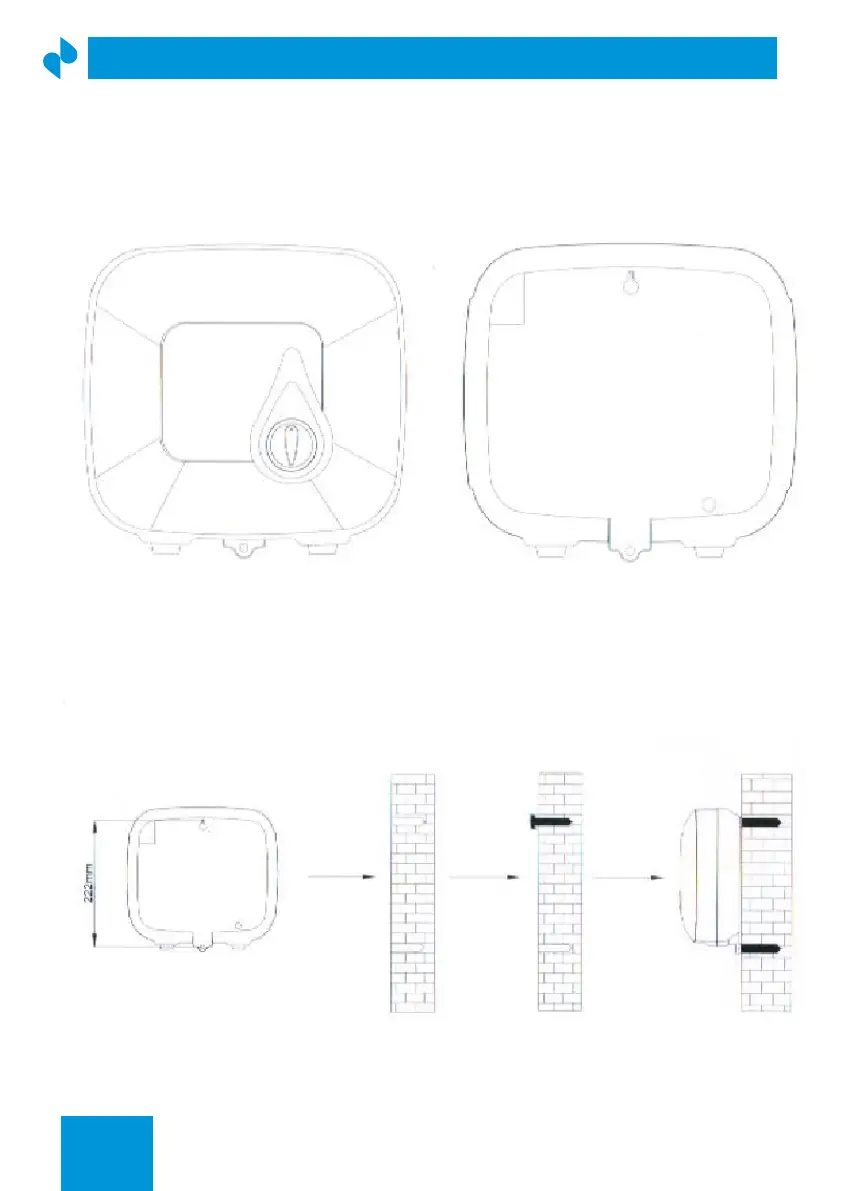

Fig. 01: Front and back of the appliance
Fig. 02: Mark two mounting holes on the wall according to the following picture, then
drill two holes of 6.00mm diameter. Put expansion bolts in the holes, screw self-tap-
ping-screw into expansion bolts, then x the water heater on the installation screws.
Fig. 01
Fig. 02
