Constructing Link
Communication Cables
Link communication cables can be constructed using a
six-conductor modular Cat. 5 cable with the appropriate plug
crimped on each end.
• Use a six-conductor cable (six-pin RJ-11 plug to eight-pin RJ-45
plug) when connecting the Nº433 to a Nº320S or Nº326S pream-
plifier. (Pins seven and eight are not used on the eight-pin RJ-45
plug.)
• Use a six-conductor cable (six-pin RJ-11 plug to six-pin RJ-11
plug) when connecting the Nº433 to other Mark Levinson
preamplifiers, including the Nº380, Nº380S and Nº32 Reference.
• Use a six-conductor cable (six-pin RJ-11 plug to eight-pin RJ-45
plug) when connecting the Nº433 to other Mark Levinson
power amplifiers. (Pins seven and eight are not used on the
eight-pin RJ-45 plug.)
Note
BEFORE making Link connections, refer to the appropriate documen-
tation for Link or communication port specifications for other
Mark Levinson components.

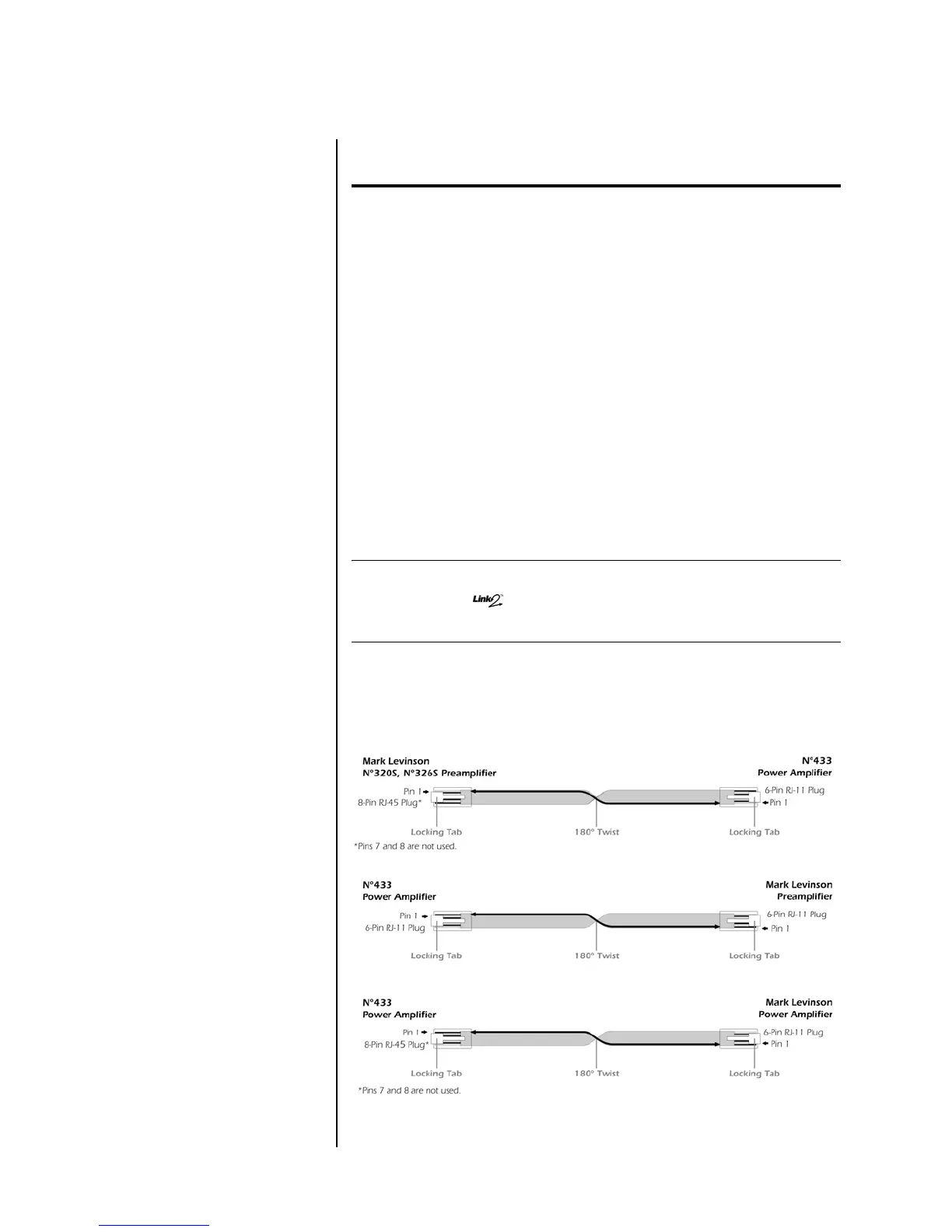

When linking components with constructed Link communication
cables, twist the cable 180
° as shown in the illustration below for a
straight-through (pin 1-to-pin 1) connection.
