21
www.markilux.com
3
7
19
20
21

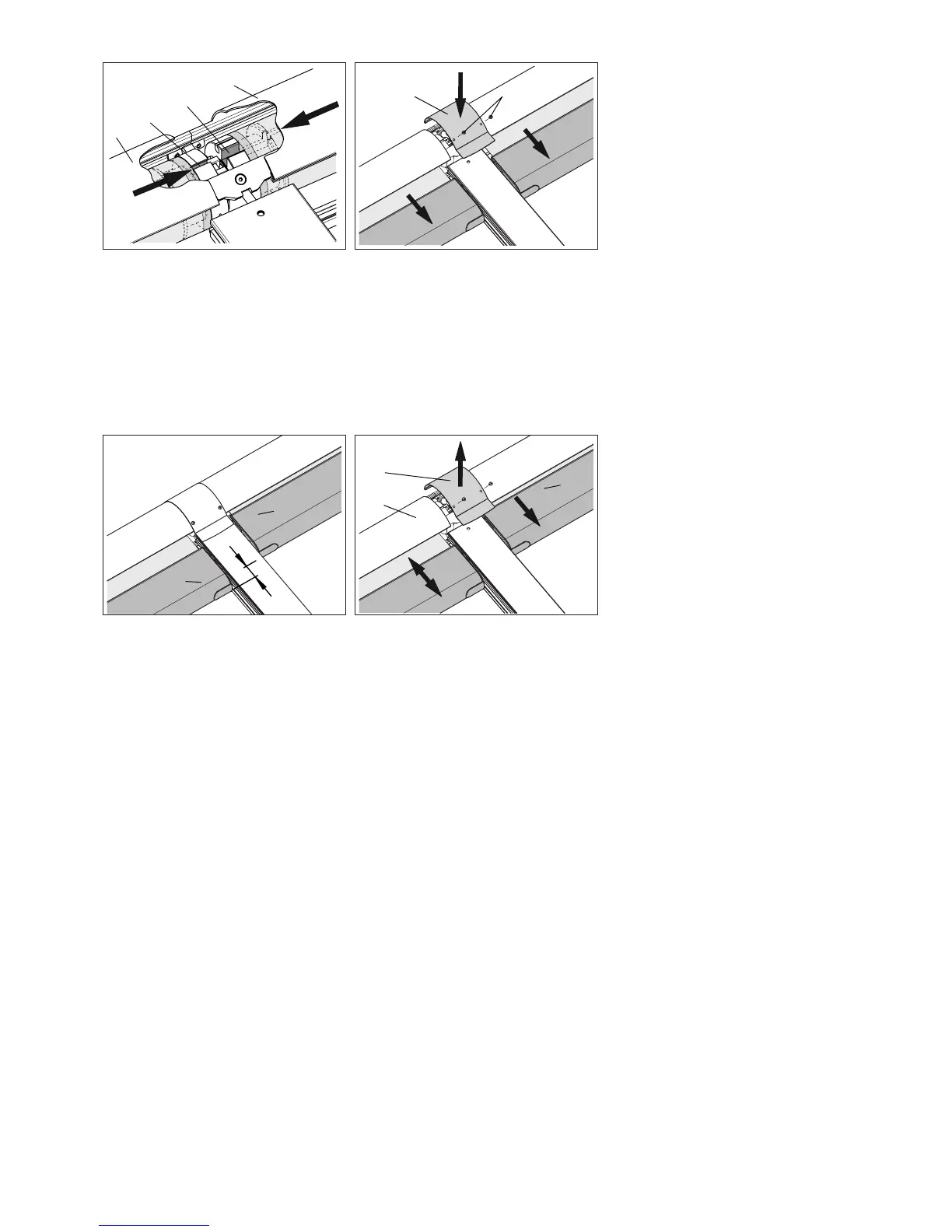

8a. Attention!
Awnings with tracx system: The
fabric roller grooves are concealed by
the cover. The fabric roller groove of the
coupled awning (7) is not aligned with
the drive belt groove. Turn the fabric
roller of the coupled awning (7) until the
notch in the coupling cap (19) is aligned
with the drive belt groove (20) of the
drive awning (3).
9. Attention! Prior to functional
testing, extend the awning until the
remaining of the four SW 5 threaded
pins can be xed in the fabric roller.
Subsequently attach the inspection
cover (2) with the raised head screws
(1).
10. For further xing steps refer to the
xing instructions for single units
(chapter 3, point 9.- 34.).
22
21
2
22
3
11. In case the front proles (21) and
(22) do not extend and retract uniformly
after the trial run of the awning, the
covers will require readjustment.
12. Readjustment of the covers:
Unscrew the middle inspection cover (2)
and loosen the four threaded pins in the
fabric roller of the awning to be coupled.
Align the front proles at the same
height: either by pulling the front prole
(22) of the awning to be coupled or by
using the drive of the drive awning (3).
Subsequently tighten the four SW 5
threaded pins and attach the inspection
cover (2).
