24
60982
Please note that the colors for the wires conform to the
European NEM standard. A cross reference of the Marklin color
scheme can be found following.

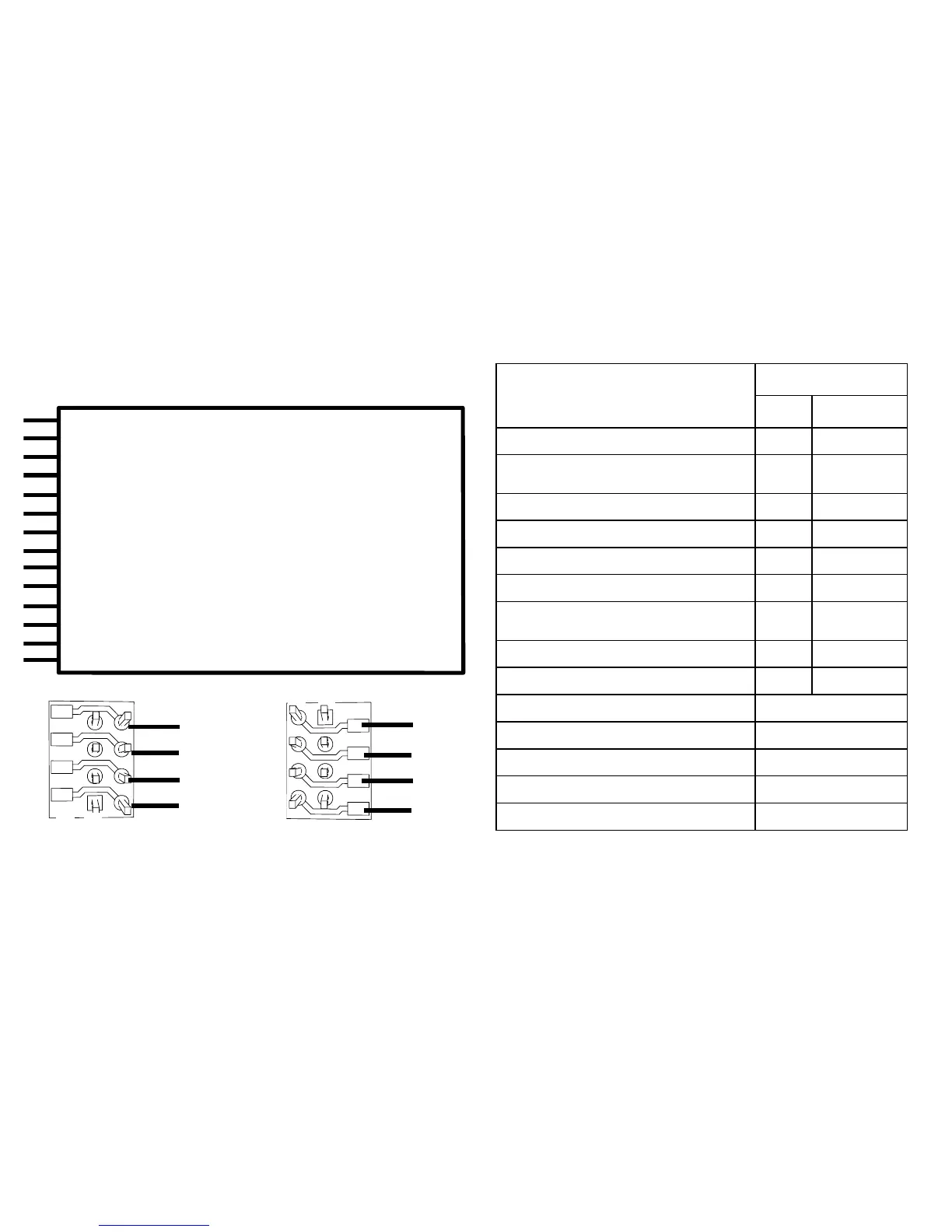

Cross Referencing the Colors for the Wires
1
1
8
8
Solder pads above
Solder pads below
8 rot
7 blau
6 weiß
5 grau
4 schwarz
3 grün
2 gelb
1 orange
Locomotives or powered rail cars with NEM 8-pin connector.
Solder the wires to the correct solder pads according to the diagram
above. Insert the plug into the connector while paying attention to
the positioning (Information on lighting see Dceoder 60972)
gray Motor Connection 2
black Conductor Current Pickup, Left
white Front Lights
green Aux 1 physical output
blue Common Wire for Lights
yellow Rear Lights
red Conductor Current Pickup, Right / Center
orange Motor Connection 1
violet Aux 2 physical output
blue orange marking IN1 (programmer)
blue yellow marking IN2 (programmer)
violet yellow marking Aux 3 physical output
violet white marking Aux 4 physical output
blue black marking GND Decoder ground (Pr0grammer)
Description Wire Color
NEM Märklin
Motor Connection 2
gray blue
Conductor Current Pickup, Track, Left (DC)
Outer (AC)
black brown
Front Lights
white gray
Aux 1 (physical output)
green brown/red
Common Wire for Lights
blue orange
Rear Lights
yellow yellow
Conductor Current Pickup,
Track, Right (DC) Center (AC)
red red
Motor Connection 1
orange green
Aux 2 (physical output)
violet
brown/green
IN1* (programmer) Blue / orange marking
IN2
*
(programmer) Blue / yellow marking
GND* Decoder ground (Programmer) Blue / black marking
Aux 3
(physical output)
Violet / yellow marking
Aux 4
(physical output) Violet / white marking
* Currently used only for the programmer.
