marklin S88 AC - Page 9

9

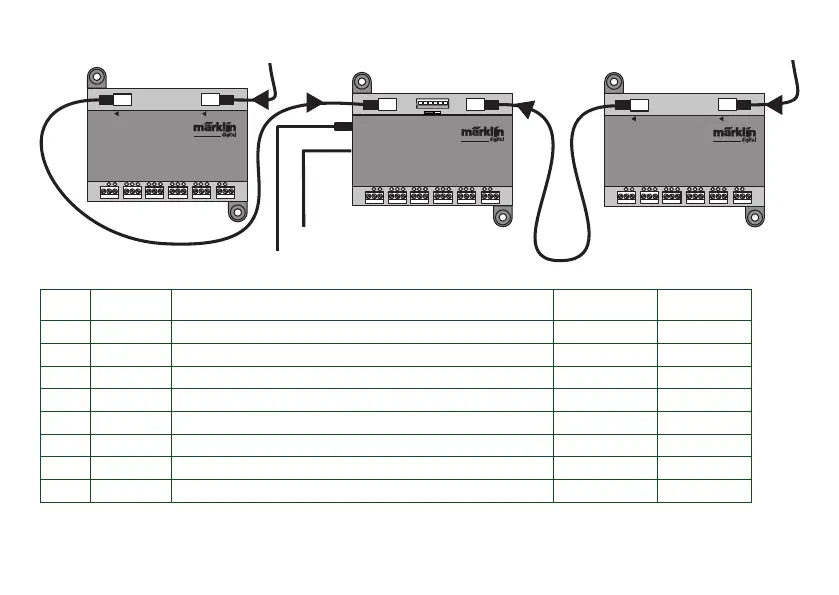

S88 Pin Name Description PIN RJ45
Color
EIA/TIA 568A
1 DATA Readout Data 2 green
2 GND Ground for signals and voltage supply 3 white/ orange
2 GND 5 white/blue
3 CLOCK Clock signal for the synchronization 4 blue
4 PS (LOAD) Load the data into the bus 6 orange
5 RESET Reset the input memory 7 white/brown
6 +5V/+12V Voltage supply for the feedback module 1 white/green
— SHIELD Cable shield, not connected — —
PIN Assignment for the RJ45 Plug
Märklin assumes no liability for joint use of Märklin products and products of other makes.
We therefore urgently recommend that you check the PIN assignments of the RJ45 plug you may be using.
1
2 3
4
5
6
7
8
T
T
9
10
11
12
13
14
15
16
Bus 1 Bus 2Bus 3
S88 Link
1
2 3
4
5
6
7
8
T
T
9
10
11
12
13
14
15
16
Bus Bus
S88 AC
1
2 3
4
5
6
7
8
T
T
9
10
11
12
13
14
15
16
Bus Bus
S88 AC
12V
5V
S88 AC/ DC
S88 AC/ DC
L88
Power Pack
Central Station CS 2 / CS 3
more S88 AC/ DC more S88 AC/ DC
