MARLO NXT2 Series - Page 22

19
MGT 2” 60M–600M NXT2 TWIN ALTERNATING
OPERATION

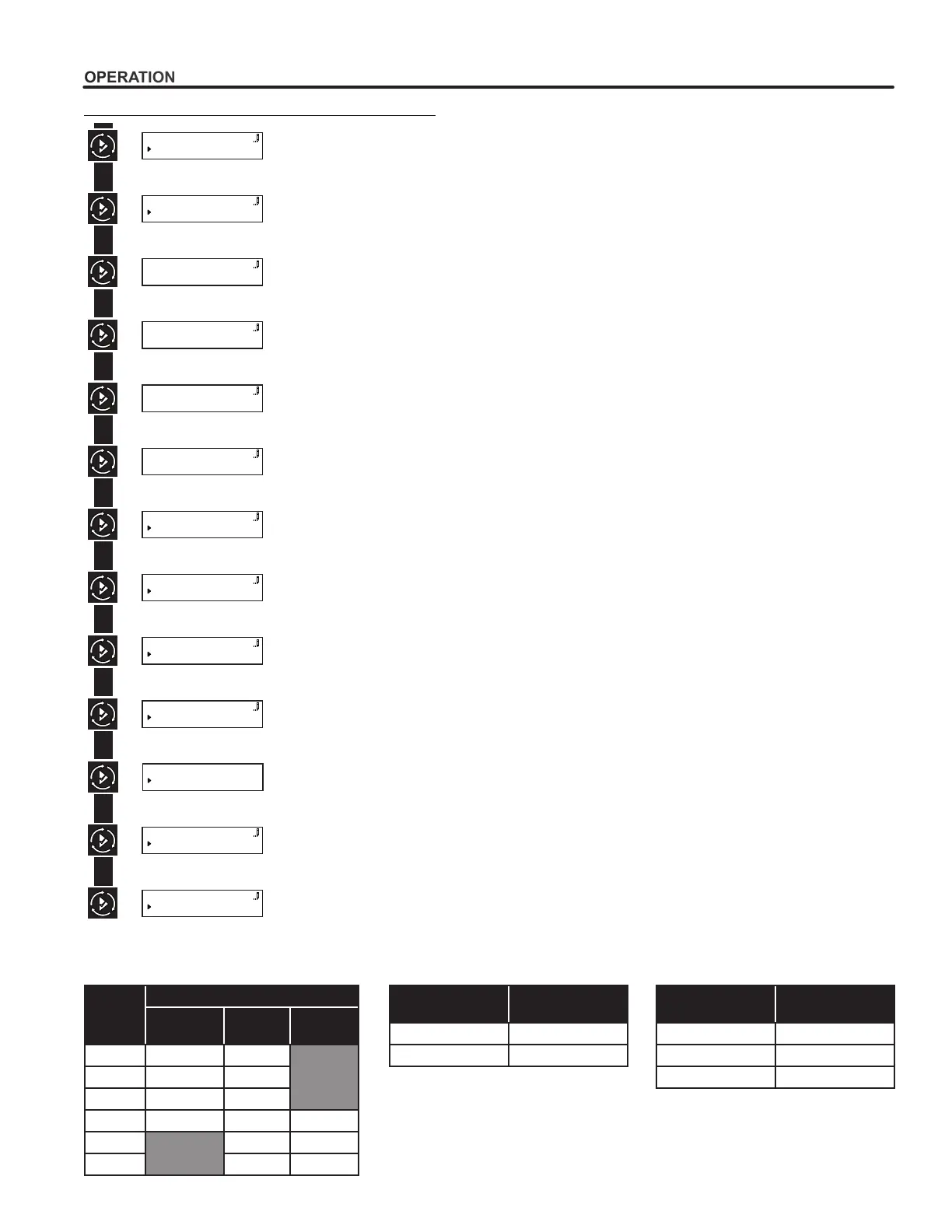

MASTER PROGRAMMING MODE FLOW CHART
Example:
Start Lock Window
End Lock Window
OFF
ON
LOCK WINDOW #1
Example:
Range: 0 - 240 M
10 M
BACKWASH
Example:
Range: 0 - 240 M
60 M
DRAW
Example:
Range: 0 - 240 M
10 M
RAPID RINSE
Example:
Range: 0 - 240 M
12 M
TANK REFILL
Example:
Range: 0 - 240 M
Example:
Range: 0.1 to 999.9 gpm/Lpm
0 M
PAUSE
Example:
Paddle (0.75”, 1”, 1.5”, 2”, 3”)
Turbine (0.75”, 1.25”, 1.5”)
Generic
1.00” PADDLE
1.00” TURBINE
0.75” TURBINE
METER TYPE
OFF
ON
CONTINUOUS FLOW DETECT
Example:
Off, Alarm Based, Cycle Based, Time Based,
Volume Based, Standby
OFF
ALARM BASED
STANDBY
AUXILIARY 1
Example:
Off, Alarm Based, Cycle Based, Time Based,
Volume Based, Standby
OFF
ALARM BASED
STANDBY
AUXILIARY 2
OFF
ON
SAVE AS NON-FACTORY
Example:
Off, Delayed, Enter Code, Time Based
OFF
DELAYED
TIME BASED
LOCK SETTINGS
ON
OFF
PUSH SETTINGS
END
PIPE
SIZE
(inches)
GENERIC FLOW METER SETTINGS
TEE
GALVANIZED
TEE
PVC
SADDLE
IRON
1 213 352
1-1/4 128 177
1-1/2 94 118
2 59 67 54
2-1/2 43 38
3 27 23
METER SIZE K-FACTOR
1 65
2 15
METER SIZE K-FACTOR
1-1/2 37
2 20
3 8
K-FACTOR TABLE - SIGNET 2536
(Pulses per Gallon)
AUTO TURBINE METER CLACK METER
