MARLO NXT2 Series - Meter Components

36
MGT 2” 60M–600M NXT2 TWIN ALTERNATING
MAINTENANCE

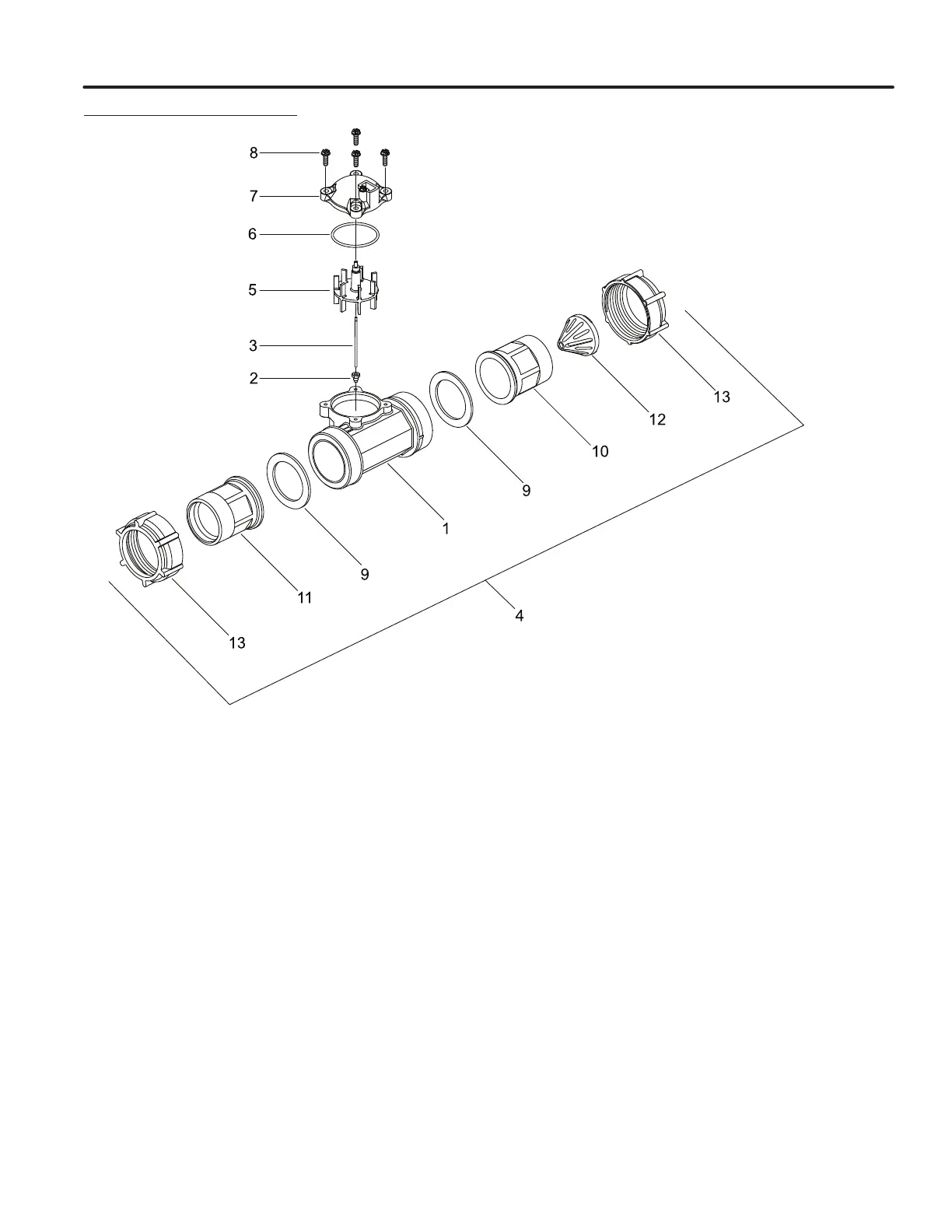

2” Plastic Paddle Meter
Item No. Quantity Part No. Description
1 ................... 1 .................... 17689 ............... Body, Meter, 2” Plastic w/Impeller Shaft Seat
2 ................... 1 .................... 15532 ............... Seat, Impeller Shaft, Hex
3 ................... 1 .................... 15432 ............... Shaft, Impeller, SS
4 ................... 1 .................... 60620 ............... Meter Assembly, 2” Plastic, Std
60621 ............... Meter Assembly, 2” Plastic, Ext
60625 ............... Meter Assembly, 2” Plastic, Electronic
5 ................... 1 .................... 15374 ............... Impeller Assy, 2” Meter
6 ................... 1 .................... 13847 ............... O-Ring, -137, Std/560CD, Meter
7 .......................................... 14716 ............... Meter Cap Assy, ET/NT
8 ................... 4 .................... 12473 ............... Screw, Hex Wsh, 10-24 x 5/8 18-8 S.S.
9 ................... 2 .................... 40666 ............... Seal, Face, 2”, Plastic Meter
10 ................. 1 .................... 17987-001 ........ Fitting, Nipple, 2”, Plastic, NPT, Machined, Flow Straightener
17987-101 ........ Fitting, Nipple, 2”, Plastic, BSP, Machined, Flow Straightener
11 ................. 1 .................... 17987-000 ........ Fitting, Nipple, 2”, Plastic, NPT
17987-100 ........ Fitting, Nipple, 2”, Plastic, BSP
12 ................. 1 .................... 14680 ............... Flow Straightener
13 ................. 2 .................... 17988 ............... Nut, 2” Meter
MGT 60M–600M NXT 2” METERED
MAINTENANCE
2” PLASTIC PADDLE METER
