MARLO NXT2 Series - Maintenance; Wiring Diagrams

27
MGT 2” 60M–600M NXT2 TWIN ALTERNATING
MAINTENANCE

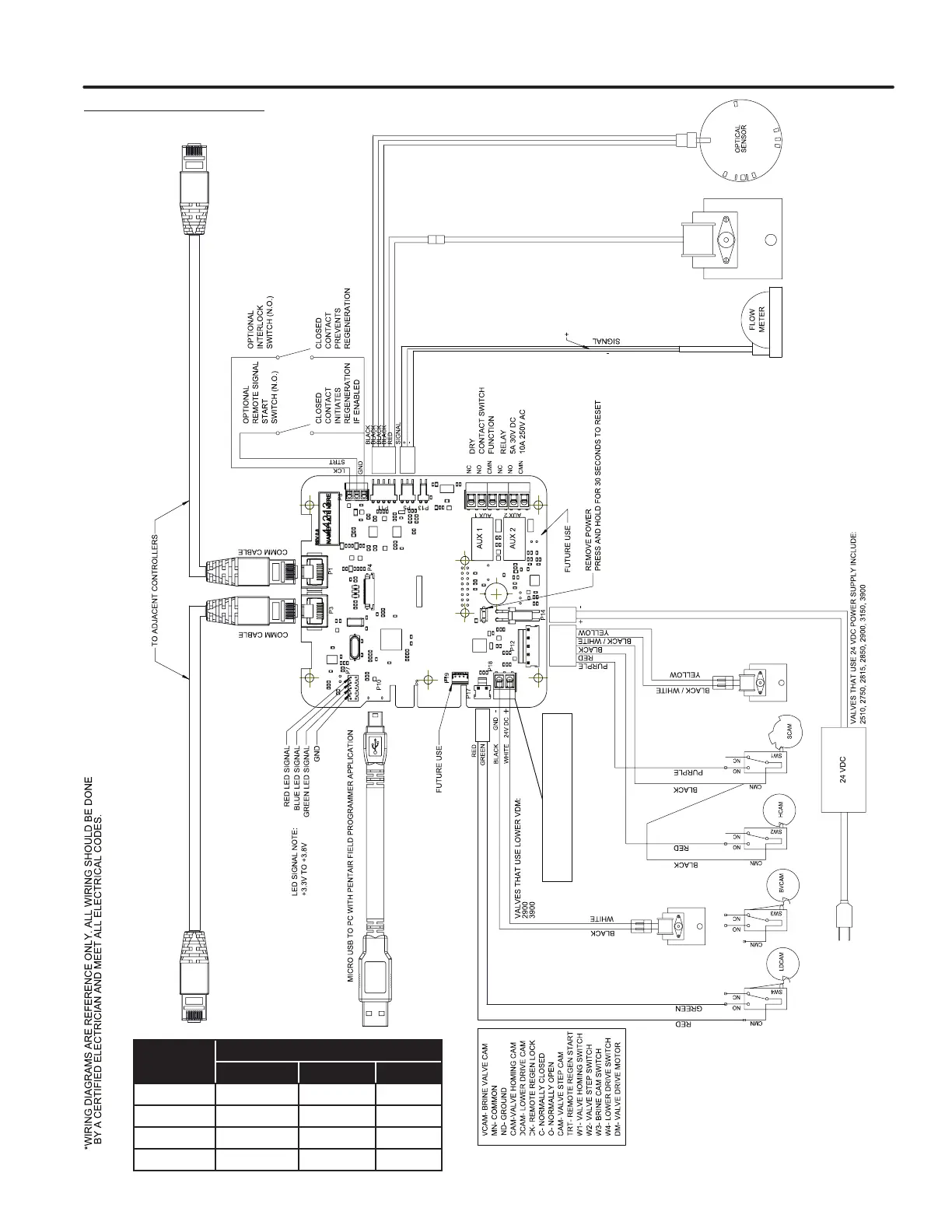

NXT2 WIRING DIAGRAM
VDM
VDM
VDM
IMPORTANT: DO NOT USE P18 TO POWER NON-PENTAIR DEVICES; USE AUX1 & AUX2 INSTEAD
FLOW METER (FM) WIRING
GROUND ( - ) POWER ( + ) SIGNAL
FLECK BLACK RED GREEN
SIGNET SHIELD BLACK RED
CLACK BLACK RED WHITE
AUTOTROL CLEAR RED BLACK
