MARLO NXT2 Series - Flow Diagrams

21

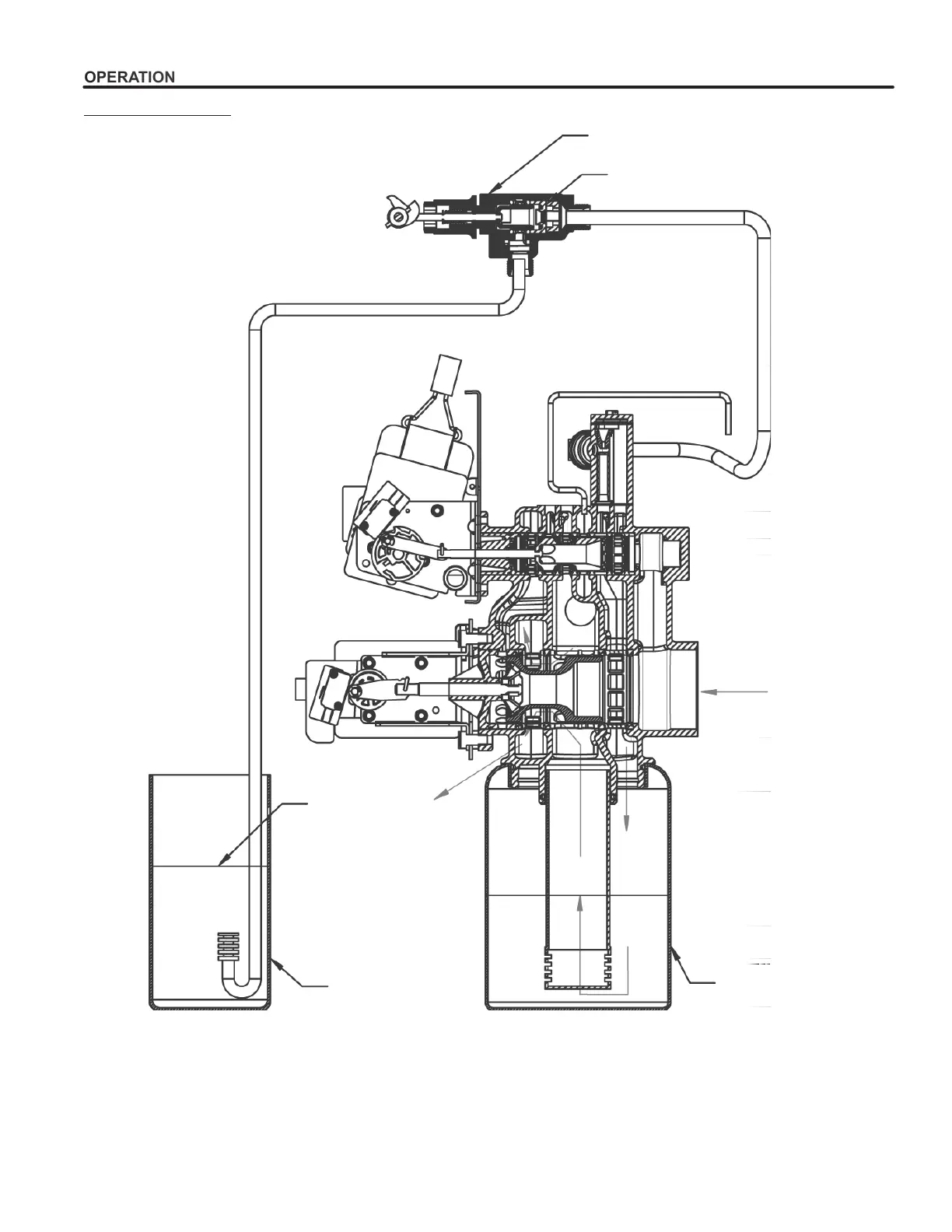

MGT 2” 60M–600M NXT2 TWIN ALTERNATING
OPERATION
SERVICE POSITION
BRINE VALVE
FLOW CONTROL
INLET
OUTLET
BRINE
TANK
RESIN
TANK
DRAIN
BRINE
LEVEL
DRAIN
Hard water enters unit at valve inlet and ows down thru the mineral in the mineral tank. Conditioned water enters
center tube thru the bottom distributor — then ows up thru the center tube — around the piston and out the side
outlet of the valve.
