38
MGT 2” 60M–600M NXT2 TWIN ALTERNATING
MAINTENANCE

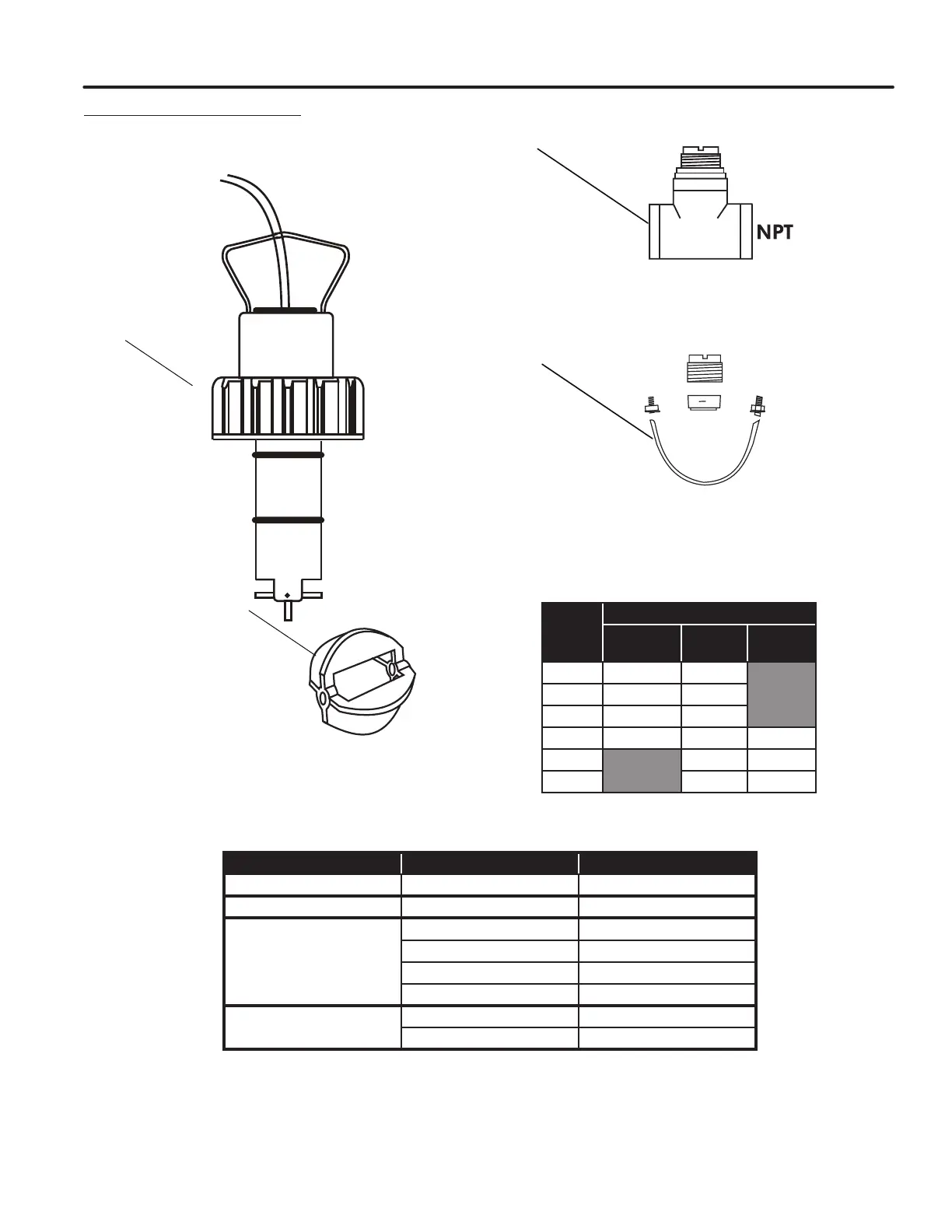

2536 SIGNET FLOW SENSOR
Galvanized Iron Threaded Tee
with NPT Threads
PVDF Insert
Iron Strap-on Saddle with
PVDF Insert
1
2
3
4
PIPE
SIZE
(inches)
GENERIC FLOW METER SETTINGS
TEE
GALVANIZED
TEE
PVC
SADDLE
IRON
1 213 352
1-1/4 128 177
1-1/2 94 118
2 59 67 54
2-1/2 43 38
3 27 23
K-FACTOR TABLE - SIGNET 2536
(Pulses per Gallon)
ITEM NUMBER PART NUMBER DESCRIPTION
1 A2296001 Flow Sensor
2 A2456004 Rotor/Paddle
3
A2294012 Tee Install 1 Galv
A2294002 Tee Install 1-1/4 Galv
A2294003 Tee Install 1-1/2 Galv
A2294004 Tee Install 2 Galv
4
A2295001 Saddle 2-1/2 Iron
A2295002 Saddle 3 Iron
