40
MGT 2” 60M–600M NXT2 TWIN ALTERNATING
MAINTENANCE

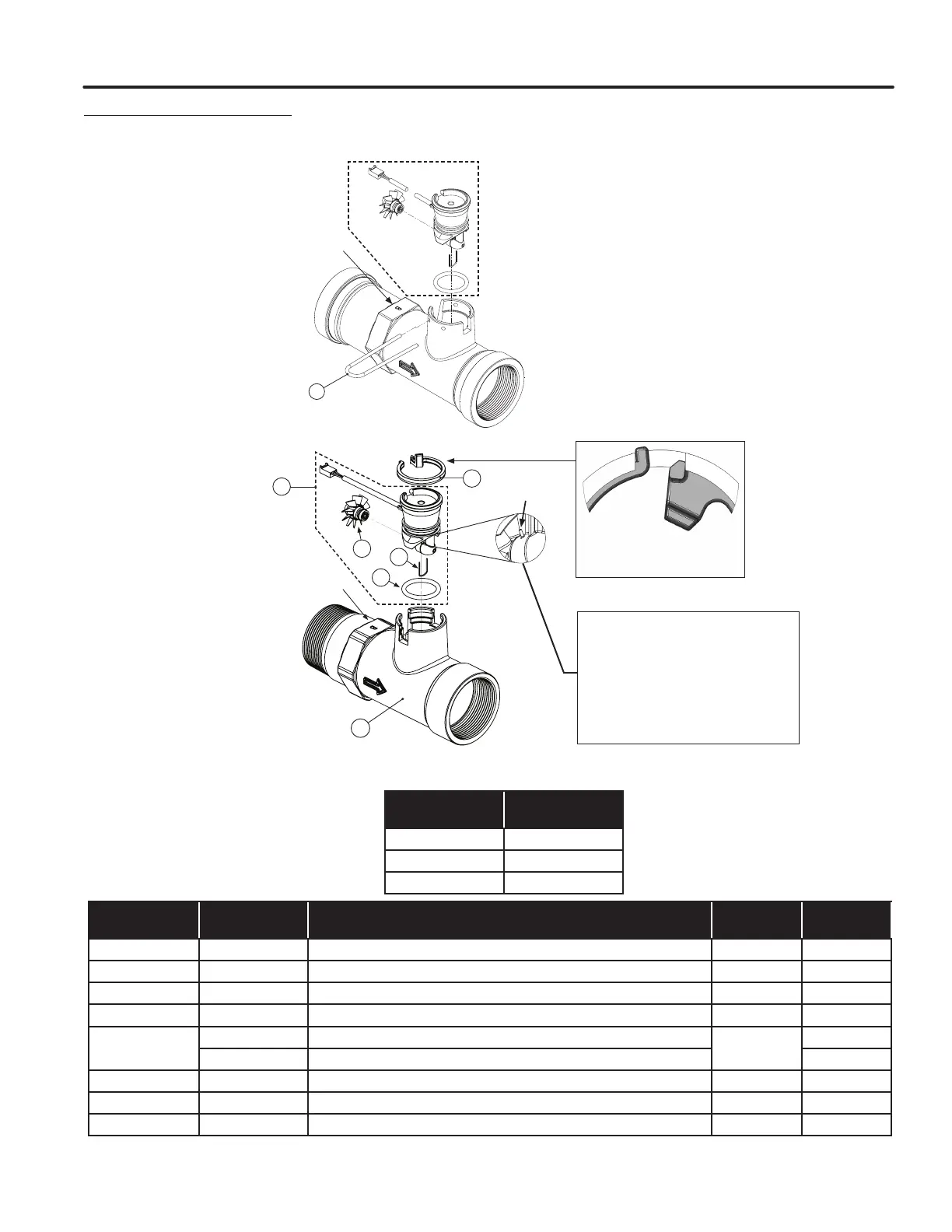

CLACK 2” TURBINE METER
METER SIZE K-FACTOR
1-1/2 37
2 20
3 8
K-FACTOR TABLE - CLACK METER
(Pulses per Gallon)
B indicates BSPT
N indicates NPT
6a
1
2
3
B indicates BSPT
N indicates NPT
5
4
6b
Service or replace the turbine by:
1. Removing bend from the two exposed tips
of the retaining clip and remove clip.
2. Service or replace the V3118-03 WS1.5/2
Turbine Assembly and place back on the
turbine shaft.
3. Insert the V3501 WS1.5/2 Turbine Clip and
rebend the exposed tips.
The V3118-03 has a groove to line up with the
V3501 WS1.5/2 Turbine Clip.
B indicates BSPT
N indicates NPT
6a
1
2
3
B indicates BSPT
N indicates NPT
5
4
6b
Service or replace the turbine by:
1. Removing bend from the two exposed tips
of the retaining clip and remove clip.
2. Service or replace the V3118-03 WS1.5/2
Turbine Assembly and place back on the
turbine shaft.
3. Insert the V3501 WS1.5/2 Turbine Clip and
rebend the exposed tips.
The V3118-03 has a groove to line up with the
V3501 WS1.5/2 Turbine Clip.
ITEM NUMBER
PART NUMBER
DESCRIPTION QUANTITY CLACK
PART NUMBER
1 A2360061 WS Remote Meter Asy 15 Ft Cord (includes V3118-03, V3501 and V3105) 1 V3221
2 A2100029 WS1.5/2 Turbine Asy 1 V3118-03
3 A2077178 O-Ring 215 1 V3105
4 WS1.5/2 Turbine Clip 1 V3501
5
WS2 Meter NPT Housing
1
V3222-01
WS2 Meter BSPT Housing V3222BSPT-01
6a A2411018 WS2 Meter Clip 1 V3223
6b A2411021 WS1.5/2/3 Meter Retaining Clip 1 V3632*
NOT SHOWN WS2 Flow Straightener (located inside meter housing) 1 V3488
V3050 WS2 2” Meter NPT Assembly and V3050BSPT WS2 2” Meter BSPT Assembly
* In 2008 a modification was made to Meter Housings to use V3632 WS1.5/2/3 Meter Retaining Clip. Do not use V3632 on old style housings
which have holes through the castings to accept the U-shaped V3223 WS2 Meter Clip.
Typical meter retaining clip installation.
Ensure clip is fully engaged in groove
and tabs positioned in slot as shown.
B indicates BSPT
N indicates NPT
5
1
2
3
4
6
Bend clip
after install
Area of
detail
