3 Evaporator

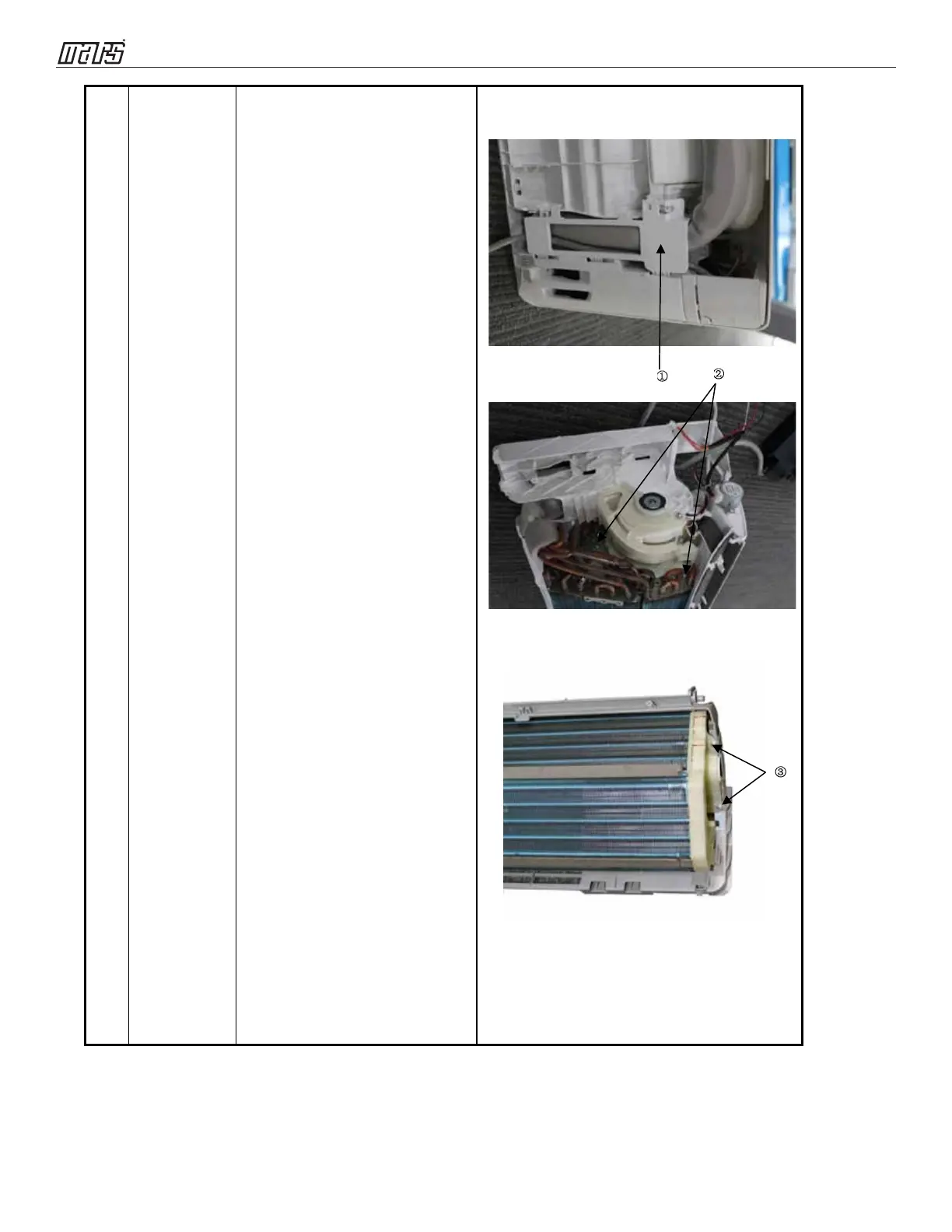

How to remove the evaporator.
1) After removing the
electrical parts from procedure
2, disassemble the pipe holder
at the rear side of the unit.
.
2) Remove the screw on the
evaporator at the fixed plate.
3) Remove the two screws
on the evaporator at the base
bearing side.
4) Then pull out the
evaporator.
③
①
②
