8.2.2 Use RS-422 Connection

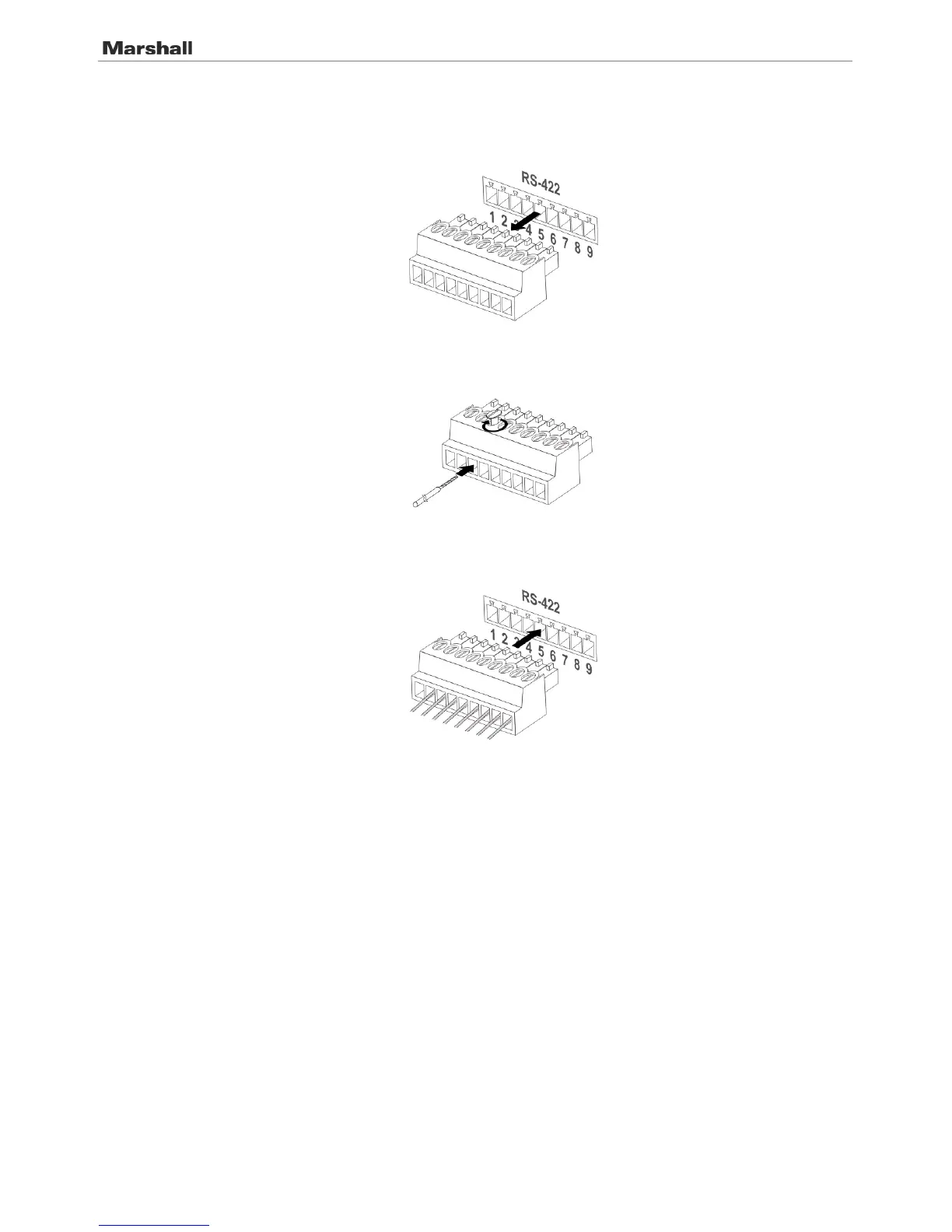

1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow in the figure
below
2. Peel off a section of copper wire (AWG Nos.28 to 18) and insert it into the connector hole; then use flat
screw driver to fix it
3. Insert the wired RS-422 connector back to the camera. Now the connection is completed
Note: When RS-422 connection is being used, do not use RS-232C connection.
