CV620-IP / CV620-IPW
7 User Manual v.1
Chapter 4. Instruction for installation
4.1 Preparation before installation
Installation and connection of CV620-IPW HD camera requires special skills. To install by yourself,
please follow necessary steps, ensure steady and tight installation of the device, and pay attention to
your safety to avoid any accident.
4.1.1 Ensure the safety of the installation environment. Please do not install the device on
unstable ceiling or in a place where the device is in danger of falling to avoid any
accident.
4.1.2 Please check whether accessories in the box are complete or not. Please contact the
supplier for any shortage, and make sure to keep the accessories in the box intact.
4.1.3 Please choose a proper place for installation of CV620-IPW in advance. Please
determine an installation place according to the following requirements
4.1.1.1 Confirm the position for the object to be captured.
4.1.1.2 Confirm whether the CV620-IPW is set at a proper distance from other light sources.
4.2 Instruction for installation
4.2.1 I would like to install CV620-IPW on the desk
4.2.1.1 Precautions for installation
Please install the machine on a flat desk

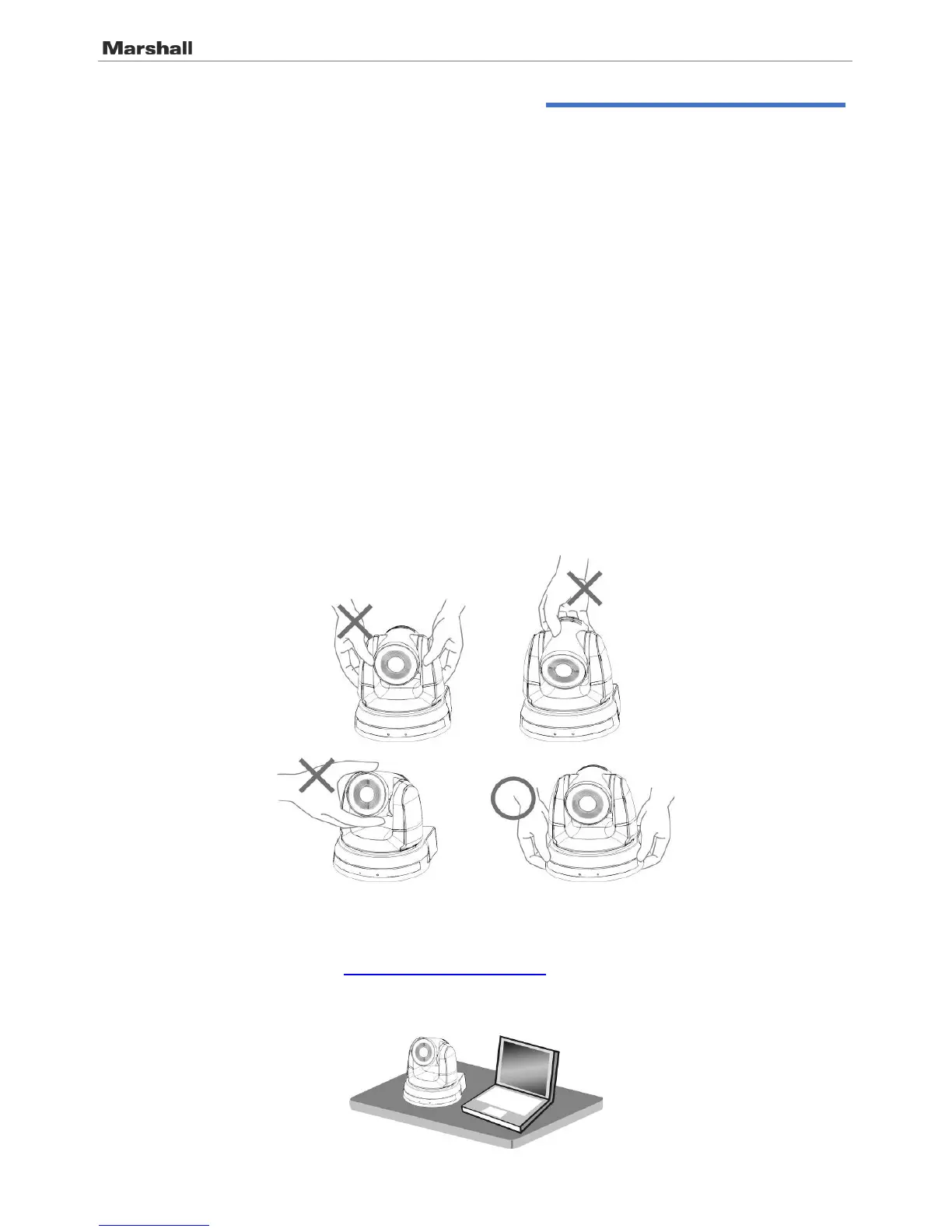

Do not grab the camera head by hand when handling the device
Do not rotate the camera head by hand. Improper rotation may result in breakdown of the camera
4.2.1.2
Installation steps
1. Please adjust DIP switch at first prior to installation
Note: Please refer to Chapter 8 DIP Switch Setting for the relevant descriptions on DIP
switch.
2. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of
the machine
