Chapter 3. Product Overview
3.1 Overview
1. Camera lens
2. Power LED indicator
3. Standby LED indicator
4. Audio In
5. USB port (for FW update)
6. Power input
7. Network port (supported for PoE)
8. HDMI Output
9. 3G-SDI
10. OUTPUT Switch
11. IR SELECT
12. RS-232 output
13. RS-232 input
14. RS-422 Connection
15. Camera Address Selectors
16. SYSTEM Switch
3.2 Description of LED indicator
Status
Power
Standby
Startup in progress Green light Orange light
In use
Green light
No indicator
In standby mode No indicator Orange light
Signal from the remote
control is received
Green light flickers; it
flickers every 0.5 second
No indicator

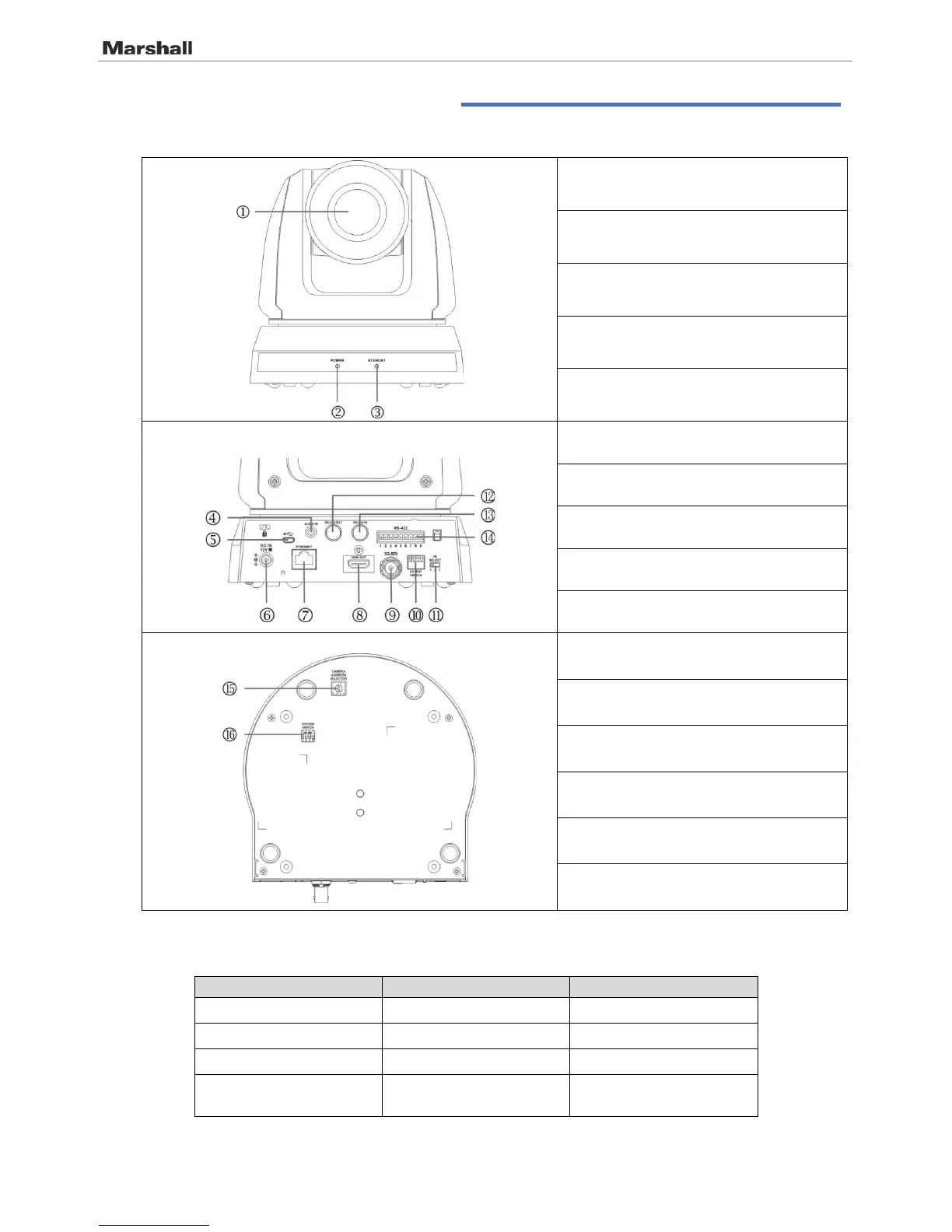

Front View
Back View
Bottom
