CV620-IP / CV620-IPW
9 User Manual v.1

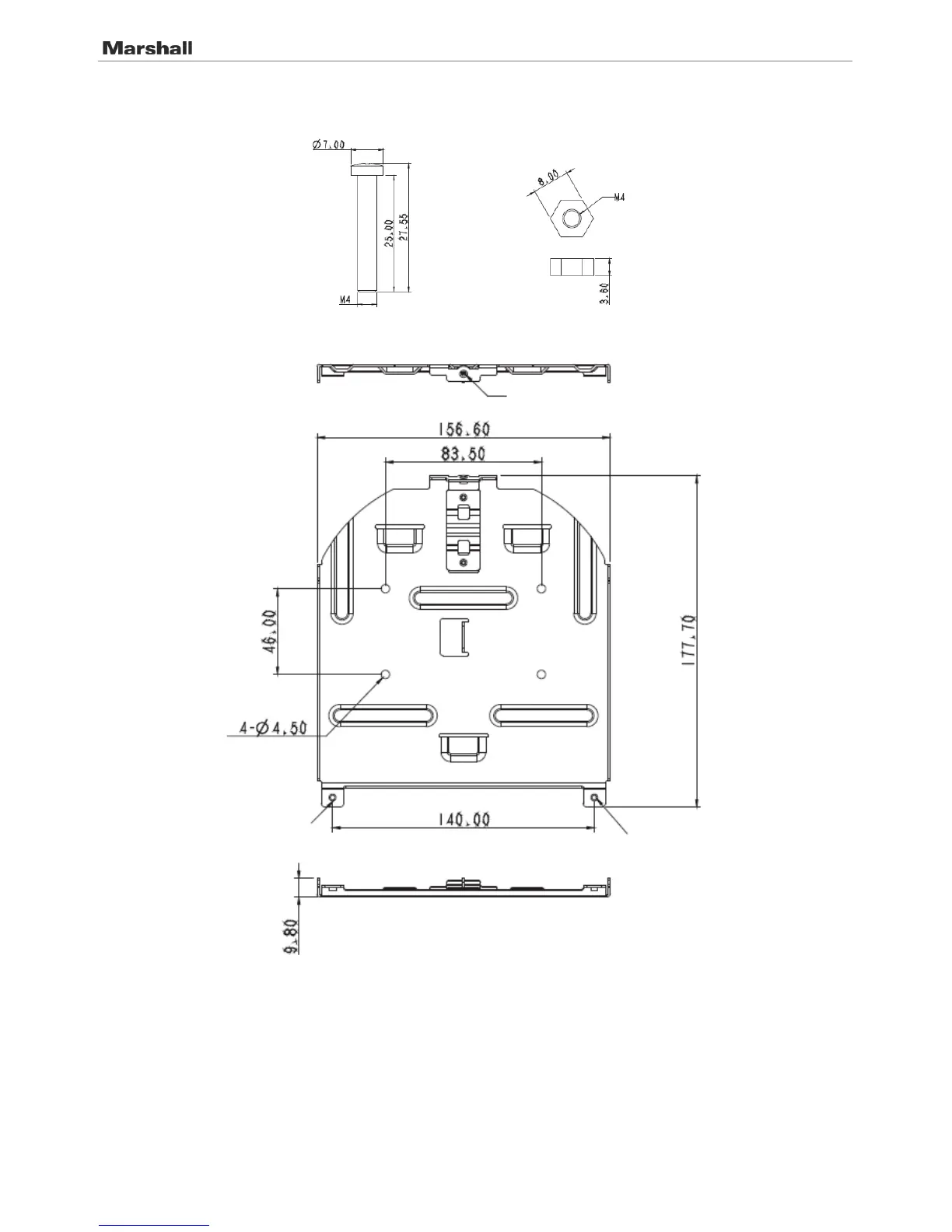

4.2.2.4 Size Diagram
1. Metal plate B - ceiling side
Metal plate B locking
screw
Metal plate B locking
bolt
Metal plate B - ceiling side
M3 threaded hole
M3 threaded hole
M3 threaded hole
