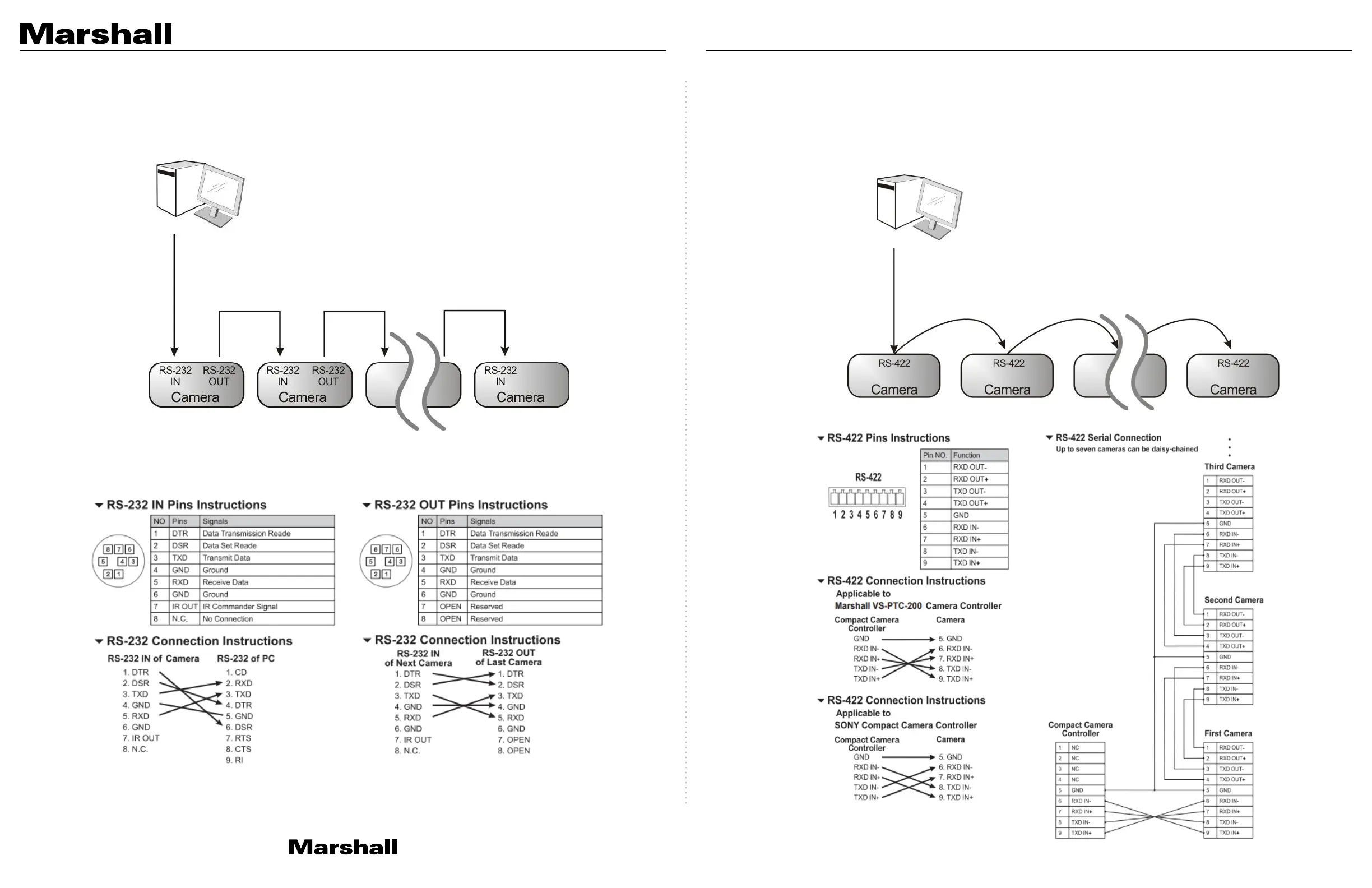

4.3 Connecting devices
4.3.1 Connecting RS-232
With RS-232 in/out, at most 7 Marshall PTZ cameras can be connected.
 RS-232 pins definition instructions
18
4.3 Connecting devices
4.3.1 Connecting RS-232
With RS-232 in/out, at most 7 Marshall PTZ cameras can be connected.
 RS-232 pins definition instructions
19
4.3.2 Connecting RS-422
With RS-422, at most 7 Marshall PTZ cameras can be connected.
<Note> When RS-422 connection is being used, do not use RS-232 connection.
